Summary of Contents for Intel NUC7i5BNHXF

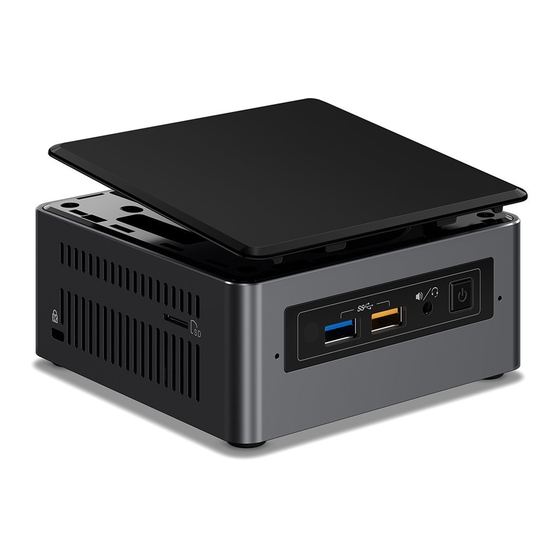

- Page 1 User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Intel® NUC 7 Home, a Mini PC with Windows® 10 – NUC7i3BNHXF Intel® NUC 7 Home, a Mini PC with Windows® 10 – NUC7i5BNHXF Intel® NUC 7 Enthusiast, a Mini PC with Windows® 10 – NUC7i7BNHXG...
-
Page 2: Before You Begin
If such a station isn’t available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: •... -
Page 3: Open The Chassis
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG This guide tells you how to: Upgrade system memory • Change/install an M.2 SSD • Change/install a 2.5-inch drive • Use a VESA mount bracket • Connect power • Set up Microsoft® Windows® 10 •... -
Page 4: Upgrade System Memory
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Upgrade System Memory The Intel NUC Kits NUC7i3BNHXF, NUC7i5BNHXF, and NUC7i7BNHXG have two 260-pin DDR4 SO- DIMM sockets. Pre-installed memory NUC7i3BNHXF One 4GB memory module NUC7i5BNHXF One 4GB memory module NUC7i7BNHXG One 8GB memory module To upgrade memory, be sure to select memory modules that meet these requirements: •... - Page 5 4. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets. Replace the computer’s cover and reconnect the power cord. Change an M.2 SSD or Intel® Optane™ Memory Module The Intel NUC Kits NUC7i3BNHXF, NUC7i5BNHXF, and NUC7i7BNHXG support either an 80mm or 42mm SSD. Pre-installed M.2...
- Page 6 5. Secure the card to the standoff with the small silver screw (C). Change a 2.5” SSD or Hard Drive The Intel NUC Kits NUC7i3BNHX1, NUC7i5BNHX1, and NUC7i7BNHX1 support an additional 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD).
- Page 7 User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG 2. Remove the pre-installed drive from the drive bay. 3. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).
-
Page 8: Close The Chassis
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. Attach and Use the VESA Bracket (Optional) Follow these instructions to attach and use the VESA mount bracket: 1. - Page 9 User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket.
-
Page 10: Connect Power
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Connect Power Country-specific power plug attachments are included in the box. 1. Choose the attachment for your region. Plug Code Country United States United Kingdom European Union Australia Plug Code Country China India South Korea... - Page 11 User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG 2. Slide the attachment (B) onto the power plug, locking it into place (A). 3. Connect AC power.
-
Page 12: Set Up Microsoft Windows
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Set Up Microsoft® Windows® 10 Microsoft Windows 10 is already installed on the Intel NUC. The first time you start the computer, you’re guided through the Windows 10 setup steps, including: • Selecting your region and language. -
Page 13: Operating System Recovery
User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG Operating System Recovery There’s a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset, or Restore Windows. Here is what each of these actions do: Refresh If your PC isn't performing as well as it once did, and you don't know why, you can refresh your PC.
