Summary of Contents for Intel NUC7i3DNHNC

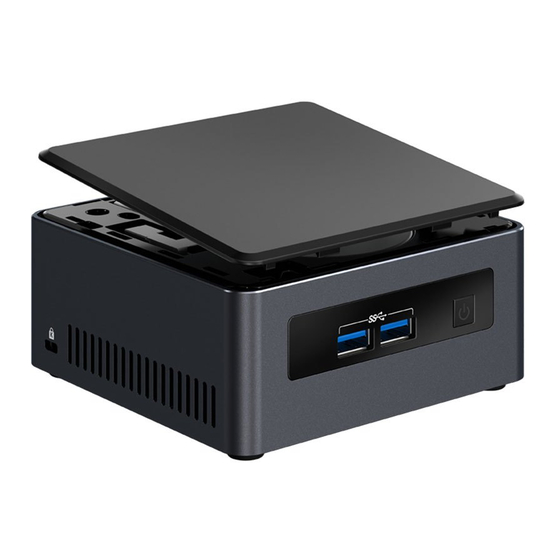

- Page 1 User Guide for NUC7i3DNHNC Intel® NUC7 Business, a Mini PC with Windows® 10 – NUC7i3DNHNC User Guide...
-
Page 2: Before You Begin
Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: ... -
Page 3: Open The Chassis
Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. Upgrade System Memory The Intel NUC Kits NUC7i3DNHNC have two 260-pin DDR4 SO-DIMM sockets, pre-installed with one 4GB DDR4 2133 MHz SO-DIMM. - Page 4 User Guide for NUC7i3DNHNC NOTE If you plan to install only one memory module, install it in the lower memory socket. To upgrade or add memory, follow these steps: 1. Observe the precautions in "Before You Begin" on page 2.
- Page 5 5. Secure the card to the standoff with the small silver screw (C). Changing a 2.5” SSD or Hard Drive The Intel NUC Kits NUC7i3DNHNC support an additional 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD), pre-installed with one 1TB HDD.
- Page 6 User Guide for NUC7i3DNHNC Find compatible 2.5” drives in the Intel Product Compatibility Tool. 1. Unscrew the four screws holding the current drive in the bay. 2. Remove the pre-installed drive from the drive bay. 3. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).
-
Page 7: Close The Chassis
User Guide for NUC7i3DNHNC Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. Attach and Use the VESA Bracket (Optional) Follow these instructions to attach and use the VESA mount bracket: 1. - Page 8 User Guide for NUC7i3DNHNC 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket.
-
Page 9: Connect Power
User Guide for NUC7i3DNHNC Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes Power cord type BOXNUC7i3DNHNC No power cord included. An AC power cord needs to be purchased separately. -
Page 10: Install The Latest Device Drivers And Software
HDMI Firmware Operating System Recovery There’s a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset, or Restore Windows. Here is what each of these actions do: Refresh If your PC isn't performing as well as it once did, and you don't know why, you can refresh your PC. - Page 11 User Guide for NUC7i3DNHNC...
- Page 12 User Guide for NUC7i3DNHNC Caution - Before performing a Refresh or Reset: Make sure to back up all personal data to external storage. Remove SD card from the card slot, if one is inserted. To access the recovery media:...
