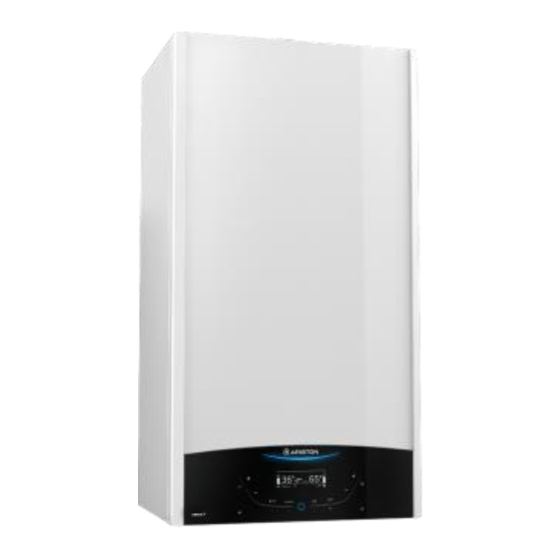

Ariston ALTEAS ONE Training Manual
Ariston ALTEAS ONE Training Manual

Ariston ALTEAS ONE Training Manual

Wall hang boilers, condensation compact
Table of Contents

Advertisement

Quick Links

TRAINING
MANUAL
FAMILY: Wall hang boilers
UNIT: Condensation Compact
MODELS: ALTEAS ONE
GENUS ONE
RELEASE:
1V0
16.05.2017

Advertisement

Table of Contents
loading

Summary of Contents for Ariston ALTEAS ONE

  • Page 1 TRAINING MANUAL FAMILY: Wall hang boilers UNIT: Condensation Compact MODELS: ALTEAS ONE GENUS ONE RELEASE: 16.05.2017...
  • Page 2 Training manual ALTEAS & GENUS ONE UPDATE 16/05/2017 Document creation VERSION DATE NAME MODIFICATIONS Page. 2 of 88 Version 2V2.
  • Page 3: Table Of Contents

    Training manual ALTEAS & GENUS ONE INDEX GENERAL INFORMATION ..........................5 SIZES AND DIMENSIONS ..........................5 DETAILED DESCRIPTION – COMBI VERSION ................... 6 DETAILED DESCRIPTION – SYSTEM VERSION ..................7 HYDRAULIC SCHEME ............................ 8 LABELS POSITION ............................9 CONTROL PANEL DESCRIPTION ......................... 9 DISPLAY .................................
  • Page 4 ELECTRIC DIAGRAM ..........................59 PERIPHERALS CONNECTION ........................60 DECUPLING CLIP-IN FOR SOLAR MANAGER AND HYBRID CONNECTION ........61 WI-FI (ONLY ALTEAS ONE AND GENUS ONE CHINA) ................62 CONNECTION TO INTERNET ........................62 INTERNET SERVICES ACTIVATION ......................67 Remote control (RC) – End user ....................... 67 8.2.1...
  • Page 5: General Information

    Training manual ALTEAS & GENUS ONE 1 GENERAL INFORMATION SIZES AND DIMENSIONS CAPTION System delivery Hot water outlet Gas inlet Cold water inlet Heating system return 315 mm for 24 KW model 385 mm for 30 & 35 KW models Page.
  • Page 6: Detailed Description - Combi Version

    Training manual ALTEAS & GENUS ONE DETAILED DESCRIPTION – COMBI VERSION CAPTION Exhaust discharge Filling tap Manual deaerator Heating filter Delivery sensor NTC1 Pump Primary heat exchanger Sanitary flow switch Ignition and detection electrode 3 way valve Silencer Heating pressure sensor Sanitary heat exchanger Return sensor NTC2 Siphon...
  • Page 7: Detailed Description - System Version

    Training manual ALTEAS & GENUS ONE DETAILED DESCRIPTION – SYSTEM VERSION CAPTION Exhaust discharge Filling tap Manual deaerator Heating filter Delivery sensor NTC1 Pump Primary heat exchanger 3 way valve Ignition and detection electrode Heating pressure sensor Silencer Return sensor NTC2 Siphon 3 bar safety valve Exhaust analysis intake...
  • Page 8: Hydraulic Scheme

    Training manual ALTEAS & GENUS ONE HYDRAULIC SCHEME Page. 8 of 88 Version 2V2.
  • Page 9: Labels Position

    Training manual ALTEAS & GENUS ONE LABELS POSITION Water hardness Technical label Installation indications CONTROL PANEL DESCRIPTION LEGENDA Display CH temperature adjustment buttons zone 1 or offset of thermoregulation slope with Auto- function enabled. Wi-Fi button (enable/disable/configure) Key lock DHW Temperature control button Flame presence Summer/ Winter button Comfort button...
  • Page 10: Display

    Training manual ALTEAS & GENUS ONE DISPLAY Boiler Base (default) Boiler complete Time & Date Time & Date Mode Mode Set temperature Set temperature Comfort function Comfort function Auto function Auto function External temperature External temperature CH water pressure CH water pressure Description boiler status Burner power level Solar...
  • Page 11: Cube - Wired Room Sensor (Only Alteas - No China)

    Training manual ALTEAS & GENUS ONE CUBE – Wired room sensor (Only Alteas – No China) Together with the boiler is supplied the wired room sensor CUBE. The main functions are: • Room Temperature setting; • Time program/Manual mode/Off; • Override function.
  • Page 12: Operating Logic

    Training manual ALTEAS & GENUS ONE 2 OPERATING LOGIC FIRST IGNITION PROCEDURE The boiler is equipped with an automatic combustion control system that allows to the boiler to auto-regulate the combustion. This is possible using the feed-back that comes from the ionization current and adjusting the gas through the gas valve.
  • Page 13 Training manual ALTEAS & GENUS ONE Automatic calibration – Step 2:  Automatic calibration  the boiler starts this procedure to check and adjust the calibration at 3 different powers (max, intermediate and min); this procedure takes some minutes (about 6 or 7 minutes).
  • Page 14 Training manual ALTEAS & GENUS ONE Gas change; After modification of the following parameter:  220: soft ignition;  232: max DHW power percentage  233: min power Page. 14 of 88 Version 2V2.
  • Page 15: Heating Mode: Operating Logic

    Training manual ALTEAS & GENUS ONE HEATING MODE: OPERATING LOGIC 40°C ÷ 82°C OPERATION By pushing the buttons “+” o “-“,you can see on RANGE the display (for 4 seconds) the set temperature. Through the parameter is possible set the heating range 1: 35÷82°C ; 0: 20÷45°C). Through the parameters (min) and (max) is possible set the maximum and the minimum...
  • Page 16 Training manual ALTEAS & GENUS ONE Pre spark period To clean the ignition probes there is one pre spark Spark Generator ON period during 1,5 seconds. In the same time the ventilator goes to the soft ignition + Ventilator at the speed.
  • Page 17 Training manual ALTEAS & GENUS ONE After flame detection the boiler is free to modulate the power according to the required thermal load and realized thanks to the speed of the ventilator. Modulation is carried out between the maximum heating power values (adjustable from the control panel with parameter 31) and the minimum power value (value fix).
  • Page 18: Sanitary Mode: Operating Logic

    Training manual ALTEAS & GENUS ONE SANITARY MODE: OPERATING LOGIC 36°C ÷ 60°C OPERATING By pushing the buttons “+” o “-“,you can see RANGE on the display (for 4 seconds) the set temperature A demand for Domestic hot water, is detected by the DEMAND FOR proportional flow meter.
  • Page 19 Training manual ALTEAS & GENUS ONE Gas valve ON Gas valve is supplied Flame ionization is checked. (By the detection electrode). 1st attempt with the power of slow ignition, if at the end of the safety time (8 sec) the flame has not been detected it will be signalled 5 P6 and a second...
  • Page 20 Training manual ALTEAS & GENUS ONE The burner output is modulated varying the VENTILATOR rpm between the minimum to the maximum speed. The burner runs until the scale prevention temperature is reached. The temperature is checked by the sanitary probe NTC return. Performed from the flow and return NTC.
  • Page 21: System Version

    Training manual ALTEAS & GENUS ONE 3 SYSTEM VERSION “TANK” MODE To select this typology of operation set 1 on the parameter 228. In this version the setting of the tank temperature (SET-POINT) is done throughthe buttons “+” and “-“. Sanitary sensor (NTCs): Temperature range 40-65°C.
  • Page 22: Hydraulic Scheme

    Training manual ALTEAS & GENUS ONE HYDRAULIC SCHEME CAPTION Heating and tank Heating return delivery Gas inlet Tank return Inlet cold water (for filling) Page. 22 of 88 Version 2V2.
  • Page 23: Special Functions

    Training manual ALTEAS & GENUS ONE 4 SPECIAL FUNCTIONS FLUE CLEANER” Function This function is used to perform proper boiler combustion analysis and maximum and minimum gas calibration. Follow the instructions below to enable it: PRESS DISPLAY Press Reset button for 5 continuous seconds The display will show this indication ...
  • Page 24: Comfort" Function

    Training manual ALTEAS & GENUS ONE “COMFORT” Function This function reduces the hot sanitary water output time. The objective is reached by keeping the primary circuit in the boiler hot. To enable this function, follow the instructions below:  Press button OK  the display show “Complete Menu”; ...
  • Page 25: Antifreeze" Function

    Training manual ALTEAS & GENUS ONE “ANTIFREEZE” Function This function is enabled only if the boiler is supplied with gas and electrical power. It is operated by means of the temperature detected by the heating delivery probe (NTC1). CONDITION EVENTS TIME - The PUMP is supplied on speed III Until the...
  • Page 26: Water Flow Check

    Training manual ALTEAS & GENUS ONE “WATER FLOW CHECK” What happens Check When 1. Immediate safety shutdown - 10sec of post-circulation Check always with the - 10 sec of post-ventilation Gradient Tman > 7°C/sec flame on, except during The boiler restarts after 10sec. the first 4 seconds after 2.
  • Page 27: Air Purge" Function

    Training manual ALTEAS & GENUS ONE “AIR PURGE” Function This function can be activated by the installer by the parameter 2 71 or pressing of the mode button 5 sec (continues till to the finish (about 6’) or pressing of the mode button Lo scopo di tale funzione è...
  • Page 28: Self Adaptive Heating Restart Delay

    Training manual ALTEAS & GENUS ONE “SELF ADAPTIVE HEATING RESTART DELAY” With the parameter 2 35 it is possible chose the heating restart delay type:  0: manual;  1: automatic. MANUAL: with the parameter 2 36 it is possible set the heating restart delay between 0 and 7 min. AUTOMATIC: the heating restart delay is calculated in base of the heating set-point temperature, see table below: Set-point...
  • Page 29: Hydraulic Unit

    Training manual ALTEAS & GENUS ONE 5 HYDRAULIC UNIT CAPTION 3 way valve motor Heating filter and pressure gauge connection 3 way valve Filling tap Sanitary flow switch No back-flow valve Reed sensor 3 bar safety valve Automatic air valve By-pass Pressure sensor By-pass pipe...
  • Page 30: Way Valve

    Training manual ALTEAS & GENUS ONE 3 WAY VALVE The boiler uses a 3-way to change the water distribution (heating system side or secondary exchanger side). It’s managed by the PCB that drive the stepper motor. It is formed by a composite material body and an electric stepper motor.
  • Page 31 Training manual ALTEAS & GENUS ONE 3 WAY VALVE MOTOR DISASSEMBLY: Before disassembly the 3 way valve is mandatory remove the stepper motor. To remove the stepper motor the 3 way valve must be in DHW or stand-by position, otherwise it is not possible remove it.
  • Page 32: Stepper Motor

    Training manual ALTEAS & GENUS ONE Remove the stepper motor. Remove the 3 way valve (to do it easier it is possible use a flat screwdriver). 5.1.1 Stepper motor The stepper motor is managed from the PCB. Switching time (Heating  DHW or DHW  Heating) : about 3sec,. Page.
  • Page 33 Training manual ALTEAS & GENUS ONE To check the stepper motor is possible measure the resistance between the following pins. If it is between 80 and 100 Ohm it means that the coils of the stepper motor are ok. 80÷100Ω 80÷100Ω...
  • Page 34: Secondary Exchanger

    Training manual ALTEAS & GENUS ONE SECONDARY EXCHANGER The secondary exchanger is fixed to the hydraulic unit with two screws. The two points where the screws are fixed are asymmetric with the body of the exchanger so that it can be assembled only in the proper position.
  • Page 35: Pump Unit

    Training manual ALTEAS & GENUS ONE PUMP UNIT The pump is full modulating. The modulation is according to the boiler power in heating. In sanitary the pump goes always at the maximum speed. We can have 2 alternative pumps on this boiler: Pump model: ES 2PK/53-9A-C STEP2.
  • Page 36: Types Of Post-Circulation

    Training manual ALTEAS & GENUS ONE There is one bi-colour led (green and red) in the frontal part of the pump:  Led off: pump off or not supplied;  Led green on fix: pump on with stable speed;  Led green on blinking: pump on with speed changing; ...
  • Page 37: Heating Pressure Sensor

    Training manual ALTEAS & GENUS ONE HEATING PRESSURE SENSOR The proportional pressure sensor measures the pressure of the primary circuit, which is shown on the display. 1 P4 If the pressure decreases below the value set by parameter 241 (default : 0,6bar) occur a warning ( but the boiler continues to operate normally;...
  • Page 38: Condensation Trap

    Training manual ALTEAS & GENUS ONE CONDENSATION TRAP The condensation trap is integrated in the boiler, and located in front of flow part of hydraulic group. It can be accessed from the outside of the case, without opening the air chamber. In the condensation trap is also connected the pipe that came from main heat exchanger air purge and from the water protection plate.
  • Page 39: By-Pass

    Training manual ALTEAS & GENUS ONE BY-PASS The boiler has an automatic by-pass and, therefore no regulation is required. In the case of load losses in the system caused for example by the intervention of thermostat or area valves, the by-pass guarantees a flow in the condensing main exchanger of at least 350l/h.
  • Page 40: Primary Exchanger Unit - Xtratech

    Training manual ALTEAS & GENUS ONE PRIMARY EXCHANGER UNIT - XTRATECH The primary exchanger is keeping in position localised inside the combustion chamber by 4 points. It integrated extra functions: flue box, drain condensate. The heat exchanger is made with one pipe in stainless steel smooth (material: 304 L / Diameter: 28 mm / Thickness: 0,8 mm ).
  • Page 41: Heating Filter

    Training manual ALTEAS & GENUS ONE 5.10 HEATING FILTER On the heating return unit there is a filter that can be removed from the front side of the boiler. To inspect and clean the filter follows the instructions shown below. Page.
  • Page 42: Expansion Vessel

    Training manual ALTEAS & GENUS ONE 5.11 EXPANSION VESSEL The expansion vessel absorbs primary circuit water expansion when there is a boiler temperature raise. It is constituted by two parts separated by a SBR rubber membrane. On one side, it is an inert gas (nitrogen) and on the other side, water of the primary circuit.
  • Page 43: Sanitary Flow Switch

    Training manual ALTEAS & GENUS ONE 5.12 SANITARY FLOW SWITCH The DHW flow meter is positioned in front of e way valve. When turned on sanitary mode, the flow of water passes through the flow switch (on/off), the float moves upwards and through the magnet close the reed sensor contact and the PCB know that the tapping is in progress.
  • Page 44: Sanitary Flow Limiter (Accessory)

    Training manual ALTEAS & GENUS ONE 5.13 SANITARY FLOW LIMITER (accessory) If the sanitary flow rate is too high, it is possible assemble in the boiler the flow limiter. It is available in 3 different flow rate: 8l/min, 10l/min and 12l/min, it is possible identify them with the colour: 12 l/min 10 l/min 8 l/min...
  • Page 45: Burner Unit

    Training manual ALTEAS & GENUS ONE 6 BURNER UNIT BURNER UNIT CAPTION 1. Ignition/detection electrode 4. Fan 2. Silencer 5. Mixer 3. Gas diaphragm 6. Burner door Page. 45 of 88...
  • Page 46: Premix Burner

    Training manual ALTEAS & GENUS ONE PREMIX BURNER The cylindrical stainless steel premix burner pot Ø 70 mm is made up of a small-diameter perforated external casing on which the combustion occurs. a large-diameter perforated internal casing that balances the propagation of the gas. This burner can be used with natural gas and LPG.
  • Page 47: Mixer

    Training manual ALTEAS & GENUS ONE MIXER There is only one mixer for all powers. In the different powers change the gas diaphragm. Gas diaphragm diameter 12kW 18kW 25kW 30kW 35kW (ø mm) (ø mm) (ø mm) (ø mm) (ø mm) G20 / G30 / G31 / G230 GAS CHANGE...
  • Page 48: Silencer

    Training manual ALTEAS & GENUS ONE SILENCER There are 3 different silencers. The difference is the diameter of the air inlet. Air inlet diameter 12kW 18kW 25kW 30kW 35kW (ø mm) (ø mm) (ø mm) (ø mm) (ø mm) G20 / G30 / G31 10,2 25,3 25,3...
  • Page 49: Bertelli Sgv Gas Valve

    Training manual ALTEAS & GENUS ONE BERTELLI SGV GAS VALVE The gas valve mounted is a BERTELLI SGV , fitted with two operators supplied at 24 VDC. The gas valve is composed by 2 safety operators: the first is an ON / OFF solenoid class B, the second one is used as safety operator class C that is used to drive the “balanced pressure valve”...
  • Page 50: Combustion Control System And Gas Settings

    Training manual ALTEAS & GENUS ONE COMBUSTION CONTROL SYSTEM AND GAS SETTINGS The gas setting is done automatically by the PCB. This is possible using the feed-back that came from the ionization current and adjusting the gas through the gas valve. No mechanical adjustments are required.
  • Page 51: Co2 Adjustment - Intermediate Power

    Training manual ALTEAS & GENUS ONE CO2 adjustment – Intermediate power 6.7.1 Switch on the boiler at the maximum power (using “FLUE CLEANER” function  DHW max power) Wait till the value of the CO2 on the exhaust analyser is stable. Compare the CO2 value with the values in the table below.
  • Page 52: Co2 Adjustment - Minimum Power

    Training manual ALTEAS & GENUS ONE 6.7.2 CO2 adjustment - minimum power Switch on the boiler at the minimum power (using “FLUE CLEANER” function  Min power) Wait till the value of the CO2 on the exhaust analyser is stable. Compare the CO2 value with the values in the table below.
  • Page 53: Gas Table

    Training manual ALTEAS & GENUS ONE The soft ignition power checking and setting To check and to set the soft ignition, it is possible in the parameter The factory’s setting is 60. 6.7.3 GAS TABLE UPDATE Page. 53 of 88...
  • Page 54: The Fume Discharge System

    Training manual ALTEAS & GENUS ONE THE FUME DISCHARGE SYSTEM On the external part of the boiler there is a fume discharge collector with two intakes used to detect the temperature of the combustion gas and of the fresh air inlet , concentrations of O2, CO2, etc. COMBUSTION ANALYSIS INTAKE Page.
  • Page 55: Igniter / Elecrode Probes

    Training manual ALTEAS & GENUS ONE IGNITER / ELECRODE PROBES There is only one electrode that produces ignition and detects the presence of the flame in the burner if the ionization current is more than 1 µA. If the signal disappears, three attempts are made to try to ignite the burner.
  • Page 56: Modualting Speed Ventilator

    Training manual ALTEAS & GENUS ONE MODUALTING SPEED VENTILATOR The fan has the dual purpose of expelling the fumes produced by the combustion and ensuring a consistent flow of excess air throughout the entire modulation range, from the maximum to the minimum heat output. As soon as heat is requested the ventilator is piloted by the electronic card if required on ignition speed.
  • Page 57: Exhaust Systems

    Training manual ALTEAS & GENUS ONE EXHAUST SYSTEMS The boiler is set up for connection to a 60/100 coaxial air intake and flue gas exhaust ducting system. To use split types of suction and exhaust, one of the two air intakes must be used. Remove the top of the air intake by cutting it with a suitable knife.
  • Page 58: Electric And Electronic System

    Training manual ALTEAS & GENUS ONE 7 ELECTRIC AND ELECTRONIC SYSTEM MAIN CARD The boiler uses a GAL2EVO COND electronic card for complete checking of the boiler and users interfaces display LCD; The GAL2EVO COND electronic card is protected by one 2A, 250 VAC fuses and a VDR protects the card against supply voltage peaks up to 275VAC.
  • Page 59: Electric Diagram

    Training manual ALTEAS & GENUS ONE 7.1.1 ELECTRIC DIAGRAM Only for Alteas One and Genus One (China) Only China Page. 59 of 88...
  • Page 60: Peripherals Connection

    Training manual ALTEAS & GENUS ONE PERIPHERALS CONNECTION It is possible to connect the peripherals below:  Room thermostat 1 (Crono thermostat available also wireless version);  Room thermostat 2 (Crono thermostat available also wireless version);  Room sensor ; ...
  • Page 61: Decupling Clip-In For Solar Manager And Hybrid Connection

    Training manual ALTEAS & GENUS ONE DECUPLING CLIP-IN FOR SOLAR MANAGER AND HYBRID CONNECTION When solar manager or Hybrid are connected through bus to the boiler, the error is displayed. To solve this error, it need to install the “Decupling clip-in” on the bus net between the boiler and the solar manager and hybrid module.
  • Page 62: Wi-Fi (Only Alteas One And Genus One China)

    Training manual ALTEAS & GENUS ONE 8 WI-FI (only Alteas One and Genus One China) In the boilers Alteas and Genus Wi-Fi the Wi-Fi module in embedded. CONNECTION TO INTERNET a) With the boiler on the Wi-Fi button is backlighted (see picture below) and it indicates that the Wi-Fi module is switched on.
  • Page 63 Training manual ALTEAS & GENUS ONE e) Push the button “OK”, the product will create a new Access Point to start the Wi-Fi network configuration that remains active for 10 minutes. Open the network settings of your internet device (smartphone, tablet, PC) and search for available Wi-Fi network. Select “Remote Gw Thermo”...
  • Page 64 Training manual ALTEAS & GENUS ONE  Wi-Fi configuration via Browser Otherwise, open the web browser (Internet Explorer, Safari, Chrome, etc.) and enter the link 192.168.1.1 in the address bar. There are two possibility: a) AUTOMATIC (recommended) Select your own wireless (SSID) network and enter the password Leave the default setting DHCP=ON Click Confirm Page.
  • Page 65 Training manual ALTEAS & GENUS ONE b) MANUAL Keep the selection SSID=Manual Write the name of the Wi-Fi network in the “SSID” field. State the type of authentication used in the “Authentication” and “Authentication Type” fields and enter the password Select DHCP=OFF Enter the static IP address assigned to the gateway Enter the network mask...
  • Page 66 Training manual ALTEAS & GENUS ONE The display shows the following message, while it try to reach the Internet provider. If the connection is performed successfully the display will shows that the connection is ready. Pressing “OK”, in the home screen the WiFi icon will appear on the top. k) If the local Wi-Fi network configuration is unsuccessful (the display shows that the connection to the router cannot be accomplished), repeat the previous procedure starting from point “e”.
  • Page 67: Internet Services Activation

    The functions of remote control for end user are reachable through App or Web App.  Download the official App Ariston Net Register your account by entering your details (you can register your account and product only after connecting the device to Internet).
  • Page 68 Training manual ALTEAS & GENUS ONE Start control your system. IMPORTANT: You can control your system with several devices at once, simply use the same credentials to log in. The App includes an option for registering more than one gateway with a single user account.
  • Page 69: Remote Diagnostics (Rd) - After Sales Service

    The After sales services can access on platform of remote diagnostic through web browser on Ariston Net: https://www.ariston-net.remotethermo.com Ariston Thermo will create the account for the After sales service with the e-mail provided from the same assistance. Then the After sales service will receive one e-mail where there are written the credentials for the access: •...
  • Page 70: Errors

    The errors of boiler (and all components of the system connected through the Bus connection) are acquired from the Gateway and can be visualized through Ariston Net, from the After sales service and from the end user in different mode.
  • Page 71: Remote Diagnostics (Rd) Errors Management - After Sales Service

    Training manual ALTEAS & GENUS ONE Remote diagnostics (RD) errors management – After sales service 8.3.2 The After sales service can visualize through Web App all errors generated from system and contemporaneously when appears the error, he receive one mail only for blockers errors. He can also reset some errors from remote (the errors regarding the gas, are not resettable for security reasons) Errors table resettable from remote:...
  • Page 72: For App And Web App

    Check the existing Sensys connection with newest between the Wi-Fi software version module and the main PCB SWITCH THE BOILER OFF AND ON The error appears again? CONTACT THE ARISTON THERMO GROUP TECHNICAL SUPPORT Page. 72 of 88 Version 2V2.
  • Page 73 Training manual ALTEAS & GENUS ONE COMMUNICATION ERROR RESTORE THE BOILER'S Does the boiler have electrical power? ELECTRICAL CONNECTION CHECK THE CONNECTION OF THE WI-FI MODULE ON Is Wi-Fi module properly connected to the THE BOILER PCB AND THAT boiler PCB? THE CABLE IS NOT DAMAGED SWITCH THE BOILER OFF...
  • Page 74 The Wi-Fi icon is (NORMALE) mobile device. The W-Fi icon is: IF THE PROBLEM HASN’T BEEN SOLVED, CONTACT THE ARISTON THERMO GROUP TECHNICAL SUPPORT Reset the router or contact the internet provider Platform server undergoing maintenance.
  • Page 75: Menu And Settings

    Training manual ALTEAS & GENUS ONE 9 MENU AND SETTINGS In the boiler there are 2 different menus, one for the end-user and one for the technician. USER MENU To enter in the user menu, push the button OK. Inside the “Complete menu” there are the menu below: Page.
  • Page 76: Technician Menu

    Training manual ALTEAS & GENUS ONE TECHNICIAN MENU end “OK”, and after set the access To enter in the in the technician menu push for 5 second the buttons code “234” and push the button “OK”. Page. 76 of 88 Version 2V2.
  • Page 77: Complete Menu

    Training manual ALTEAS & GENUS ONE COMPLETE MENU 9.3.1 Menù 0 : Network Default Function Range setting BUS NETWORK Network presence in the bus (only visualization) USER INTERFACE 1: heating zone 1 Zone to be set by display 2: heating zone 2 3: heating zone 3 Backlight time (min) 1 ÷...
  • Page 78 Training manual ALTEAS & GENUS ONE Maximum DHW power (do not modify this parameter, See gas 4 ÷ 100 modify only in even of PCB table replacement) Minimum boiler power (do not modify this parameter, See gas 0 ÷ 11 modify only in even of PCB table replacement)
  • Page 79: Menù 4 : Zone 1 Parameters

    Training manual ALTEAS & GENUS ONE BOILER MANUAL SETTING 0: Off Manual mode attivation 1: On Boiler pump control 0: Off (set parameter 260 =1) 1: On (timed 10 min) Fan control 0: Off (set parameter 260 =1) 1: On (timed 10 min) 3 way valve control 0: Sanitary (set parameter 260 =1)
  • Page 80: Menù 5 : Zone 2 Parameters

    Training manual ALTEAS & GENUS ONE OFF: switch-off Zone 1 pump status ON: switch-on (only visualization) ZONE 1 ZONE MODULE SETTINGS (visible only with zone module connected) 0: Fix 1: Modulating (ΔT) Zone 1 pump modulation 2: Modulating (pressure) 7 (par. 420=0) ΔT for pump modulationa 4 ÷...
  • Page 81: Menù 6 : Zone 3 Parameters

    Training manual ALTEAS & GENUS ONE Pump fixed speed setting (with 20 ÷ 100 par. 540 = 0) 9.3.5 Menù 6 : Zone 3 parameters Default Function Range setting SETPOINT Temperature setpoint zone 3 Par 425 ÷ Par 426 ZONE 2 SETTING Select high or low temperature 0: low temperature for zone 3...
  • Page 82: Menù 7 : Zone Module

    Training manual ALTEAS & GENUS ONE 9.3.6 Menù 7 : Zone module Default Function Range setting MANUAL MODE 0: Off Manual mode activation 1: On Zone 1 pump control 0: Off (set parameter 710 =1) 1: On (timed 10 min) Zone 2 pump control 0: Off ( set parameter 710 =1)
  • Page 83: Menù 8 : Service Parameters

    Training manual ALTEAS & GENUS ONE 9.3.7 Menù 8 : Service parameters Valore di Funzione Range di regolazione default BOILER STATISTICS Diverter valve cycles No.(n x 10) (only visualization) Time of circulator on (h x 10) (only visualization) Boiler circulator cycles No. (only visualization) (n x 10) Boiler Life Time (h x 10)
  • Page 84 Training manual ALTEAS & GENUS ONE 1: On YES: push button “OK” Maintenance warning reset NO: push button “ESC” Display software version (only visualization) Main PCB software version (only visualization) ERROR HISTORY Last 10 errors SI: push button “OK” Reset error list NO: push button “ESC”...
  • Page 85: Error Codes

    Training manual ALTEAS & GENUS ONE 10 ERROR CODES 10.1 BOILER PROTECTION SYSTEMS. There are two types of errors for malfunctions: - Shutdown (solved by resetting); - Safety stop (No Reset: the boiler will start working again properly when the cause is removed). There is a third type of error code that is used to indicate a malfunction that does not stop the boiler which continues to work properly (Indication).
  • Page 86 Training manual ALTEAS & GENUS ONE Water missing on the primary circuit (P<Pmin) for boiler with pressure 1 11 No Reset sensor (par. 247=2) 1 12 Heating return probe open circuit or no signal (NTC2) No Reset 1 14 Outdoor probe open circuit or no signal No Reset 1 16 Floor thermostat opened...
  • Page 87: Technical Data Table

    Training manual ALTEAS & GENUS ONE 11 TECHNICAL DATA TABLE Model: GENUS PREMIUM EVO CE Certification (pin) 0085CL0440 C13(X)-C23-C33(X)-C43(X)-C53(X)- Boiler type C63(X)C83(X)-C93(X)B23-B23P-B33 Max/min nominal calorific flow rate (Pci) 22/2,5 28,0/3,0 31/3,5 Max/min nominal calorific flow rate (Pcs) 24,4/2,8 31,1/3,3 34,4/3,9 Domestic hot water max/min nominal calorific flow rate (Pci) 26/2,5 30,0/3,0...
  • Page 88: Page. 3 Of

    Training manual ALTEAS & GENUS ONE Model: GENUS PREMIUM EVO SYSTEM CE Certification (pin) 0085CL0440 C13(X)-C23-C33(X)-C43(X)-C53(X)- Boiler type C63(X)C83(X)-C93(X) B23-B23P-B33 Max/min nominal calorific flow rate (Pci) 18,0/4,5 22,0/2,5 28,0/3,0 31,0/3,5 Max/min nominal calorific flow rate (Pcs) 20,0/5,0 24,4/2,8 31,1/3,3 34,4/3,9 Domestic hot water max/min nominal calorific flow rate (Pci) 18,0/4,5 26,0/2,5...
