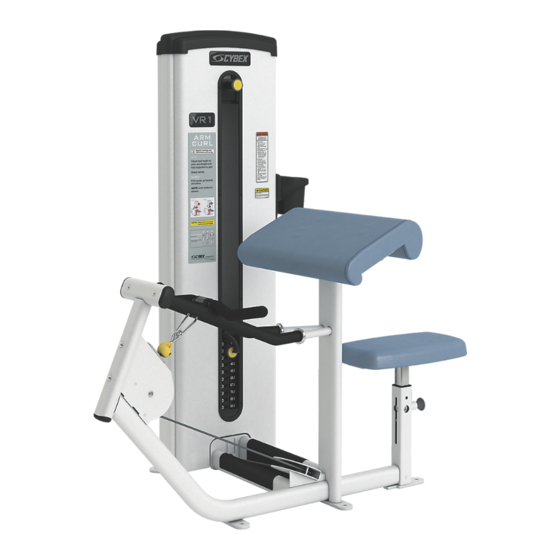

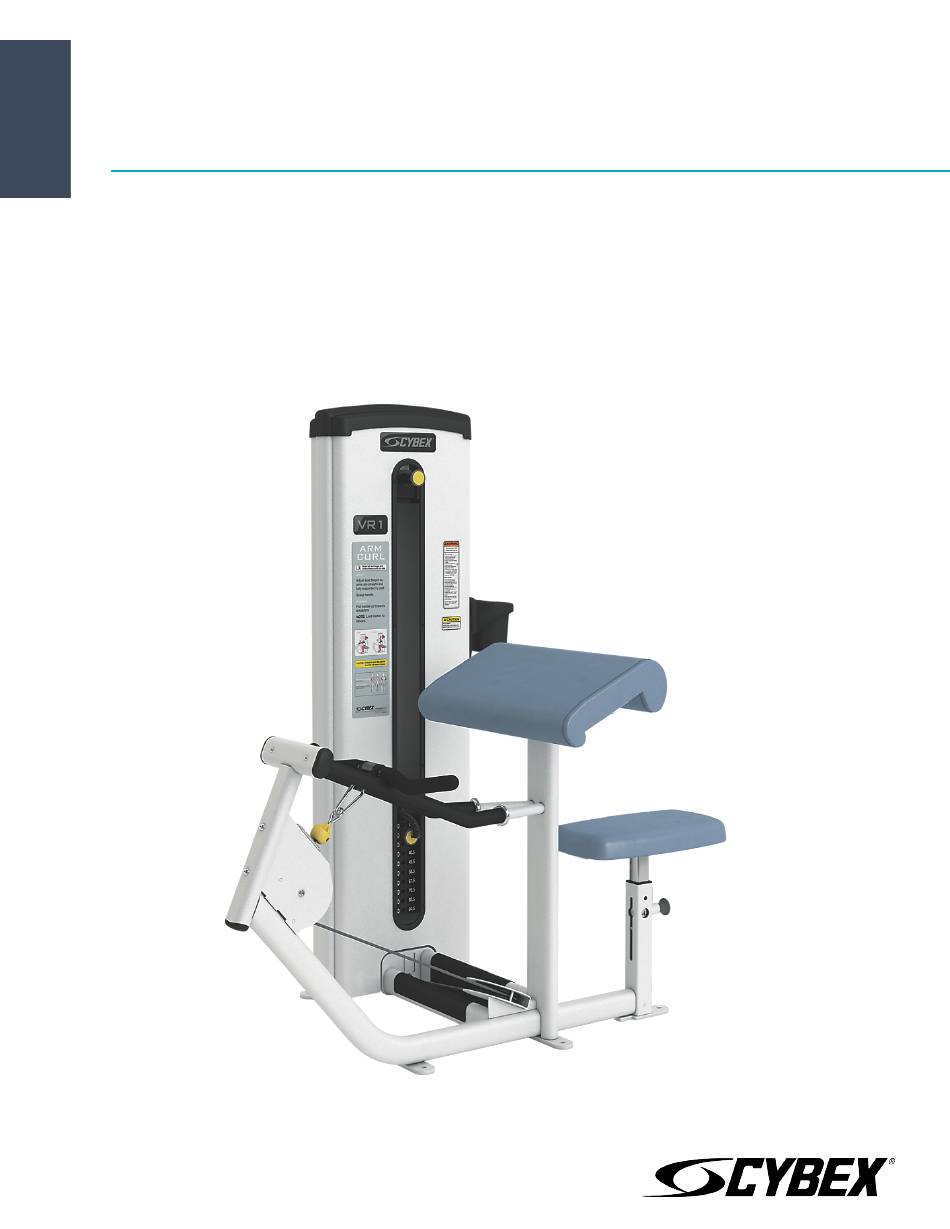

- Page 1 ® Arm Curl - Cable Owner's Manual Part Number 13070-999-4 AC...
-
Page 3: Table Of Contents
Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 4: Safety Guidelines And Practices
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. -
Page 5: User Safety Precautions
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts. -
Page 6: Label Placement
Label Placement The following diagram shows where each label is located. Page 6 of 24... - Page 7 Description DE000001-X DE000005-X 4520-362-X Page 7 of 24...
-
Page 8: Assembly
Assembly Machine Specifications Total Weight and Size VR1 Arm Curl - Cable 13070 Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 344 Lbs 54” L × 39” W × 62” H Same 156 Kg 138 cm L × 100 cm W × 157 cm H Same Total Weight and Size VR1 Arm Curl - Cable 13070 Light Stack Weight... -
Page 9: Environment
All other machines must have a clear floor space of 23” for all access point on the machine, unless shown in the Owner’s Manual. Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%. - Page 10 Part Number Description Diagram 13000-355 Foot Pad Decal, Weight Plate (10-150) 4800-557 (Light) 13000-552 Decal, Weight Plate (10-220) (Standard) 4700-337 Weight Stack Plate (Light) 13000-030 Weight Plate Pack (Light) 4700-338 Weight Stack Plate (Standard) 13000-034 Weight Plate Pack (Standard) Page 10 of 24...
-
Page 11: Tools Required
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. - Page 12 Description Qty. BHSCS Top cap Shroud 2. Remove top cap and BHSCS. 3. Lift shroud up and out of machine. 4. Remove guide rod caps. Guide rod cap contains a compression spring that will fly if grasp is not released slowly.
- Page 13 8. Remove lifting post. 9. Remove weight plates. 10. Move to desired location. 11. Remove shipping cones using a 3/4” socket or wrench. Remove bolt from shipping cone with hammer. Recycle cone. 13. Attach foot pads to each foot of frame. Install weight plates 1.
- Page 14 Description Backing Front sheet Weight decals 2. Place decals front sheet in the correct position on weight plates. 3. Insert a guide pin through each hole of the decals front sheet. A guide pin can be anything that fits through the weight stack hole, such as a weight stack selector pin.
- Page 15 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
-
Page 16: Exercise
Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted. -
Page 17: Maintenance
Cybex International, Inc. is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. Cybex International, Inc. representatives are available to answer any questions that you may have. Warnings TIP: Read all warnings in this chapter. -
Page 18: Weekly Procedures
Then Dampen a soft white cloth with rubbing alcohol. More Difficult Stains Gently rub stained area. (Alternative Method) Dampen a clean soft cloth in water and rinse area. Apply a light coat of furniture wax for 30 seconds. Restoring Luster Lightly rub area using a clean white cloth. -
Page 19: Yearly Procedures
• Hammer • 3/16” Pin punch Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. - Page 20 Description Qty. Jam nut Tension adjustment nut Rod End Adjustment This type of adjustment uses a socket head cap screw (SHCS) securing a cable rod end bearing to the machine. Primary adjustment is by turning the rod end bearing. The other end of the cable usually contains a roll pin cable adjustment.
- Page 21 Description Qty. Cam bolt adjustment Page 21 of 24...
-
Page 22: Customer Service
To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •... -
Page 23: Damaged Parts
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. - Page 24 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
