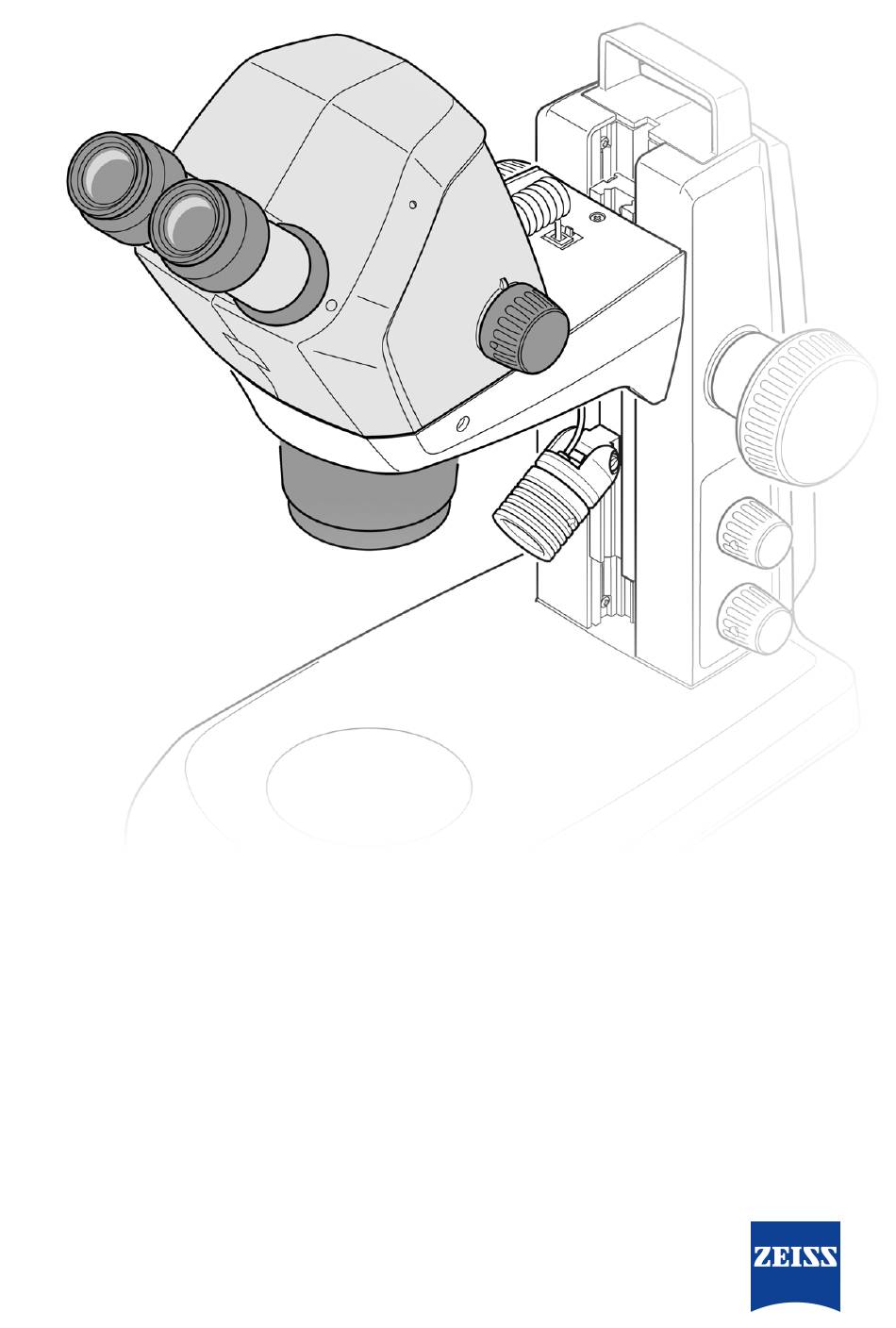

- Page 1 Instruction Manual ZEISS Stemi 305 cam Stereo Microscope with Integrated Camera...
- Page 2 Effective from: 01/2024 © 2024 Without the prior written consent of ZEISS, this document or any part of it must neither be translated nor reproduced or transmitted in any form or by any means - including electronic or mechanic methods, by photocopying, recording or by any information or filing system.
-
Page 3: Table Of Contents
Acquiring an Image with Connection to an Existing WLAN Network ....26 Updating the Firmware of the Integrated Camera..........27 5.10 Resetting the Microscope to Factory Settings ............. 28 Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... - Page 4 Performance Data and Specifications..............36 Applicable Standards and Regulations ..............38 Radio Approval....................38 10 Accessories and System Expansions ..........39 Revision History................41 Glossary..................42 Index ....................43 Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 5: About This Instruction Manual
Stemi 305 cam, herein after referred to as "microscope". In this instruction manual the Stemi 305 cam body is described. The document is valid only in con- junction with the main instruction manual Stemi 305. For more details refer to this instruction manual. -
Page 6: Explanation Of Warning Messages And Additional Information
NOTICE indicates a potentially harmful situation which, if not avoided, may result in property damage. Info Provides additional information or explanations to help the operator better understand the contents of this document. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 7: Explanation Of Symbols
Approval mark for Japan Radio Law Model number Ethernet port Power input Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 8: Further Applicable Documents
Instruction manuals of alternative Stemi stands (Stand M LED, Stand U, Boom Stand B, Stand SDA, Floor Stand S) 1.5 Contact If you have any questions or problems, contact your local ZEISS Sales & Service Partner or one of the following addresses: Headquarters... - Page 9 You can find a ZEISS Sales & Service Partner in your area under https://www.zeiss.com/mi- croscopy/int/website/forms/sales-and-service-contacts.html. Service Germany Phone: +49 7364 20 3800 Fax: +49 7364 20 3226 Email: service.microscopy.de@zeiss.com Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 10: Safety
ZEISS may not be used. 2.1 Intended Purpose The stereo microscope Stemi 305 cam is an instrument for the general magnifying, spatial imaging of small objects. The microscope is designed and built for use in biological laboratories, industrial manufacturing and quality assurance and is used for observing, preparing and sorting objects and specimens of various types and conditions. -
Page 11: Safe Operating Condition
Ensure conditions and take measures to prevent the build up of electrostatic charge on the workplace. 2.2.3 Order and Use of Spare Parts Using spare parts that are not provided by ZEISS can be hazardous or can lead to property damage. §... -
Page 12: Optical Risk Grouping
2.3 Prevention of Hazards This section summarizes potential hazards and recommended safety precautions. Failure to follow the safety instructions and instructions may result in personal injury and property damage. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 13: Hazards Generated By Materials And Substances
§ Immediately replace damaged or illegible warning labels. In case a label is missing, contact your ZEISS service representative for free of charge replacement. 2.4.1 Labels and Lights on the Stemi 305 cam Body Fig. 1: Labels and light on the Stemi 305 cam body... - Page 14 Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 15: Product And Functional Description
The visualized images of the Stemi 305 cam may only be used for documentation, laboratory and research purposes. The images are not intended for the direct generation of diagnostic results. -
Page 16: Controls And Displays
RJ12 port with spiral cable Ethernet port 3.3 Ethernet Operating Modes TheStemi 305 cam W body and the Stemi 305 cam E body newly add one ethernet port to estab- lish wired connection and provide the following operating modes: Operating... -
Page 17: Wi-Fi Operating Modes Of The Stemi 305 Cam
ZEISS 3 Product and Functional Description | 3.4 Wi-Fi Operating Modes of the Stemi 305 cam 3.4 Wi-Fi Operating Modes of the Stemi 305 cam Except for ethernet operation mode, Stemi 305 cam W body also provide the following additional... -
Page 18: Installation
For iOS® The Labscope apps for iOS® can be downloaded via the App Store®. You can download the corresponding app for your tablet PC directly from there. Please visit our product website (https://www.zeiss.com/labscope) to find the links for download. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 19: Operation
The status LED blinks once. 3. Switch the microscope off and on again using the power switch. à The integrated camera restarts with the Ethernet DHCP status on. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 20: Acquiring An Image With Ethernet Connection To A Lan Network/Router
Device Prerequisite A digital end device with the software Labscope is available and has already been started. ü Stemi 305 cam is connected to the digital end device via Ethernet cable [ 18]. ü ü The Ethernet DHCP status of Stemi 305 cam is off. -
Page 21: Connecting The Stemi 305 Cam Via Wlan Access Point
ZEISS 5 Operation | 5.5 Connecting the Stemi 305 cam Via WLAN Access Point à The thumbnail of the Stemi 305 cam is dis- played. 5. Click on the center of the thumbnail. à The live image appears enlarged on the screen. -
Page 22: Configuring Stemi 305 Cam Via Labscope
Prerequisite ü The Stemi 305 cam W body is attached to the microscope stand. ü The browser tab Stemi 305 cam WLAN configuration is opened on the digital end device. Procedure 1. Select As Access Point and confirm with Next. - Page 23 6. Close the browser tab. 7. Wait until the status LED lights up continuously. Stemi 305 cam provides its own WLAN network with the newly selected SSID, password and transmission channel. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 24: Configuring Connect To Existing Wlan Mode
5.6.2 Configuring Connect to Existing WLAN Mode Prerequisite ü The Stemi 305 cam W body is attached to the microscope stand. The browser tab Stemi 305 cam WLAN configuration is opened on the digital end device. ü Procedure 1. Select Connect to existing WLAN and con- firm with Next. -
Page 25: Configuring The Ethernet Dhcp Status
5.6.3 Configuring the Ethernet DHCP Status Prerequisite ü The Stemi 305 cam body is attached to the microscope stand. The browser tab Stemi 305 cam WLAN configuration is opened on the digital end device. ü Procedure 1. Set Ethernet DHCP to open to connect the Stemi 305 cam directly to a digital end device. -
Page 26: Acquiring An Image With Connection To An Existing Wlan Network
A digital end device with the software Labscope is connected to this network and has al- ready been started. ü Stemi 305 cam W body is connected to this network through the configuration steps [ 24]. Procedure 1. Start the Labscope app on the digital end device by clicking on the Labscope icon. -
Page 27: Updating The Firmware Of The Integrated Camera
5.9 Updating the Firmware of the Integrated Camera NOTICE Malfunction due to wrong software version Take care to download the correct firmware file according to the existing Stemi 305 cam body. Prerequisite ü The latest firmware has been downloaded from the ZEISS web page and is available on the digital end device. -
Page 28: Resetting The Microscope To Factory Settings
The status LED blinks twice, the resetting progress is starting. When the status LED lights up continuously, the reset to the default factory setting is success- ful. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 29: Care And Cleaning Work
Info Labels on the device may only be cleaned using a dry cloth. 3. Wipe off the area with the cloth. 4. Dry with a lint-free cloth. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 30: Cleaning An Optical Surface
1. Moisten a cotton swab or a clean cloth with an optical cleaning solution, if necessary. 2. Wipe optical surfaces in a circular motion towards the edge of the optics with slight pressure. WRONG CORRECT 3. Dry with a lint-free cloth. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 31: Troubleshooting
Labscope is not updated. Download and install actual version of Labscope. Unspecific camera behaviour. Reset Stemi 305 cam [ 28]. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... - Page 32 The SSID of the WLAN Rename the existing WLAN so network contains a dot, e.g.: that the SSID only consists of "TP-Link_02.4G" letters, digits, hyphens and underscores, e.g.: "TP- Link_02_4G" Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
- Page 33 Wi-Fi access point. § Connect all Stemi 305 cam/digital end devices in the group to the Wi-Fi SSID of “their own” access point. Software malfunctions See Labscope manual. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 34: Decommissioning And Disposal
Info Detailed information on transport and storage is available from your ZEISS Sales & Service Part- ner. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 35: Disposal
European Union that ensures suitable reuse according to the EU Directives mentioned. ZEISS introduced a procedure for the return and recycling of the instruments within the member states of the European Union which ensures suitable recycling procedures conforming to the EU directives. -
Page 36: Technical Data And Conformity
Sensor Pixel Count 2560 px x 1440 px (horizontal x vertical) = 4 Megapixel Pixel Size 2.0 μm x 2.0 μm Active sensor area 5.44 mm x 3.07 mm Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... - Page 37 5 m-15 m, depending on viewing direction and number of WLAN/ Stemi 305 cam W Bluetooth equipment items within the range body) SSID (only Stemi 305 configurable by the user cam W body) Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 38: Applicable Standards And Regulations
NICATIONS The Radio Equipment Regulations 2017 9.3 Radio Approval The Stemi 305 cam microscope with Wi-Fi and Ethernet camera may only be used if it has radio approval for your region. If in doubt, contact a ZEISS service representative. RF Exposure This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. -
Page 39: Accessories And System Expansions
Only the following accessories may be used with the microscope as their safe use has been con- firmed by ZEISS. Only original parts from ZEISS may be used. Check in advance whether your mi- croscope can be retrofitted with a system expansion or accessories. - Page 40 Gliding Stage f/ Stemis § Stage Ball & Socket f/ Stemis § Rotating Stage Stemi § for rotating stages Polarizer S f/ Stage 455120 § Lambda Plate in Slider Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101...
-
Page 41: Revision History
ZEISS Revision History Revision History Revi- Date of Introduced Modifications sion Issue § 01/2024 Initial creation Tab. 1: Revision History Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 42: Glossary
/ or a clearly defined customer group. ZEISS service representative Specially trained service expert, either ZEISS staff or authorized service partner of ZEISS. Instruction Manual ZEISS Stemi 305 cam | en-US | Rev. 1 | 435063-7021-101... -
Page 43: Index
