INSTALLATION CERTIFICATE
The undersigned qualified installer attests to have personally fitted the here described vehicle
security system following the manufacturer instructions
By :
Sold on :
................................................
Vehicle :
..........................................................................................................................
Gemini permanently fitted aftermarket equipment must be installed by qualified and authorised
installers.
Thatcham recommends to its insurer members that the installations of certified products within the
aftermarket are registered with an independent installation registration system which can be
accessed by insurance companies.
Thatcham administers the Thatcham Recognised Installer scheme, on behalf of the British motor
insurance industry, providing independent registration of installations to vehicle owners.
Details of the Thatcham Recognised Installer scheme can be found at www.thatcham.org.
To ensure consumers insurance cover is not adversely affected it is highly recommended that all
installations are carried out by Thatcham recognised installers and that all installs are registered
providing the vehicle owner with a Thatcham recognition of installation for presentation to insurers.
Thatcham recommends to its insurer members that the installations of certified products within the
aftermarket are registered with an independent installation registration system which can be
accessed by insurance companies.
If seeking insurer recognition for the fitment of this product it is likely that the installation will have to be
carried out by a Thatcham recognised installer.
Afull list of Thatcham recognised installers is available at www.thatcham.org.
GEMINI Technologies s.r.l.
Via Luigi Galvani 12 - 21020 Bodio Lomnago (VA) - Italia
Tel. +39 0332 943211 - Fax +39 0332 948080
www.gemini-alarm.com
ISO 9001 Certified Company
.
Type of product :

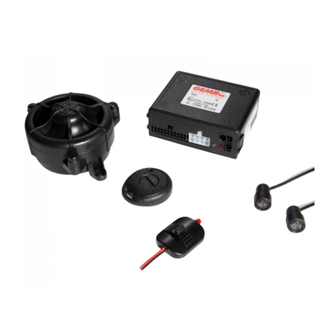

931TT
931TT
USER & INSTALLER
MANUAL
Made in Italy
UK
Rev01 - 10/2020
Advertisement
Table of Contents
Related Manuals for Gemini 931TT
Summary of Contents for Gemini 931TT
- Page 1 931TT Vehicle : .......................... USER & INSTALLER Gemini permanently fitted aftermarket equipment must be installed by qualified and authorised installers. Thatcham recommends to its insurer members that the installations of certified products within the MANUAL aftermarket are registered with an independent installation registration system which can be accessed by insurance companies.
-
Page 2: Table Of Contents

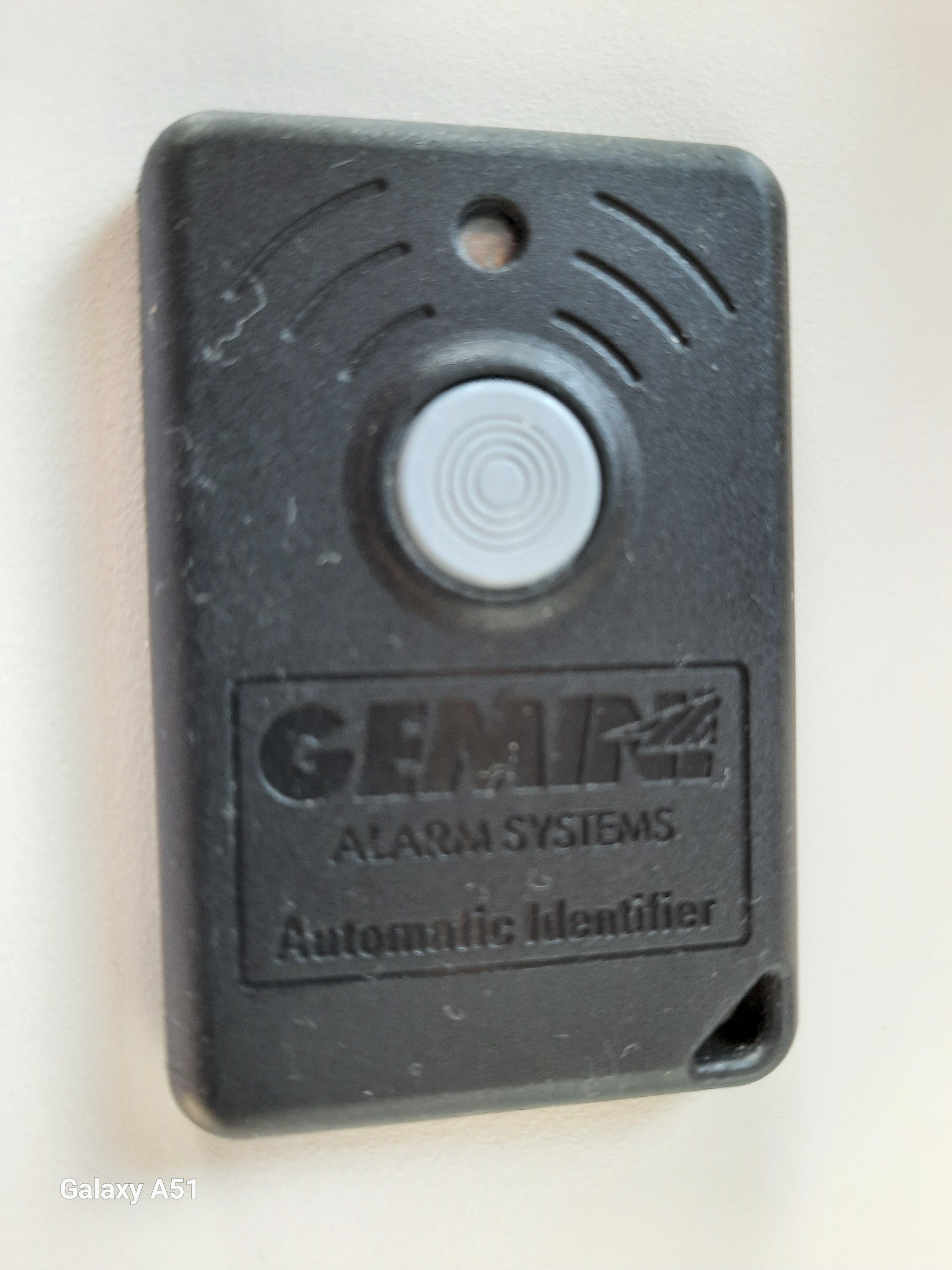

Dear Customer, 1.0 - INTRODUCTORY NOTE.................... PAGE 03 The 931TT self-powered alarm system is supplied with 1 touch key to emergency override the system USER MANUAL and exclude the sensors and 2 RFID transponders (TAG cards) to engage/disengage the engine 2.0 - OPERATING PROCEDURE.................. -
Page 3: System Arming And Engine Immobilizer
- ALARM, INHIBIT TIME BETWEEN ALARMS AND ALARM CYCLES ALARM LED FLASHES ALARM CAUSES Alarm events are signaled by optical/acoustic signals. Each event can generate up to 10 cycles for each CYCLES input and for each arming cycle with a pause of 5 sec. between each cycle. One alarm cycle lasts 30 sec. Ignition attempt (+15/54) - SYSTEM DISARMING Door tamper... -
Page 4: Pinout Tables
INSTALLER MANUAL 5.0 - WIRING DIAGRAM 4.0 - PINOUT TABLES Before carrying out electrical connections, - 20-PIN CONNECTOR disconnect the negative POSITION WIRE FUNCTION WIRE COLOUR battery terminal and re- TOUCH KEY connect only after - 1 - ----- ----- completion. -
Page 5: Turn Indicators Wiring Diagrams
The various arming modes are listed below and the connections detailed in the following paragraphs (refer to the vehicle specific installation instructions available in the restricted area of our website: ORANGE www.gemini-alarm.com). GEMINI • Arming via CAN BUS line. ORANGE 931T-IT •... -
Page 6: Vehicle Code Programming
SHORT PAUSE Up-to-date information on supported vehicle models is available in the restricted area of our website: www.gemini-alarm.com. 3 FLASHES The system has an indicator LED that signals any wrong vehicle code inserted. The code must range between 100 and 239 otherwise the LED on the unit blinks Press the vehicle remote control lock/unlock buttons to make sure the alarm system works repeatedly and the procedure is interrupted. -
Page 7: Passive Arming
