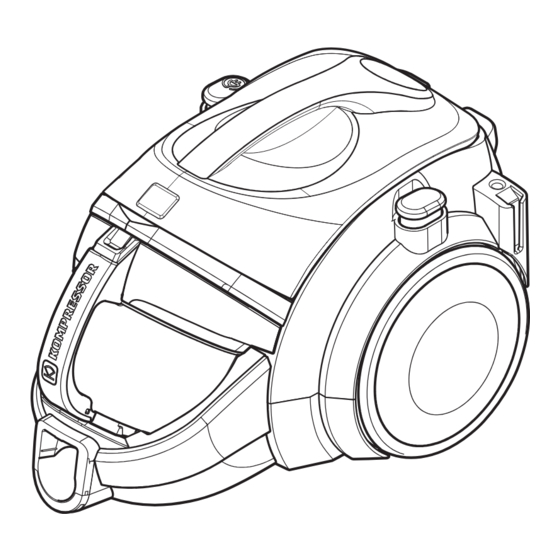

- Page 1 삼 흥 정 판 Internal Use Only Website http://biz.lgservice.com VACUUM CLEANER SERVICE MANUAL MODEL : VC83******* VC88******* VK88******* VK98******* CAUTION BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN THIS MANUAL. July, 2014 Printed in Korea P/NO : MFL68699902...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..........................3 CAUTIONS ..............................3 DESCRIPTION ............................. 4 SPECIFICATIONS ............................4 DISASSEMBLY ............................5~6 TROUBLE SHOOTING GUIDE ....................... 7~9 SCHEMATIC DIAGRAM ..........................10 EXPLODED VIEW ..........................11~15... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Air filter and motor safety filter 3. Avoid suction such materials as : 1) These filters are reusable. 1) Liquid or wet dust : 2) Never use the vacuum cleaner without the filters. -
Page 4: Description
DESCRIPTION Cord Reel Button Flexible Hose Assembly Telescopic Pipe Assembly Power Cord Floor Nozzle Assembly Floor Nozzle Assembly Floor Nozzle Assembly (depend on model) (depend on model) Floor Nozzle Assembly (depend on model) (depend on model) Quilt Nozzle Assembly Turbine Nozzle Assembly (depend on model) (depend on model) Turbine Nozzle Assembly... -
Page 5: Disassembly
DISASSEMBLY NOTE : Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord from the wall outlet. • Almost all of the parts of this vacuum cleaner can be 3) Disassemble the body cover assembly, lifting the disassembled with a screw driver and each body cover assembly. - Page 6 3. Disassembly of Cord Reel Assembly 5. Disassembly of Micro Switch and Gear Assembly 1) Pull out the one lead wire. 1) Remove the two screws fastening the connetor pipe. 2) Lift the cord reel assembly from body base. 2) Pull out the bending pipe. Connector Pipe Cord Real Assembly...
-
Page 7: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE 1. SWITCH ON BUT MOTORS DO NOT TURN. CHECKING CAUSE SOLUTION CHECK THE POWER Poor plug insertion Insert again SOURCE Power cord cut Repair or exchange Interior lead wire cut Exchange the lead wire Motor(stator armature) coil cut Exchange the motor or damaged Poor switch contact point... - Page 8 3. SWITCH OFF BUT MOTOR TURNS Poor switch Exchange the switch Repair the slide volume of hose Poor connection or triac of PWB assembly 4. WEAK SUCTION POWER Motor armature cut Exchange the motor Foreign matters attached to Low rotation speed Remove the foreign matters the impeller Inquire to the power utility...
- Page 9 5. VIBRATION NOISES Loose parts Secure firmly Unbalanced motor assembly Exchange or repair the motor Foreign matters are attached Remove the foreign matters to the impeller Armature is cut or foreign Exchange the motor matters attached Remove foreign matters 6. RADIO, TV RECEPTION DISTURBANCE Poor cord, lead wire Exchange cord, lead wire Poor electric connector or...
-
Page 10: Schematic Diagram
SCHEMATIC DIAGRAM Blue Slide volume Compression Blue Motor Brown Brown Main Motor Brown Blue Blue Cord reel -10-... -
Page 11: Exploded View
#EV# EXPLODED VIEW BODY BASE ASSEMBLY ACQBM1 VC83******* VC88******* VK88******* VK98******* MCQBZ1 MCKBM1 MCQBM1 EAUBA1 ACQBM2 AHDBR1 ADQBE1 MCKBE1 MDSBA6 MDSBA5 MDSBA4 EADBS5 MEKBM1 EADBS4 EBRBM1 ABNBA1 MCKBW1 MDSBA3 AJWBA1 MAMBB1 MCDBA1 MBDBB8 AHJBA1 MBDBB9 -11-... - Page 12 #EV# BODY COVER ASSEMBLY MBLTT2 MCKCH1 MEBCC2 MCKCA1 MKCCV1 MBGCB1 MEGCH2 MEGCH1 MBGCP1 MCKCS1 MBGCR1 MCKCB1 MFGCL1 MCKCZ1 MDSCA2 EADCS2 MJHCS1 MJHCM1 MGECB1 MDTCG1 MGECC1 EADCS1 EAUCM1 -12-...
- Page 13 #EV# ACCESSORIES/TANK ASSEMBLY DUST/GUIDE ASSEMBLY AIR MDJCM1 AECCG1 MDJCM2 AJLTD1 AEMAF1 AGRPT1 MFVAC1 -13-...
- Page 14 #EV# ACCESSORIES 1 Turbine Quilt DUSST BRUSH UPHOLSTERY -14-...
- Page 15 #EV# ACCESSORIES 2 Nozzle Type Turbine Quilt DUSST BRUSH UPHOLSTERY -15-...
