Summary of Contents for LG VC3316GHTMY

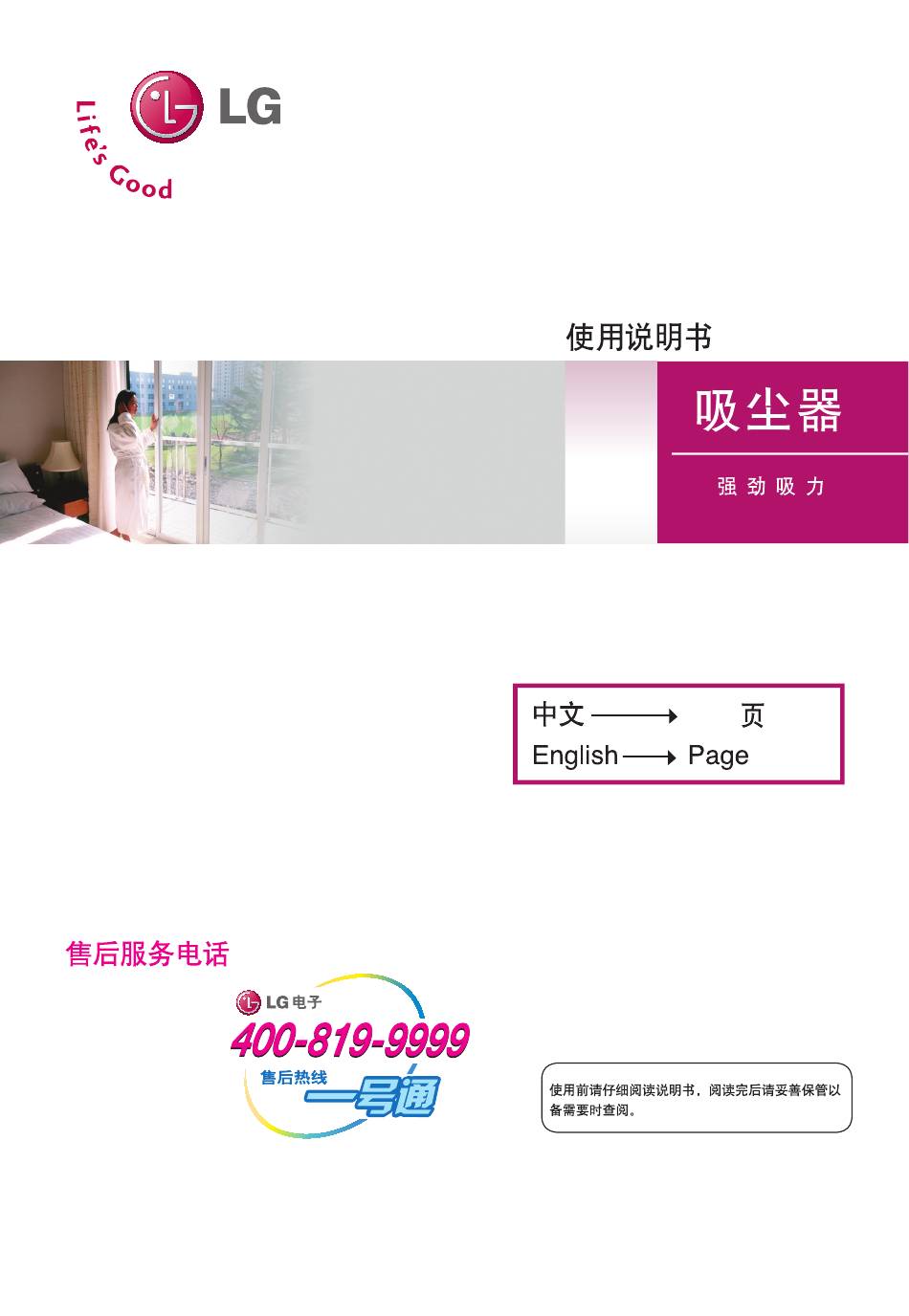

- Page 1 VC3316GHTMY 1-14 15-27...
- Page 2 VC3316GHTMY 220V~ 50Hz 1400W 1600W 4.7Kg 1.2L 270mmX400mmX240mm...
- Page 15 How to separate, clean and assembly the dust tank and the motor protection filter How to separate, clean and assemble exhaust filter Disassembling Cleansing Assembling If you have a problem 25~26 Packing List VC3316GHTMY 220V~ 50Hz 1400W 1600W 4.7Kg Dust Capacity: 1.2L 270mmX400mmX240mm...
- Page 18 Parts description and assembly Cleaning the dirtiest environment. Middle Cleaning fabrics and mattress bedding , sofa, chair, floor. Cleaning door and window curtain, table, and light blanket. Adjusting to”关闭” when you stop operating the appliance. Flexible Hose Control button Cord winding Telescopic tube Button Crevice tool...
- Page 19 Using and cleaning method of all the accessory nozzles Using Upholstery Nozzle & Dust Brush & Crevice Tool Use it as shown in the diagram Dust brush can be used to clean the picture frame,furniture brim, book and other irregular surface. Upholstery nozzle can be used to clean upholstery,mattresses, etc.
- Page 20 Using and cleaning the Sani Punch Set the suction power control switch to Middle between “ ” and “ ” before vacuuming. Depending on the type of bedding, handing may be awkward or it may cause a lot of noise. If this is the case, adjust the suction power control switch to a lower setting.
- Page 21 Using the Mop and Mop Nozzle Using the Mop When using the mop nozzle, please dry it first. Always using special mop of LG. Attach the mop to the bottom of the nozzle with the white surface upturned. When drying the mop in washing machine, set it to the weakest mode.
- Page 22 Using the Mop and Mop Nozzle Using the Mop Disconnecting method 1.After cleaning，press the treadle of mop board to separate the mop and mop board. Then you can take off the dirty mop. Cleaning method 1.After cleaning , if the suction inlet blocked by scraps of paper, toothpicks or other foreign matter, please open the transparent cover then clean the nozzle.
- Page 23 How to separate, clean and assembly the dust tank and the motor protection filter How to separate, clean and assembly the dust tank pull Press the ‘PUSH’ button Washing dust tank with cold water after emptying the dust. dry it fully in shade so that moisture is removed entirely.
- Page 24 How to separate, clean and assemble exhaust filter Disassembling The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry. Button of the exhaust filter The exhaust filter Shake off the exhaust filter.
- Page 27 Crevice tool Sani Punch...
- Page 28 MFL67892726...
