2-9

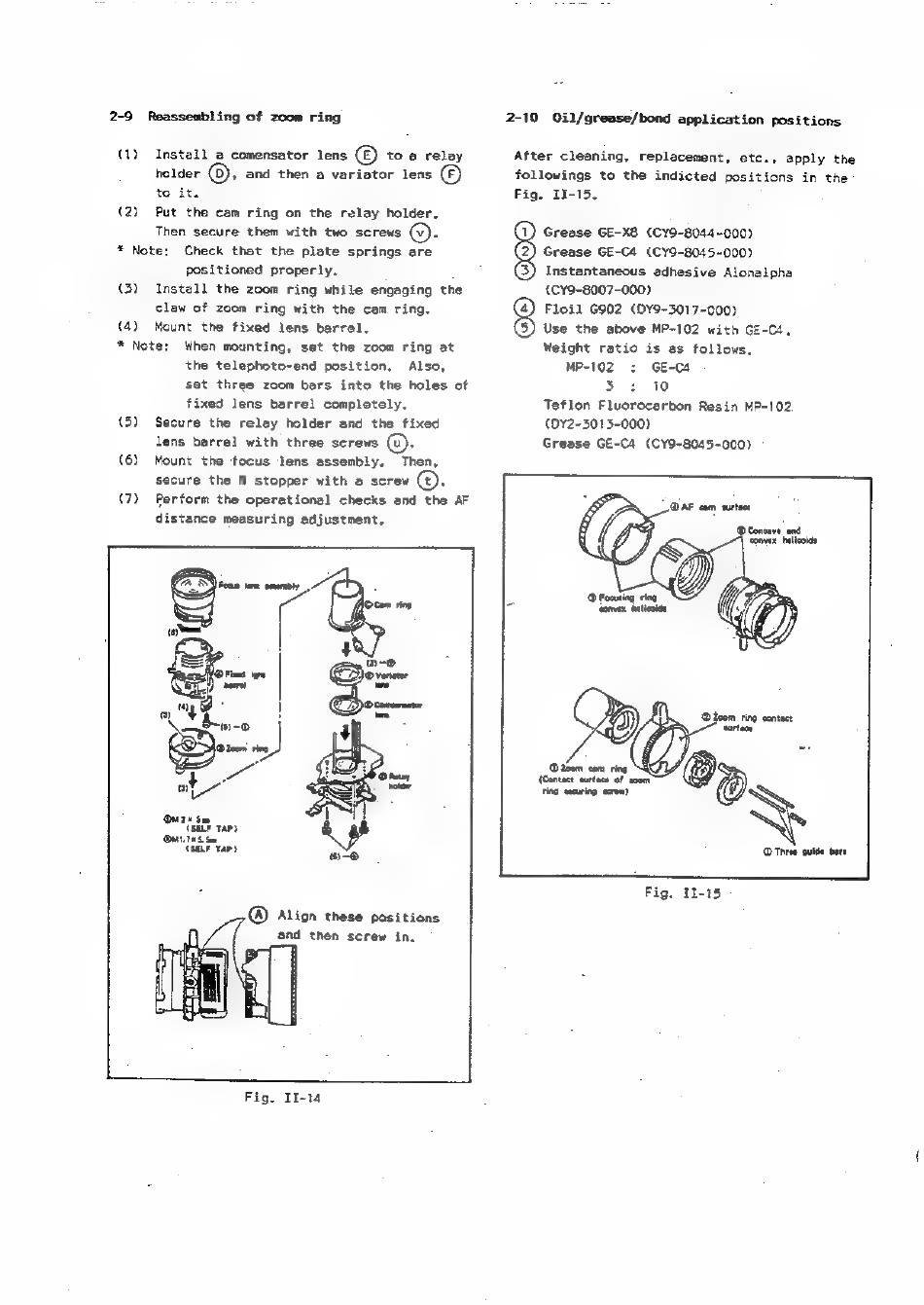

Reassembling of zoom ring
(1)
Install 2 comensator lens (E) to a relay
holder ()
to it.
(2)
Put the cam ring on the relay holder.
Then secure them with two screws (v).
* Note:
Check that the plate springs ere
positioned properly.
(3)
Install the zoom ring while engaging the
claw of zoom
ring with
the
cam
ring.
(4) Mount the fixed lens barrel.
* Note:
When mounting, set the zoom ring at
the telephoto-end position.
Also,
set three zoom bers into the holes of
fixed lens barrel completely.
(5)
Secure the relay holder and the fixed
lens barrel with three screws @).
(6) Mount the focus lens assembly.
Then,
secure the N stopper with a screw (¢).
(7)
Perform the operational checks and the AF
distance measuring adjustment.
» and then a variator
lens
@® Align these positions
and
then
screw
in.
Fig.
[I-14
2-10
Oil/grease/bond application
positions
After
cleaning,
replacement,
etc.,
apply
the
followings to the indicted positions in the
Fig. II-15.
Grease GE-X8 (CY9-8044-000)
Grease GE-C4 (CY9-8045-000)
Instantaneous adhesive Alonaipha
«CY9-8007-000)
Floil 6902 (DY9-3017-000)
Use the above MP-102 with GE-C4.
Weight ratio is as follows.
MP-102
: GE-C4
3:
10
Teflon Fluorocarbon Resin MP-102
(DY2-3015-000)
Grease GE-C4 (CY9-8045-000)
© G8O
® Focusing ring
convex. belicoids
Three guide bere
—_
