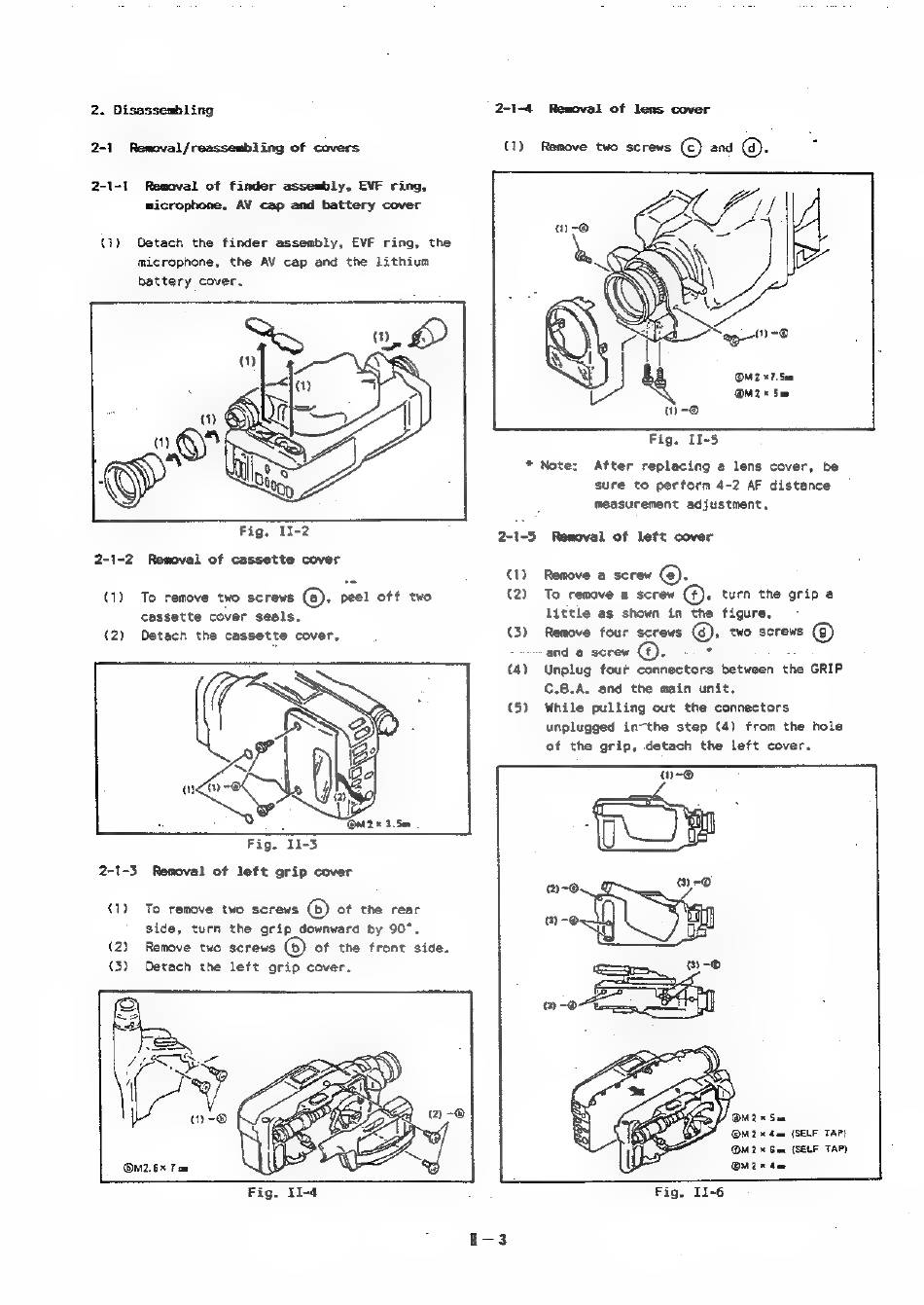

2. Disassembling 2-1-4 Removal of lens cover
2-1 Removal/reassembling of covers (1) Remove two screws () and ©.
2-1-1 Removal of finder assembly, EVF ring,
microphone, AV cap and battery cover
(1) Detach the finder assembly, EVF ring, the
microphone, the AV cap and the lithium
battery cover.
OM2 x7. Sem
OM2* Sm
-@
Fig. I1-5
* Note: After replacing a lens cover, be
sure to perform 4-2 AF distance
measurement adjustment.
Fig. I1-2 2-1-5 Removal of left cover
2-1-2 Removal of cassette cover
(1) Remove a screw @).
(1) To remove two screws (a), peel off two (2) To remove a screw @. turn the grip a
cassette cover seals. little as shown in the figure,
(2) Detach the cassette cover, (3) Remove four screws , two screws
and @ screw (). .
(4) Unplug four connectors between the GRIP
C.B.A. and the main unit.
(5) While pulling out the connectors
unplugged in-the step (4) from the hole
of the grip, detach the left cover.
2-1-3 Removal of left grip cover
(1) To remove two screws (6) of the rear
side, turn the grip downward by 90°.
(2) Remove two screws (6) of the front side.
(3) Detach the left grip cover.
@M2 x 4am (SELF TAP)
M2 * Gem (SELF TAP)
OM2.6% Tom OM x de
Fig. 11-6
