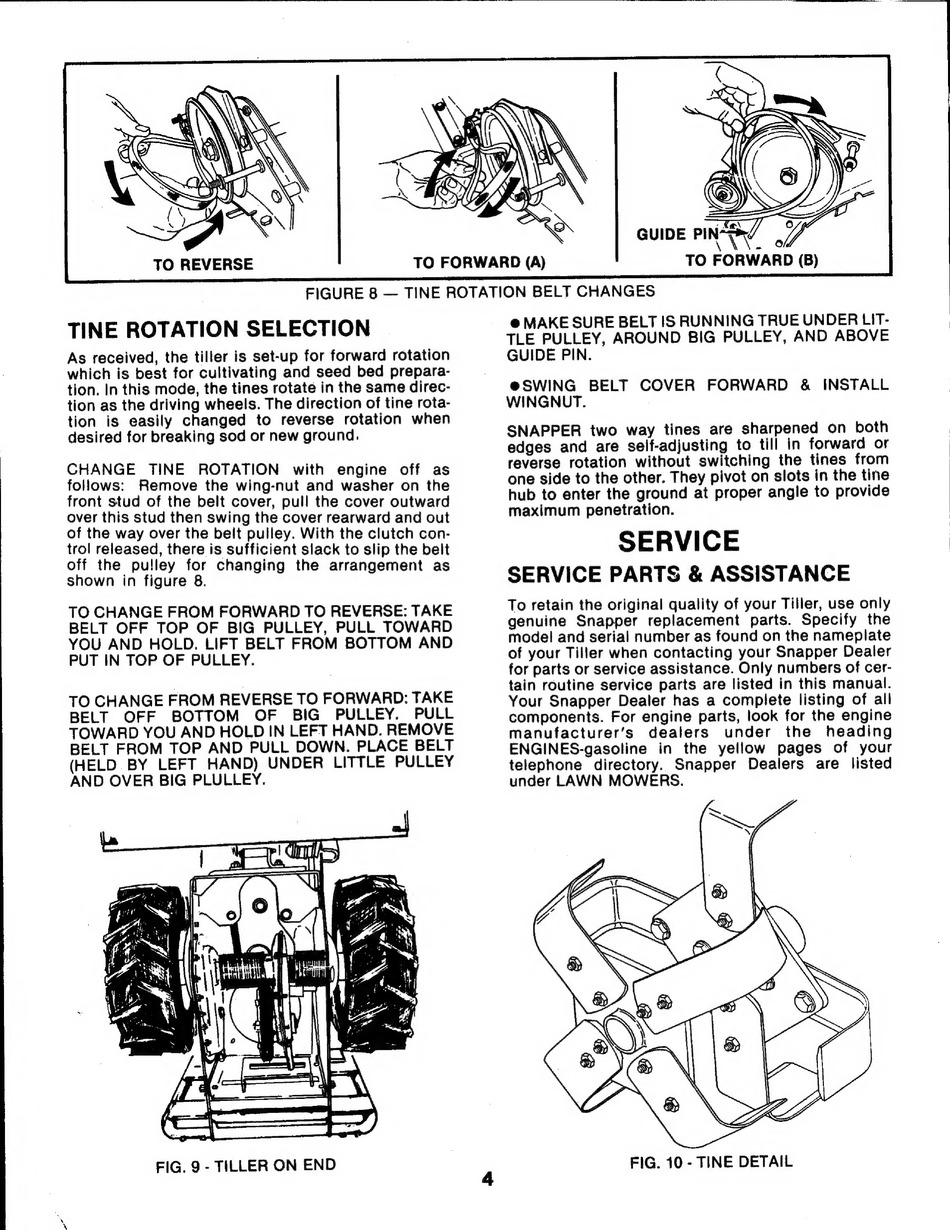

TO REVERSE
TO FORWARD (A)
GUIDE PIN"
TO FORWARD (B)
TINE ROTATION SELECTION
CHANGE TINE ROTATION with engine off as
follows: Remove the wing-nut and washer on the
front stud of the belt cover, pull the cover outward
over this stud then swing the cover rearward and out
of the way over the belt pulley. With the clutch con-
trol released, there is sufficient slack to slip the belt
off the pulley for changing the arrangement as
shown in figure 8.
TO CHANGE FROM FORWARD TO REVERSE: TAKE
BELT OFF TOP OF BIG PULLEY, PULL TOWARD
YOU AND HOLD. LIFT BELT FROM BOTTOM AND
PUT IN TOP OF PULLEY.
> ) CITT p=
Fry N]
@SWING BELT COVER FORWARD & INSTALL
WINGNUT.
SERVICE
SERVICE PARTS & ASSISTANCE
To retain the original quality of your Tiller, use only
genuine Snapper replacement parts. Specify the
model and serial number as found on the nameplate
of your Tiller when contacting your Snapper Dealer
for parts or service assistance. Only numbers of cer-
tain routine service parts are listed in this manual.
Your Snapper Dealer has a complete listing of all
components. For engine parts, look for the engine
manufacturer's dealers under the heading
ENGINES-gasoline in the yellow pages of your
telephone directory. Snapper Dealers are listed
under LAWN MOWERS.
FIG. 10 - TINE DETAIL
