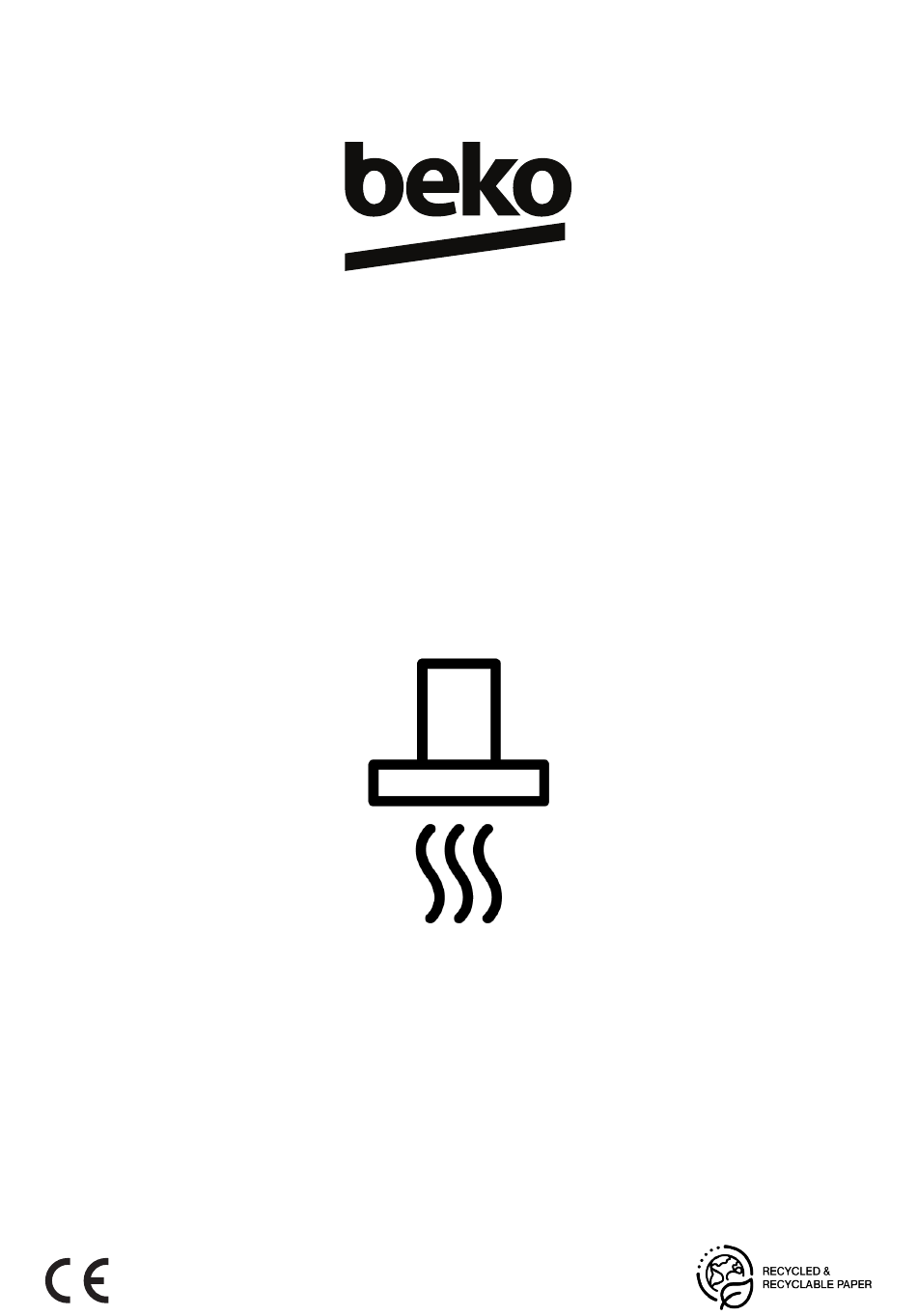

- Page 1 Hood User Manual BHCA66741BBHS 185732222/ EN/ R.AA/ 07/02/2023 15:56 7704331221...
- Page 2 Welcome! Dear Customer, Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product. Keep in mind all the information and warnings stated in the user’s manual.
-
Page 3: Table Of Contents
Table of Contents 1 Safety Instructions......General Safety ....... Electrical Safety......Product Safety ....... Intended Use........Child, Vulnerable Persons and Pet Safety........Transportation Safety ....2 Environmental Instructions..Waste Directive......2.1.1 Compliance with the WEEE Dir- ective and Disposing of the Waste Product ...... -
Page 4: Safety Instructions
1 Safety Instructions • This section includes the General Safety safety instructions necessary • This product can be used by to prevent the risk of personal children 8 years of age and injury or material damage. older, and people who are un- •... -
Page 5: Electrical Safety
• This product is not intended • Call the authorized service for for use by persons (including the installation of the product children) with limited physical, to be used. The warranty term sensory or mental capacity or starts after this process. without knowledge or experi- •... -
Page 6: Product Safety
facturer, the manufacturer's Product Safety service centre or a similar • Height between the bottom qualified person. surface of your hood and the • If the cable is damaged, con- top surface of the oven should tact our nearest service centre be no less than 650 mm for and have a new one installed. - Page 7 • Do not expose the appliance to • If there is another appliance open flame. It may cause the operating with fuel oil or oil accumulating in the filter to gaseous fuels in the environ- catch fire. Do not operate the ment, adequate ventilation of appliance without a filter.
-
Page 8: Intended Use
• There is a risk of fire if clean- performed by children unless ing is not carried out in accord- there is someone overseeing ance with the instructions. them. • There should not be open fire • This product should not be under the hood. -
Page 9: Environmental Instructions
tightly with tape to prevent the • Check the overall appearance removable or moving parts of of the product for any damage the product and the product that may have occurred during from getting damaged. transportation. 2 Environmental Instructions administration about these collection 2.1 Waste Directive points. -
Page 10: Your Product
3 Your product 3.1 Product Introduction 1 Hood body 2 Hood glass lid 3 Damper 4 Aluminium filter 5 Lamp 6 Lamp 7 Aluminium filter lock 8 Control panel Wall mounting part Dependent on the model. It may not be avail- able on your product. - Page 11 Air router Flue connection adapter Covers to prevent reverse airflow EN / 11...
-
Page 12: Technical Specifications
3.3 Technical Specifications Product external dimensions (height/width/depth) (mm) min. 910 - max. 1138 /595 /419 Voltage/Frequency 220-240 V ~1N; 50 Hz Total power consumption max. 300 W Suction power 700-720 m3/h Diameter of air outlet pipe 120-150 mm Control Model A 3 levels Model B 3 levels + 1 booster... -
Page 13: Using The Hood
4 Using the Hood The hood has an engine with various MODEL C speeds. For a good performance, we re- commend using low speeds under normal conditions and high speeds in case of strong odour and vapour condensation. The program is cancelled if power is cut when any program in your hood is active. - Page 14 In intensive ventilation mode, when You can only change the light col- any speed key is touched, it returns our shade while the lamp has high to that speed level and continues to light intensity. operate. In the event of a power outage, your Operating the lamp hood will remember the colour 1.
- Page 15 If the ambient temperature differ- The warning is not cancelled if the ence occurs even when the hob is power is cut when the hood gives not operating while the automatic aluminium filter fill warning. When mode is active, the temperature the power is available, it continues sensor in the product will detect the to warn with the light of Speed 2...
-
Page 16: Maintenance And Cleaning
If you turn off the warning without replacing the carbon filter, the oper- ating time of 100 hours is reset and it starts over. At the end of the next 100 hours, warning is given again. 5 Maintenance and Cleaning 5.1 General Cleaning Information 5.2 Aluminium Filter General warnings... -
Page 17: Hood Lamp
2. Gently pull the filter towards you first • If you do not follow the rules for cleaning and pull it upwards to remove it from its and replacing the filters of your hood, you slot. may cause a fire. Removing carbon filters 1. - Page 18 Hood light is not on. • Hood lamp may be faulty. >>> Contact your local dealer where you purchased your product or the Customer Service, and ensure that the lamp is replaced. • There may be no electricity. >>> Ensure the mains is operational and check the fuses in the fuse box.
