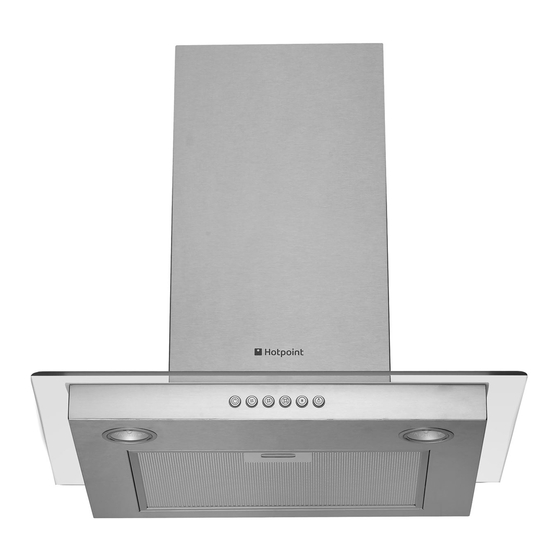

- Page 1 HDF6.5SAB HDA6.5SAB HDF7.5SAB HDF9.5SAB HDA9.5SAB HDA7.5SAB English Operating Instructions COOKER HOOD Contents Operating Instructions,1 Warnings,7 Installation,9 GLASS controls,10 Maintenance and care,11 Troubleshooting,12 After Sales Service,14 Guarantee,15...
- Page 2 Ø 8 x 40 Ø 5 x 45 Ø 3,5 x 9,5 ø 150-125mm ø 150mm...
- Page 3 Ø120mm Ø120mm Ø150mm Ø150mm Ø120 Ø120 Ø150 Ø150 Ø150mm...
- Page 4 Ø...
- Page 5 ø 150 ø 120...
- Page 6 ø 150 ø 3,5 x 9,5...
-
Page 7: Warnings
• Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the Warnings main circuit breaker. ! Keep this manual for reference. If you • Always wear work gloves when installing sell, transfer or move the unit to another and servicing the unit. - Page 8 • Strictly observe all local regulations in relation to the technical and safety measures to be employed in fumes extraction. • Clean the product frequently, inside and out (AT LEAST ONCE A MONTH, and in observance of the maintenance instruction given in this manual). • Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires.
-
Page 9: Installation
! Use a duct with as few bends as possible Model code Bulb (V) Bulb draw (W) Total draw (W) ! Avoid suddenly changing the diameter of the duct. HDF6.5SAB ! The duct must have as smooth an inner surface as HDA6.5SAB possible. HDF7.5SAB ! The duct must be made of regulatory material. -
Page 10: Glass Controls
Pressing the button sets the hood to speed 3. To save the new confi guration press T1 individually. T5 Lights ON/OFF Models with soft button keypad and display (Only available in certain models) Models with soft button keypad HDF6.5SAB HDA6.5SAB T1 T2 T3 T4 T5 T6 HDF7.5SAB HDF9.5SAB HDA9.5SAB... -
Page 11: Maintenance And Care
Grease/odour filter warnings Periodic cleaning The bar at the top left flashes to indicate The hood must be cleaned frequently (at least as often as that the grease filter is saturated. you service the grease filter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water. Do not use abrasive or corrosive products. Warning: Failure to observe the hood cleaning and filter The bar at the top right flashes to indicate cleaning/replacement instructions can result in fires. Follow that the odour filter is saturated. the instructions carefully. The manufacturer is not liable for any damage to the motor or fires caused by incorrect care or failure to follow the above instructions. -
Page 12: Troubleshooting
in accordance with local waste disposal regulations. For Replacing the bulbs Disconnect the unit from the mains and remove the grease further information on the handling, recovery and recycling filter. of this product, contact the local authority, domestic waste Caution! Make sure the bulbs are cool before touching disposal service or the reseller from whom you purchased it them. - Page 13 PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
-
Page 14: After Sales Service
After Sales Service No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the manufacturer. Essential Contact Information Hotpoint Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service. -
Page 15: Guarantee
5 Year Parts Guarantee Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time. - Page 16 195107501.04 07/2013 - XEROX FABRIANO PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
