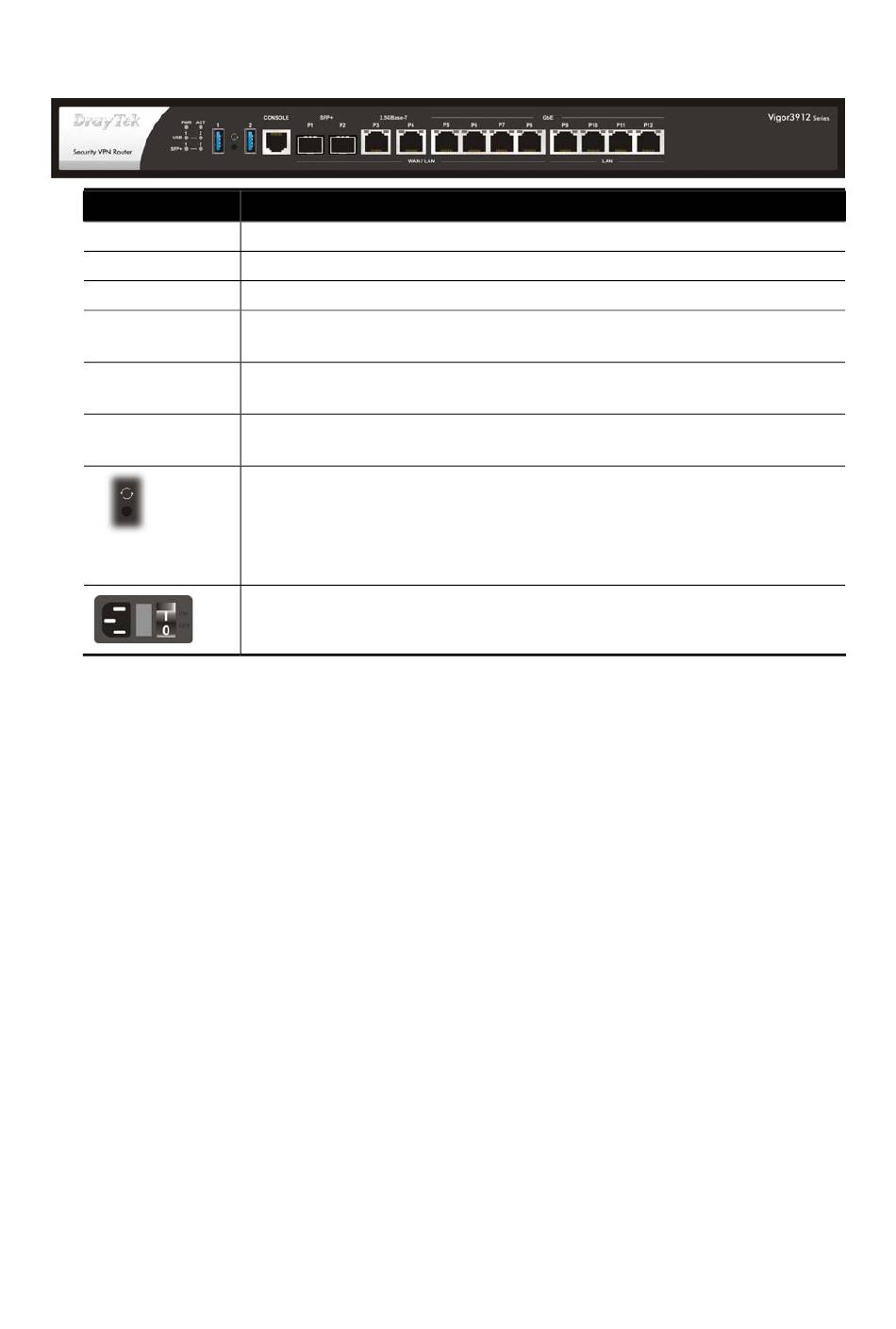

Interface
Description
USB1 / USB2
Connecter for the USB device.
Console
Provided for technician use.
SFP+ P1~P2
Connecter for SFP module with the rate of 10G/1G bps.
2.5GBase-T
Connector for remote network devices or local network devices
(P3~P4)
(WAN/LAN) with the rate of 2.5G/1G/100M/10M bps.
Connectors for remote network devices or local network devices
GbE P5~P8
(WAN/LAN) with the rate of 1G/100M/10M bps.
Connecter for local network devices (LAN) with the rate of
GbE P9~P12
1G/100M/10M bps.
The Factory Reset button is used to restore the default settings.
Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink
rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
Connecter for a power cord.
ON/OFF - Power switch.
