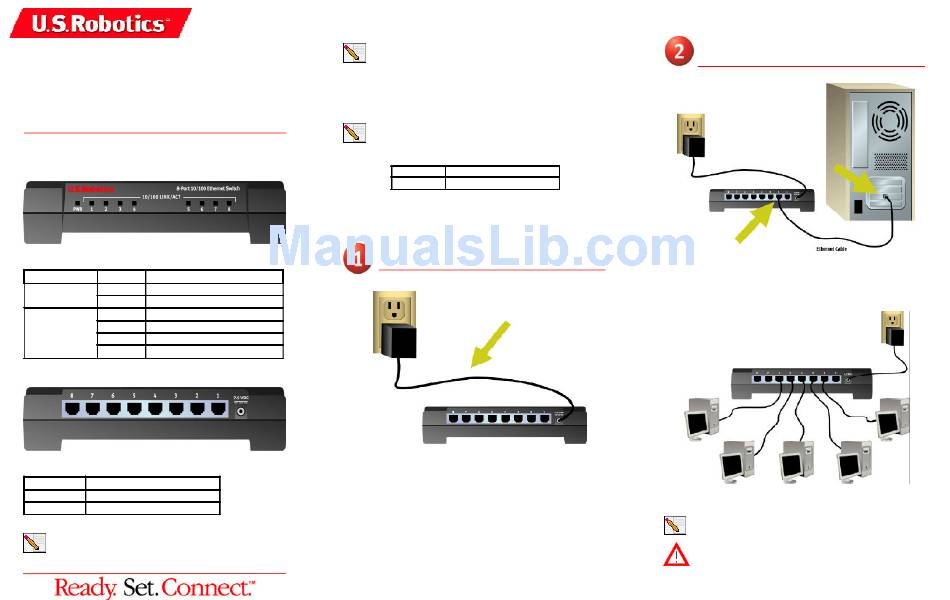

US Robotics USR7908 Quick Installation Manual

8-Port 10/100 Ethernet Switch
Quick Installation Guide
Package Contents:
- 8-Port 10/100 Ethernet Switch - Quick Installation Guide
Front View
LEDs Color - Action
Green - Lighted Receiving power
PWR
Green - Off Not receiving power
Green - Lighted 100 Mbps LAN link is achieved
10/100 LINK/ACT 1-8
The corresponding LAN port is sending and receiving data
Green - Blinking
at 100 Mbps.
(Each LED corresponds with
a LAN port on the back of Yellow - Lighted 10 Mbps LAN link is achieved
the switch.)
The corresponding LAN port is sending and receiving data
Yellow - Blinking
at 10 Mbps.
Back View
Port Function
LAN Ports 1 through 8
Used to connect Ethernet devices to the LAN
7.5 V DC For the power supply of the 8-Port 10/100 Ethernet Switch
Note: You must have an Ethernet NIC installed on each computer you wish to connect
to the 8-Port Ethernet Switch.
Note: For more information, you can also refer to the Support section of the U.S.
Robotics Web site at
Before You Begin
- 7.5VDC power supply
Note:
install the 8-Port 10/100 Ethernet Switch. You can find your serial number on the
bottom label of the 8-Port 10/100 Ethernet Switch and on the side of the package. If
you ever need to call our Technical Support department, you will need this number
to receive assistance.
Connect the power supply
Function
http://www.usr.com/support
It is important that you have your serial number written down before you
Product Number Serial Number
7908
Connect your 8-Port 10/100 Ethernet Switch to
your Ethernet-ready device
Congratulations!
The installation of your U.S. Robotics 8-Port 10/100 Ethernet Switch is
complete. As connections are established with the 8-Port 10/100 Ethernet Switch, the
corresponding LED lights will turn on. Repeat this step as needed for up to seven
additional devices.
This is one of many possible configurations.
Note: For networking information, refer to your operating system's
documentation.
Register your product online at http://www.usr.com/productreg
