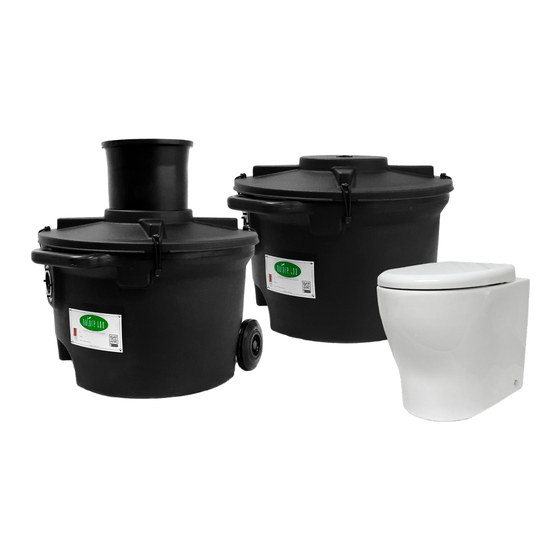

- Page 1 NATURE LOO CLASSIC 650 INSTALLATION & OPERATION MANUAL IMNL-009-2024-01-09 ©Ecoflo Wastewater Management Pty Ltd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ITEMS REQUIRED (NOT INCLUDED) TOOLS REQUIRED SCHEMATICS INSTALLATION STEP 1: POSITION THE PEDESTAL STEP 2: POSITION THE WASTE CHUTE STEP 3: INSTALL THE WASTE CHUTE EXTRA LENGTH REQUIRED FOR UNDER-FLOOR AREAS STEP 4: INSTALL THE WHEELS STEP 5: INSTALL THE IN-SERVICE CHAMBER STEP 6: CONNECT THE DWV VENT PIPES AND FAN OPTIONAL EXTRAS STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE... -
Page 3: Items Required (Not Included)
ITEMS REQUIRED (NOT INCLUDED) Please check the packing slip to ensure everything has been delivered. If anything is missing, please notify Ecoflo within 72 hrs of receipt. You will need the following items to complete your installation. Vent items • Wall brackets to fix the vent pipe to the building •... -
Page 4: Schematics
SCHEMATICS Vent cowl Vent Installation 600mm Option 600mm Dektite* 45° bend* If you are planning to excavate an area under the 100mm DWV pipe* house for the compost chambers, please ensure the area is well-drained and any retaining walls are built to the satisfaction of the local authority. Brackets* Pedestal Fan in housing... -
Page 5: Installation
INSTALLATION STEP 1: POSITION THE PEDESTAL Locate the approximate area where you want the pedestal to go before cutting the hole. The usual position for pedestals is centred between side walls. NOTE: Due to the pedestals being man made, the distance to the centre may vary from 245 to 255mm. - Page 6 If there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end of the cut joist, and fix all connections with galvanized framing anchors with 4 nails each leg (refer to diagram below).
-
Page 7: Step 3: Install The Waste Chute
STEP 3: INSTALL THE WASTE CHUTE First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Slide the lid up the chute. Insert the chute into the hole Place the chamber in position Cut off any excess chute length and lower the lid. -
Page 8: Extra Length Required For Under-Floor Areas
EXTRA LENGTH REQUIRED FOR UNDER-FLOOR AREAS If the underfloor height exceeds 900mm (floor-to-floor), you will require additional lengths of chute, fixed together with small stainless steel self-tapping screws below the flange of the additional waste chute. As the chute joints are tapered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below. -
Page 9: Step 5: Install The In-Service Chamber
STEP 5: INSTALL THE IN-SERVICE CHAMBER Add an even layer of bulking agent to A rubber seal is supplied for the the chamber, high enough to reach ‘In-service’ lid to prevent any odour the bottom of the mixer arm. Slightly emitting from the chamber. -
Page 10: Step 6: Connect The Dwv Vent Pipes And Fan
Dektite* STEP 6: CONNECT THE DWV VENT PIPES AND FAN 45° bend* The fan is IP68 rated so will not be effected by moisture. It is recommended that the fan runs 24 hours a day to continuously circulate air through the compost heap. Air is drawn down the toilet pedestal through the compost chamber and out the vent pipe. -
Page 11: Step 7: Connect The Flexible Vent Pipe And Liquid Drain Hose
STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE Air Vent Outlet Screw the 50mm MI connector into here See image 1 Liquid Drain Outlet See image 2 Dip the ends of the vent pipe into hot water for easier insertion of the pipe connectors. -
Page 12: Powering Your Fan
POWERING YOUR FAN A 120 /12 volt regulated transformer is included to run the fan from mains power. The positive wire the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. Connect the fans to the transformer as follows: Unscrew the fan housing cover. -
Page 13: Leachate Drain
LEACHATE DRAIN A leachate drain kit (not including gravel) is available to purchase separately from Ecoflo Wastewater Management. Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked slotted Ag pipe, buried in an absorption trench as shown in the diagram below. -
Page 14: Composting Accelerators
COMPOSTING ACCELERATORS Whilst users report successful composting without the use of any additives, we strongly recommend the use of the following items in order to optimize composting, particularly when the toilet is in permanent use by more than two people. ulking genT When starting or restarting with an empty chamber, add a 50mm starter... -
Page 15: Starting With An Empty Chamber
STARTING WITH AN EMPTY CHAMBER Before connecting your chamber to the waste chute, add an even 50mm layer of bulking agent and dampen slightly with water. Complete the installation of the chamber (refer to Step 5, Install the In-Service Chamber). You can start using your chamber now. 50mm of bulking agent Slightly dampen the... -
Page 16: Maintenance
MAINTENANCE Aily or eekly • Clean rest room and toilet fixtures using only biodegradable cleaners (enzymes) • Add 1 cup of bulking agent to toilet after every solid use. onThly • Inspect the ‘In-service’ chamber. Depending on usage, prepare an empty chamber for use once the chamber becomes full. -
Page 17: Rotating The Chambers
ROTATING THE CHAMBERS The chambers will need to be changed on a regular basis. A sufficient number of chambers must be purchased to allow the ‘out-of-service’ chamber a minimum of 6 months to compost (depending on the climate) from the time they are disconnected from the waste chute. AfeTy WeAr When handling compost it is important protect yourself from exposure to any potential pathogens. - Page 18 oW cAn Tell if my composT is reADy The size of the pile should have reduced in size by approximately 20%. Finished compost should appear crumbly and moist (similar to fresh potting mix), not sodden or dry. It should not have any offensive odour, just an earthy one.
-
Page 19: Troubleshooting
This secTion Before using your ToileT Nature Loo toilets have proven themselves to be one of the easiest systems to manage. However, being a natural process, reliant on a number of factors beyond our control, it can occasionally need some help to maintain an appropriate balance. - Page 20 ‘ ’ he oDour from The service chAmBer is unpleAsAnT If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the pile with straw or dry grass clippings.
-
Page 21: Product & Component Warranty
PRODUCT & COMPONENT WARRANTY Ecoflo will furnish new parts to a customer whose toilet fails within the allotted warranty period for the particular component, provided that our inspection shows such failure is due to defective material or workmanship. Any part supplied is warranted for the balance of the original warranty period. The warranty period for a part begins from the date the original product was dispatched (plus 10 working days for transportation). -
Page 22: Maintenance Schedule
MAINTENANCE SCHEDULE Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as you rotate your chambers. Model: ______________ Date First Put into Service: _____/_____/________ The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’. - Page 23 Ecoflo Wastewater Management Pty Ltd ecoflo.com.au natureloo.com.au Phone: 1300 138 182 (07) 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMNL-009-2024-01-09 ©Ecoflo Wastewater Management Pty Ltd Page 21...
