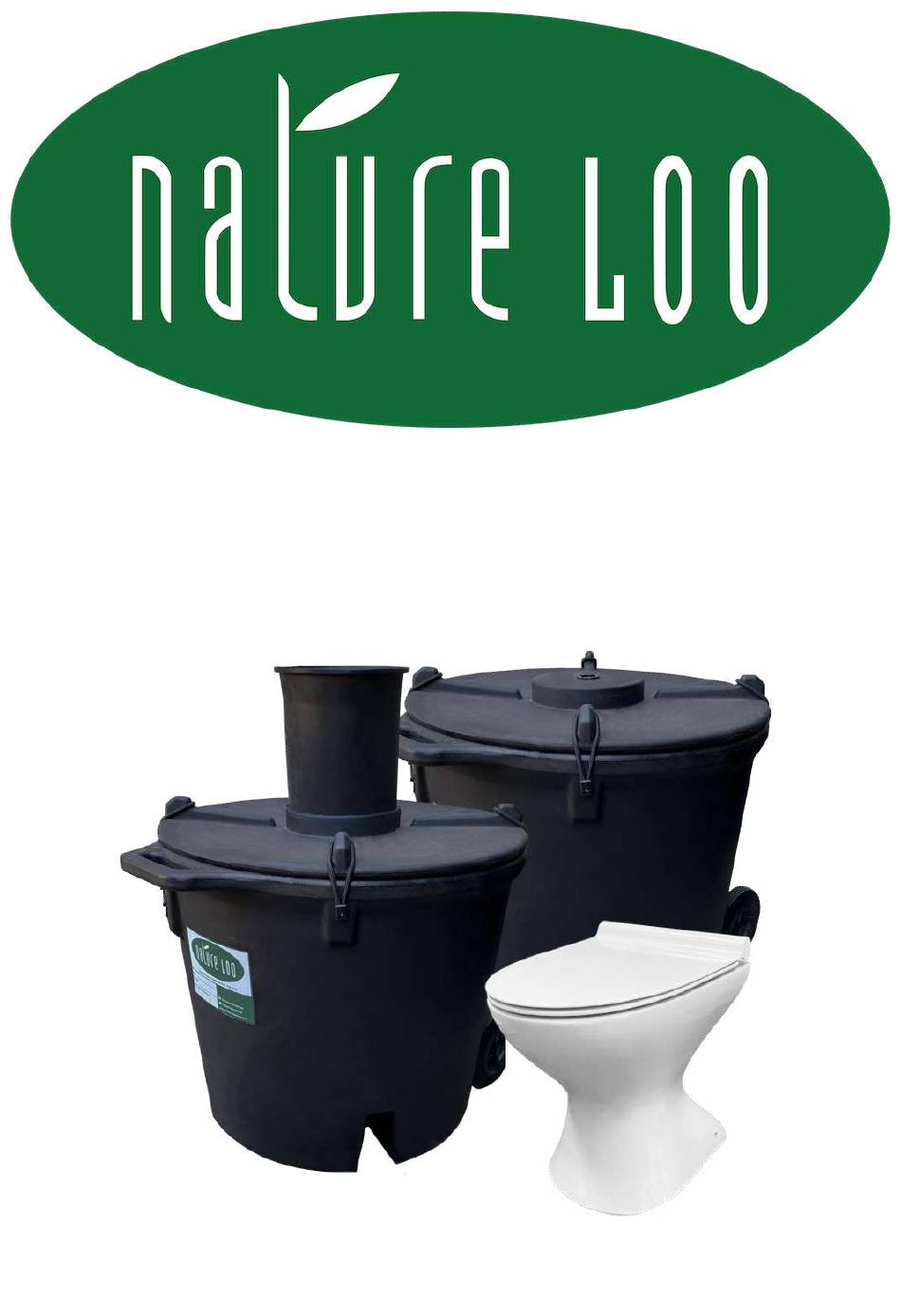

- Page 1 CLASSIC 850 INSTALLATION AND OPERATION MANUAL IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WHAT’S IN THE BOX? TOOLS REQUIRED CLASSIC 850 SCHEMATICS INSTALLATION POWERING YOUR FAN EXCESS LIQUID ABSORPTION TRENCH COMPOSTING ACCELERATORS CARE & MAINTENANCE ROTATION OF CHAMBERS TROUBLESHOOTING PRODUCT & COMPONENT WARRANTY MAINTENANCE SCHEDULE APPENDIX 1 IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd... -
Page 3: What's In The Box
WHAT’S IN THE BOX? Please check the packing slip to ensure everything has been delivered. If anything is missing, please notify your supplier within 72 hrs of receipt. Items you will need to complete your installation: • Wall brackets to fix the vent pipe to the building •... -
Page 4: Classic 850 Schematics
CLASSIC 850 SCHEMATICS Vent Installation Option 1 Vent Installation Option 2 Optional If you are planning to excavate an area under the house for the compost chambers, please ensure the area is well-drained and any retaining walls are built to the satisfaction of the local authority. -
Page 5: Installation
INSTALLATION STEP 1: POSITION THE PEDESTAL DIAGRAM Locate the approximate area where you want the pedestal to go before cutting the hole. The usual position for pedestals is centred between side walls. NOTE: Due to the pedestals being man made, the distance to the centre may vary from 245 to 255mm. Please check before cutting the hole. - Page 6 Go to the underfloor area and look for the hole you have drilled. Check to see if there is a floor joist, water pipe or electrical wiring under the area you are going to cut. NOTE: If there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end of the cut joist, and fix all connections with galvanised framing anchors with 4 nails each leg (refer to diagram below).
- Page 7 STEP 3: INSTALL THE WASTE CHUTE First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Insert the chute into the hole Mark position IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd Page 7...
- Page 8 Extra Length Required for Under-Floor Areas If the underfloor height exceeds 1200mm (floor-to-floor), you will require additional lengths of chute, fixed together with small stainless steel self-tapping screws below the flange of the additional waste chute. As the chute joints are tappered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below.
- Page 9 STEP 4: INSTALL THE WHEELS STEP 5: INSTALL THE COMPOST CHAMBER 1. Add 50mm Bulking Agent to the Chamber. 2. Connect the lid to the waste chute, position the chamber under the lid, then hook the bungee loops around the lid. IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd Page 9...
- Page 10 STEP 6: CONNEC THE VENT PIPE AND FAN TO THE ‘IN-SERVICE’ CHAMBER The fan runs 24 hours a day to continuously circulate air through the compost heap. Air is drawn down the toilet pedestal through the compost chamber and out the vent pipe. Airflow Fan and Vent Pipe Installation Details 100mm Pipe...
- Page 11 STEP 7: CONNECT THE FLEXIBLE AIR HOSE AND EXCESS FLUID HOSE TO THE CHAMBERS Classic 850 Chamber Breather Outlet IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd Page 11...
-
Page 12: Powering Your Fan
POWERING YOUR FAN Mains Power A 240/12 volt regulated transformer is included to run the fan from mains power. The positive wire on the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. Connect the fans to the transformer as follows: We recommend a spare fan is kept on hand at all times, particularly after a year of use. -
Page 13: Composting Accelerators
COMPOSTING ACCELERATORS Whilst Nature Loo users report successful composting without the use of any additives, we strongly recommend the use of the following items (not included in the package) in order to optimise composting, particularly when the toilet is in permanent use by more than two people. -
Page 14: Care & Maintenance
CARE & MAINTENANCE DAILY OR WEEKLY • Clean restroom & toilet fixtures using only biodegradable cleaners. • Add 1 cup of bulking agent to toilet after every solid use. MONTHLY • Inspect the ‘In-service’ chamber, depends on usage, prepare another ‘In-service’ chamber for use once the chamber becomes full (refer to Rotation of Chambers, page 15). -
Page 15: Rotation Of Chambers
Your first rotation of the chambers: The Nature Loo composting toilet chambers will need to be changed on a regular basis. A sufficient number of chambers must be purchased to allow the ‘Out-of-service’ chamber to have a minimum of 6 months (depending on climate) from the time they are disconnected from the waste chute. -
Page 16: Troubleshooting
Please read this section before using your toilet. Nature Loo toilets have proven themselves to be one of the easiest systems to manage. However, being a natural process, reliant on a number of factors beyond our control, it can occasionally need some help to maintain an appropriate balance. - Page 17 THE ODOUR FROM THE ‘OUT-OF-SERVICE’ CHAMBER IS UNPLEASANT: If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the pile with straw or dry grass clippings.
-
Page 18: Product & Component Warranty
PRODUCT & COMPONENT WARRANTY Ecoflo will furnish new parts to a customer whose toilet fails within the allotted warranty period for the particular component, provided that our inspection shows such failure is due to defective material or workmanship. Any part supplied is warranted for the balance of the original warranty period. The warranty period for a part begins from the date the original product was dispatched (plus 10 working days for transportation). -
Page 19: Maintenance Schedule
Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as you rotate your chambers. Model: Classic 850 Date First Put into Service: _____/_____/________ The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’. -
Page 20: Appendix 1
APPENDIX 1 IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd Page 20... - Page 21 Ecoflo Wastewater Management Pty Ltd www.ecoflo.com.au www.natureloo.com.au Phone: 1300 138 182 (07) 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMNL-008.151121 ©Ecoflo Wastewater Management Pty Ltd Page 21...
