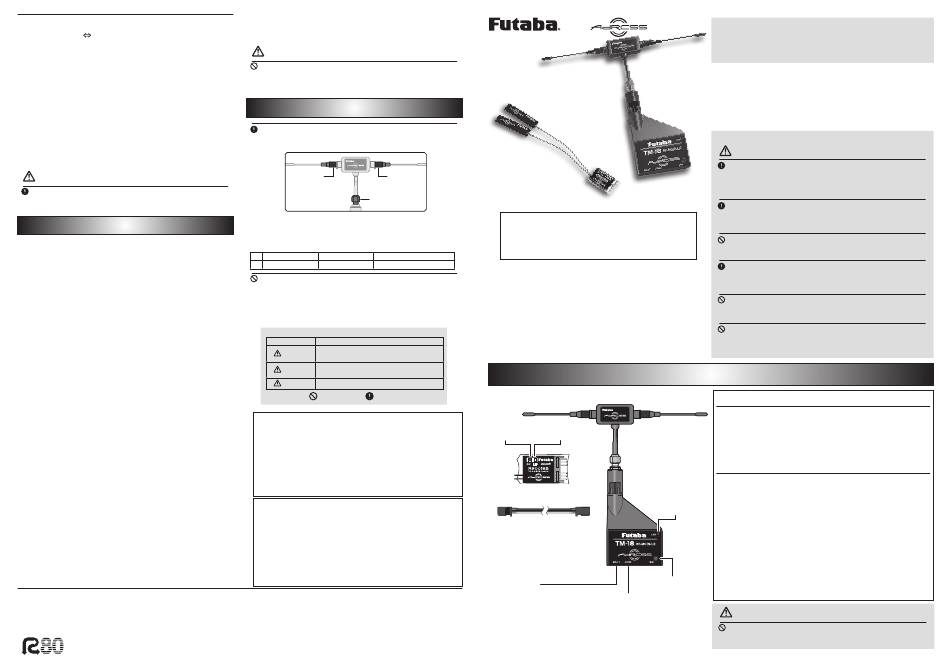

FUTABA TM-18 Instruction Manual

Confirmation of F/S operation
After switching HOLD CH3-F/S mode, check the fail-safe operation by
following the procedure below.
1
Gas-powered models with the engine stopped. For electric airplanes,
the propeller is removed from the motor. For electric helicopters, the
pinion gear is removed from the power motor to ensure that the rotor does
not rotate.
2
Turn on the transmitter and receiver.
3
Wait at least 5 seconds after turning on the transmitter or linking.
4
Turn off only the transmitter.
5
For gas-powered models, check whether the throttle servo reaches the
set slow position; for electric models, check whether the motor stops.
WARNING
When setting and checking the operation of the F/S, stop the engine
for gasoline models and keep the propellers and rotors from rotating for
electric models. Sudden rotation of propellers and rotors may cause injury.
Range Check the Radio Range Check the Radio
For safe use, always perform a distance test before flying. The TM-18 has a
power-down mode (low power mode) dedicated to distance testing.
The distance test method below is for the case where the 2.4GHz Dual RX
Link system receiver on page 3 is connected as an example.
Alternately test both the Futaba AdRCSS 900MHz system and the Futaba
2.4GHz system.
1
Turn on the transmitter and receiver and ensure that both the Futaba
AdRCSS 900MHz and the Futaba 2.4GHz systems are working
correctly.
2
< F u t a b a A d R C S S 9 0 0 M H z s y s t e m d i s t a n c e t e s t >
Keep the receiver side ON, turn the transmitter OFF once, and turn
the transmitter ON again without outputting 2.4GHz radio waves. Press the
tact switch of TM-18 for about 10 seconds. The LED will flash red/green
simultaneously and will be transmitted in a power-down mode for about 90
seconds. The LED returns to solid green. (2.4GHz is off, and 900MHz is in the
power-down mode)
* For information on how to turn on the power without emitting radio waves,
please refer to the instruction manual section "Settings without emitting
radio waves" section for each transmitter. For the T12K, turn on the
transmitter power while pressing RTN, and select "RF OFF" on the power
mode switching screen.
* Please note that if you turn on the transmitter while pressing the tact switch
of TM-18, no radio waves will no emit from TM-18.
* If you press the tact switch of TM-18 again while the power-down mode is
running, the power-down mode will be extended for about 90 seconds.
3
Move away from the plane while operating the stick in a power-down
mode. Move away from the model while using the stick in the power-
down mode. Have your assistant check that all controls are working correctly
at a distance of about 30-50 steps from the plane.
4
At this time, if the servo moves differently from the operation, there
may be some problems. Do not fly until the cause is eliminated.
In addition, check the looseness of the servo connection and the linkage
condition. Also, use a fully charged battery.
5
<Futaba 2.4GHz system distance test>
Turn off the transmitter's power while leaving the receiver's
power on.
6
While pressing the tact switch of TM-18, please turn on the transmitter
and make it in a state where the 900MHz radio wave is not emitted.
Set the transmitter to range check mode. Do a distance test as well as
900MHz. (Only 2.4GHz radio waves are emitted)
©Copyright 2023. No part of this manual may be reproduced in any form without prior permission. The contents of this manual are subject to change without prior
notice. While this manual has been carefully written, there may be inadvertent errors or omissions. Please contact our service center if you feel that any corrections or
clarifications should be made. Futaba is not responsible for the use of this product.
Hobby Radio Control Business Center Sales & Marketing Department 1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan
TEL: +81-475-32-6051, FAX: +81-475-32-2915
Percentage of Waste
Paper pulp 80%
7
After completing the distance test, please turn off the
transmitter and turn it on as usual. (Both 2.4GHz and
900MHz are ON)
WARNING
Distance test with engine off for gas-powered models. For
electric airplanes, remove the propeller from the power motor. For
electric helicopters, drag the pinion gear from the power motor so
that the rotor does not rotate.
Other Precautions Other Precautions
The TM-18 antenna is fixed with screws 1, 2, and 3, shown
below. If these parts come loose, you may lose control and crash.
Check for looseness before turning on the transmitter.
2 2
1 1
This radio transmitter (FCC ID: AZPTM18, IC: 2914D-TM18) has been approved by Federal
Communications Commission or Innvoation, Science and Economic Development Canada
to operate with the antenna types listed below with the maximum permissible gain indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated
for any type listed are strictly prohibited for use with this device.
No. Antenna Type Model Name
1． 1/2 λ di-pole type 9M99Z11701
When using a transmitter equipped with TM-18 on the teacher
side of the trainer function, do not switch the trainer switch after
turning on the transmitter and before the receiver side becomes
operable. Doing so may cause malfunction.
* When using the TM-18 with the T12K, the trainer cable cannot be
connected, so the trainer function cannot be used.
For safety's sake, pay special attention whenever you see the marks shown here.
Symbol Explanationk
Indicates a procedure which could lead to a dangerous situation
DANGER
and may cause death or serious injury if ignored and not performed
properly
Indicates procedures which may lead to dangerous situations and
WARNING
could cause death or serious injury as well as superficial injury and
physical damage.
CAUTION Indicates procedures that may not cause serious injury, but could lead
to physical damage.
[Symbol] ; Prohibited ; Mandatory
Compliance Information Statement (for U.S.A.)
This device, trade name Futaba Corporation, model number R9001SB, complies with part15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: To assure continued FCC compliance
1. Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The responsible party of this device compliance is:
FUTABA Corporation of America 2681 Wall Triana Hwy Huntsville, AL 35824, U.S.A.
Phone:1-256-461-9399 FAX:1-256-461-1059 E-mail: service@futabaUSA.com
Compliance Information Statement (for Canada)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the fol-
lowing two conditions: (1) this device may not cause interference, and (2) Cet équipement est conforme aux
limites d'exposition au rayonnement du CI établies pour un environnement non contrôlé. Cet émetteur ne doit
pas être co-situé ou fonctionner conjointement avec une autre antenne ou émetteur.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.
French: Cet appareil radio est conforme au CNR-210 d'Industrie Canada. L'utilisation de ce dispositifest
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l'utilisateur
du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même sice brouillage est suscep-
tible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d'exposition
aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la
source de rayonnement et votre corps .
FUTABA CORPORATION
©FUTABA CORPORATION 2023, 12 (2)
- 4 -
1M23N39005
AdRCSS 900MHz System
TM-18 RF Module
and
R9001SB Receiver
3 3
Instruction Manual
Applicable systems:
T16IZ, T16IZS, T18SZ, T32MZ
(No dedicated power supply required)
T12K, T16SZ
(Requires dedicated power supply)
Gain(Peak)
3.83 dBi
Features
• Exclusive ID code to avoid interference from other AdRCSS • Exclusive ID code to avoid interference from other AdRCSS
900MHz systems. 900MHz systems.
• Fail Safe (F/S) function (for throttle channel) • Fail Safe (F/S) function (for throttle channel)
Recommendation
• It is recommended to use Futaba AdRCSS 900MHz system and • It is recommended to use Futaba AdRCSS 900MHz system and
Futaba 2.4GHz system at the same time using Dual RX Link Futaba 2.4GHz system at the same time using Dual RX Link
System receiver (main = 2.4GHz system) System receiver (main = 2.4GHz system)
TM-18 RF Module/R9001SB Receiver TM-18 RF Module/R9001SB Receiver
Tact SW Tact SW LED LED
R9001SB Receiver
CRSF signal connection cable
Connect transmitter and TM-18
BATT port BATT port
C o n n e c t a d e d i c a t e d p o w e r
supply (4.8V to 7.4V) when using
the T12K and T16SZ.
●Tact SW of R9001SB ●Tact SW of R9001SB
Used for S.BUS mode change and F/S setting.
●Tact switch of TM-18 RF module ●Tact switch of TM-18 RF module
Used for linking with the receiver and a power-down mode.
Important: The AdRCSS 900MHz band offers different
characteristics than that of the conventional 50MHz, 72MHz
and 2.4GHz. As such, we strongly encourage you to read
this manual carefully prior to utilizing the TM-18 RF and
R9001SB system.
Thank you for purchasing the AdRCSS 900MHz system TM- Thank you for purchasing the AdRCSS 900MHz system TM-
18 RF transmitter module and R9001SB receiver. This system is 18 RF transmitter module and R9001SB receiver. This system is
available only with the Futaba transmitters listed left side in this page. available only with the Futaba transmitters listed left side in this page.
The receiver R9001SB is capable of controlling models up to 16 The receiver R9001SB is capable of controlling models up to 16
channels. Please install the R9001SB carefully according to the manual. channels. Please install the R9001SB carefully according to the manual.
* AdRCSS stands for Advanced Radio Control System for Sub-GHz band. * AdRCSS stands for Advanced Radio Control System for Sub-GHz band.
Shows Futaba 900MHz products. Shows Futaba 900MHz products.
Usage Precautions: Usage Precautions:
WARNING
Before utilizing any radio control system, it is strongly
recommended that you read and abide by the Safety Code created
by the Academy of Model Aeronautics and any site-specific rules
and regulations that might exist. Doing so will significantly increase
your enjoyment of the hobby.
To maintain complete control of your aircraft, it must always
remain visible. Flying behind large objects, such as buildings, grain
bins, etc., is not suggested. Doing so may result in the reduction of
the quality of the radio frequency linked to the model.
Please do not grasp the transmitter module's antenna during
flight, and doing so may degrade the quality of the radio frequency
transmission.
If there're any noise or other RF devices at same 900MHz band,
the link of AdRCSS might be degraded. Always check your control
is being kept and if any symptom of loss of control felt please stop
using immediately.
o not allow other transmitters, mobile phones, or wireless
D
devices to contact or come close to the TM-18 during
operation. Doing so may cause malfunction.
Do not point the tip of the antenna toward the aircraft during
flight. (Radio waves are maximized in the lateral direction of the
antenna.)
TM-18 RF Module
Specifications:
TM-18 RF Module
● Communication system: one-way communication
● Compatible with all Futaba systems
(FASTTest, FASST MULTI/7CH, S-FHSS, T-FHSS)
Two-way communication (telemetry) is not supported.
● Current consumption: 36mA maximum
● Setting switch for LINK and range check
[R9001SB Receiver]
● Dual antenna diversity
● Power requirement: 4.8V-7.4V Dry batteries cannot be used
● Fail Safe (F/S) function (for throttle channel)
LED LED
● Size: 1.48x0.83x0.21in (37.5x21.1x5.3mm)
● Weight: 0.16 oz. (4.6g)
* Be sure that when using ESC's regulated output the capacity of the
ESC must meet your usage condition. Never use dry cell batteries for
the R9001SB receiver as this may cause difficulties with the receiver's
operation.
* The amount of maximum channels for S.BUS/S.BUS2 output depends
on the transmitter. (Unused CH will be neutral output.) Also, at F/S, the
Tact SW Tact SW
F/S setting CH will be at the F/S position, and other than that will be in
the Hold state.
CRSF Port CRSF Port
Port for inserting CRSF
WARNING
signal connection cable.
Do not press the tact SW during the flight as the module will be
in range check mode so that the RF power will be lowered and will
result in fatal crash.
- 1 -
