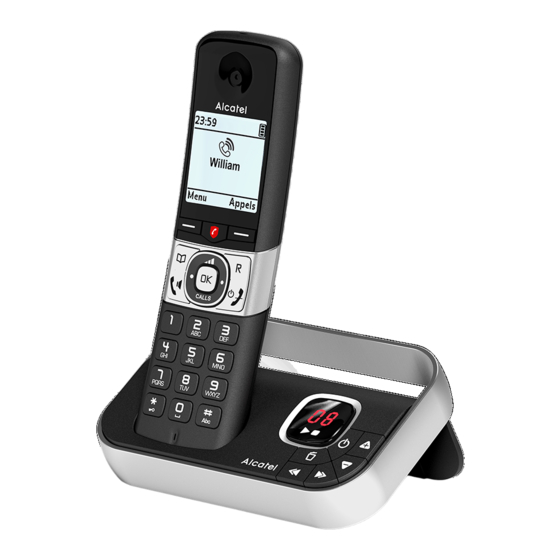

Alcatel F890 VOICE User Manual

FIRST INSTALLATION FIRST INSTALLATION
1 Connecting the Base
Plug one end of the telephone line cord into the telephone jack on base bottom. (Fig. A)
Plug the small end of power adapter into a power jack on base bottom. (Fig. B)
Plug the large end of power adapter into a wall power outlet. (Fig. C)
Plug the other end of the telephone line cord in to the telephone jack or micro-filter.
Always use the cables provided in the box.
For multiple pack version, plug the power adaptor of the charger into a wall power outlet.
2 Installing the handsets and
Charging the Batteries
1. Slide down to open the battery compartment cover.
2. Place the 2 supplied rechargeable batteries as indicated. Pay extra attention to direction of polarity.
3. Slide the battery compartment cover back.
4. Put the handset on the base or on the charger and charge for 15 hours before using the handset
for the first time. The handset will emit a beep when it is properly placed on the base or charger.
Always use the rechargeable batteries provided in the box.
Notes:
If you need to remove the batteries, slide
open the battery compartment cover and
using the finger hole, grip the batteries and
gently pull them out.
3 Using your phone
•
To customize handset (name, melody, language):
press then press or select SETTINGS then press OK.
Table 1.
1.
Menu / or / SETTINGS / OK
2.
or / LANGUAGE / or / OK
•
To change PIN, registration handset, reset: press or
If you have difficulty with your phone, please try the suggestions listed below. As a general rule, if a
problem occurs, remove the batteries from all the handsets in your installation for about 1 minute,
then disconnect and reconnect the power supply to the base and reinstall the handset batteries.
Problem
No dialing tone when
pressing key.
"No Link to base" is
displayed.
The call does not work.
No display.
Field Range
Indoor Range
Handset Battery Autonomy
(average values)
Number of Handsets
Electrical Connection/
Base Mains Adaptor/
Charger
Telephone Connection
Batteries per handset
Operating Temperature
*
Values may vary according to environment.
Alcatel is a trademark of Nokia, used under license by ATLINKS
select SETTINGS then press OK.
Troubleshooting
Cause Solutions
a. Check the connections.
a. The connection cord of the
Unplug and plug back in the mains.
base station is not plugged in.
Check that the telephone line cord has
b. The adapter cord is not
been plugged into the base station and
plugged in correctly in the
the phone socket.
base station.
b. Check the base station plug and the AC
c. The line is busy, as another
plug (remove and plug-in).
handset is used.
c. Wait until the line is unoccupied.
d. Wrong connection cord.
d. Use the original connection cord.
a. Base station out of range. a. Reduce the range.
b. Base station is not connected b. Connect base station to mains.
to mains.
Service not activated or wrong
Check your Subscription with network.
operator.
Empty batteries. Recharge batteries.
Technical Details
Up to 300 meters*
Up to 50 meters*
18 hours talk time**
300 hours standby**
Up to 4
Base main adaptor & Charger adaptor:
Model No.: AT-536B-060045B or A318-060045W-UK1
Input: 100-240 V/50-60 Hz/0.15 A
Output: 6V
DC/450 mA, 2.7W
Only use the adaptors supplied with telephone.
Single-phase AC, excluding IT install defined by the EN62368-1 standard.
Caution: The network voltage is classified as hazard by the criteria of this
standard.
Appliance designed for connection to a TNV3 class (telecommunications
network voltage) analogue telephone line as defined by the EN62368-1
standard.
2pcs of AAA NiMH batteries - 2.4 V - 750mAh
Only use the batteries supplied with the telephone.
Use any other type of battery presents a risk of explosion. Used batteries
must be disposed of in compliance with current environmental protection
regulations.
From 5°C to 40°C
** Depending on initial battery charge.
ATLINKS Europe
28 Boulevard Belle Rive
92500 RUEIL-MALMAISON - France
RCS Nanterre 508 823 747
ATLINKS UK Ltd
3rd Floor, Waverley House
7-12 Noel Street, London, W1F 8GQ - UK
Company registration: 13809295
www.alcatel-home.com
F890 Voice UK
A/W no.: 10002668 Rev.1 (EN)
Made in PRC
F890 VOICE/
F890 VOICE DUO/
F890 VOICE TRIO/
F890 VOICE QUAD
User Guide
www.alcatel-home.com
Box Content
General Information
TROUBLESHOOTING ENVIRONMENT
