- Page 1 ALCATEL OmniPCX 4400 Mobile 100 Reflexes Mobile 200 Reflexes GUIDE TO THE USE OF GAP MODE ARCHITECTS OF AN INTERNET WORLD...
- Page 2 Precautions for use This approved DECT telephone is intended to be used with an Alcatel cordless PABX. DECT equipment complies with a standard that only enables them to be used to establish links between fixed points if these links are temporary and the equivalent isotropically radiated power at the antenna is less than 250 mW.
-
Page 3: Table Of Contents
Contents Precautions for use² Your telephone ......p. 4 Displays and corresponding icons ....p. 5 1.1 Status icons . -

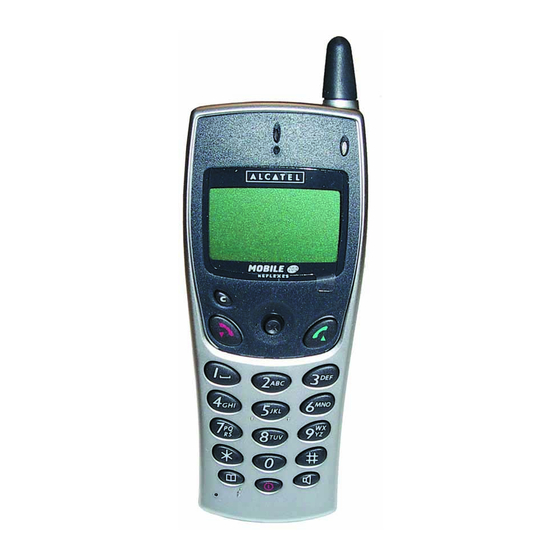

Page 4: Your Telephone
· Activating the R key · Activate DTMF signals (long press) (long press) · Microphone (1) Depending on the model · On / Off (long press) · Rapid access to ringer adjustment For further information, visit our web site www.alcatel.com... -
Page 5: Displays And Corresponding Icons
Display and corresponding icons The display features 1 line of status icons and 3 lines of 16 alphanumerical characters. The Mobile 200 also features a display and backlit keypad. Status icons The status icons are displayed on the welcome screen and indicate the status of the telephone. -
Page 6: Menu Icons
MENU icons The MENU is accessible from the welcome screen by pressing the key. It provides access to all the functions available on your telephone. Directory: managing your personal directory. Adjustment: adjust contrast, activate or deactivate the beeps, lighting, etc Ringer: choosing the melody and volume. -
Page 7: How To Read This Guide
How to read this guide Press briefly on the navigation key to access the MENU and to confirm. Move the navigation key up or down. Move the navigation key to the left or right. Use the keypad to enter digits and letters. Important information These symbols can be enhanced by other icons or text. -
Page 8: Getting Started
Getting started Charging the telephone · Installing the battery: Position the battery in Slide it until it clicks into the slide following the place mark on the label · Charging the battery: Connect the charger and The battery is charged* place the telephone in the charging holder Recharge your telephone battery regularly. -
Page 9: Switching On Your Telephone
Switching on your telephone System 1 Switch on Wait a moment (about Your telephone (long press) 3 seconds) is switched on Switching off your telephone: · Press the (long press) Accessing the MENU and navigating System 1 Confirm · Accessing the functions: Discreet Melody 1 Melody 2... -
Page 10: Using Your Telephone
Using your telephone Making a call Michel 00:50 Send the You are in Hang up Dial call conversation Answering a call Sophie Sophie 00:50 You are in You are receiving a Off-hook Hang up conversation call Calling from your personal directory 1-Martin 2-Alice Select the name of the person... -
Page 11: Sending Dtmf Signals
Sending DTMF signals During a call, you sometimes have to send DTMF signals, for example when remotely consulting an answering machine, for a voice message service or an automatic switchboard. To do this: Press the key: (long press). Making a call-back request If the line of the internal correspondent you are trying to call is busy or does not answer, you want them to call you back as soon as they are free. -
Page 12: Handling Several Calls
Handling several calls Making a second call during a conversation Number ? Paul 01:15 Dial the number John 01:30 The first To end the ongoing call and return to the first correspondent is correspondent, dial the code of the "Enquiry placed on hold call/Enquiry off"... -
Page 13: Switching Between Calls (Broker Call)
Switching between calls (broker call During a call, to return to the correspondent you have placed on hold: John Paul 00:20 01:15 Dial the code of the The first "Broker call" correspondent is function automatically placed on hold Transferring a call John 00:20 00:20... -
Page 14: While You Are Away - When You Return
While you are away - When you return Forwarding calls to another number This number can be a home number, a cellular phone, your voice mail service or an internal telephone (operator, etc.): Dial the code of the Dial the destination "Immediate forward"... -
Page 15: Consulting The Voice Messages
Consulting the voice messages The presence of a message is signalled by a voice guide when the line is seized. -
Page 16: Customizing Your Telephone
Customizing your telephone Creating a sheet in your directory Your directory can contain up to 12 numbers. 1-Modify 2-Delete 3-Back Access your directory Access the creation of a sheet Name ? 1-....MARTIN 2-....3-....Enter the name (10 Select the desired entry Confirm characters maximum) Number ? -
Page 17: Modifying A Sheet In The Directory
Modifying a sheet in the directory 1-Martin 2-Alice Access your directory Select the card to be modified 1-Modify 2-Delete 3-Back Select Confirm Confirm "Modify" Name ? MARTIN Modify the Confirm Move onto the letter to be name modified Number ? 0123456789 Modify the Confirm... -
Page 18: Erasing A Sheet From The Directory
Erasing a sheet from the directory 1-Martin 2-Alice Access your directory Select the card to be deleted 1-Modify 2-Delete 3-Back Select Confirm Confirm "Delete" Selecting the language Français English Deutsch Select the "Language" Select the language of your Confirm function choice Return to Confirm... -
Page 19: Adjusting The Audio Functions
Adjusting the audio functions Choosing your melody: · 1-Melody 2-Melody 3-Melody Select the "Ringer" Confirm Select the melody of your function choice Return to Confirm idle Adjusting the ringer volume: · Volume 3/4 Select the "Ringer" Confirm Select the "Volume" icon function Increase / Return to... -
Page 20: Adjusting Your Telephone Functions
Activating the vibrator or ringer (Mobile 200) · MARTIN Paul Wed 24 May 16:30 System 1 Long press Vibrator activated Long press Vibrator disabled and ringer disabled and ringer activated This key can be used to switch rapidly from the ringer to the vibrator and vice-versa. -
Page 21: Adjusting Screen Contrast
Adjusting screen contrast Contrast : 3/5 Confirm Select the "Adjustment" Select the "Contrast" function icon Return to Increase / idle reduce the contrast Adjusting your telephone functions Ringer Keypad beep Warning beep Select the "Adjustment" Confirm Select the function* you function want to activate or disable Return to idle... -
Page 22: Displaying A Name On Your Telephone Screen
Displaying a name on your telephone screen Current name : Change ? Confirm Select the "Adjustment" Select the "Name" icon function Name ? Current name : ............Change ? Enter the name Confirm to enter the name Confirm Return to idle... -
Page 23: Accessories
Accessories Chargers Several models of charger are available. The "Corded" simple charger. The "Basic Desktop" mini office charger The "Dual Desktop" office charger with extra battery recess The "Voice Desktop" hands-free office charger. Transporting and protecting your telephone Various models of carrying case are available. Ask your installation technician for information. -
Page 24: Warranty
Directive 1999/5/CE of the European Parliament and the Council. ALCATEL Mobile 100 Reflexes ALCATEL Mobile 200 Reflexes ALCATEL Mobile 200 Ex Reflexes Any unauthorized modification of the products makes this declaration of conformity null and void. A copy of the original of this declaration of conformity can be obtained by... - Page 25 Copyright © Alcatel Business Systems. 2000. All rights reserved. Alcatel Business Systems, in keeping with its policy of constant product improvement for the customer, reserves the right to modify product specifications without prior notice. Alcatel Business Systems - 32, avenue Kléber F-92707 Colombes Cedex...
