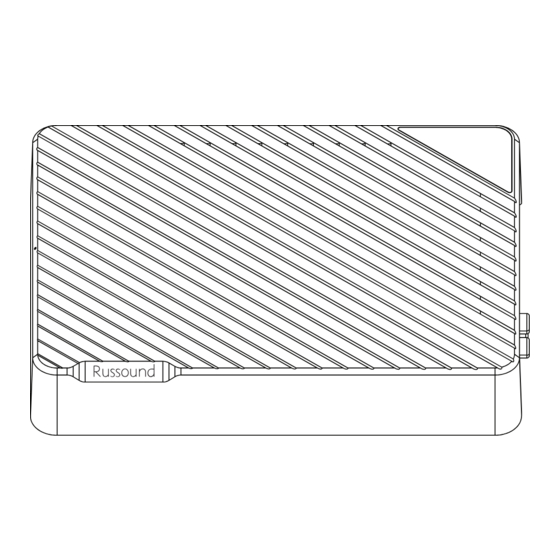

- Page 1 AVA-Series Amplifiers AVA2.1 & AVA3.1 I N S T A L L A T I O N G U I D E...
-
Page 2: What's In The Box
OVERVIEW Russound’s AVA-Series’s are a game changer in the audio industry. Their built -in HDMI ARC input with CEC control means that these compact, powerful, low-profile AVA-Series can be used seamlessly with any modern television without the need for any remote control other than your native TV or cable- box/satellite remote that is already being used. -
Page 5: Audio Output
USING THE MINI-AVR HDMI - CONNECTING A TV OR OTHER HDMI AUDIO SOURCE Connect the HDMI cable to the HDMI Port on the TV labeled HDMI (ARC or eARC) and to the rear HDMI port of your AVA-Series Amplifiers labeled “ARC”. It is very important that you connect to the ARC or eARC HDMI connection on the TV. -
Page 6: Using Bluetooth
USING THE MINI-AVR DIGITAL OPTICAL IN Connect any digital audio source to the digital optical input on the rear of your AVA-Series Amplifiers. The connected source may be selected by using the included remote control and pressing the input selection button on the top right of the remote control until you hear the desired source. -
Page 7: Functions Available
LED will blink fast, indicating it is ready to learn the IR command. Place your TV remote end to end with the Russound AVA remote control so that the front of both remote controls are within 1” (2.54 cm) of each other. -
Page 8: Front Panel Led Status
CREATING A 5.1 OR 5.2 AUDIO SYSTEM By combining a Russound AVA3.1 with an AVA2.1 or any stereo amplifier, it is possible to create a quick 5.1 surround (all stereo mode) system for any room. Use a stereo 3.5mm to RCA cable (not included) to connect from the Line Out of the AVA3.1 to the audio input of the AVA2.1 or other amplifier. - Page 9 USING THE MINI-AVR STATUS 3 Blinks IR command received Fast Blink Volume has reached maximum or minimum setting Slow Blink Audio is muted Blue (Blinking) Bluetooth pairing mode is active Red (Solid) Standby mode AUDIO DSP ADJUSTMENTS USING THE REMOTE CONTROL MEGA BASS This setting is recommended when there is no dedicated subwoofer.
- Page 10 USING THE MINI-AVR MOVIE This button will enable a high pass filter at 35Hz, and a Box EQ at 240Hz (-4dB) and 860Hz (-3dB) to allow for dynamic response in movies and films. In this mode, you may also customize the bass and treble or enable Mega Bass as desired.
- Page 11 Designed in New Hampshire Made in China...
-
Page 12: Specifications
SPECIFICATIONS Model AVA2.1 AVA3.1 Number of Channels Power Output - 4 ohm 50W /Channel, 1kHz 50W /Channel, 1kHz Power Output - 8 ohm 25W /Channel, 1kHz 25W /Channel, 1kHz 20Hz to 20kHz +/-3dB at 1W output into 20Hz to 20kHz +/-3dB at 1W output Freq Response 4 or 8 Ohms into 4 or 8 Ohms... - Page 13 SAFETY 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance in the operating instructions should be adhered to.
- Page 14 SAFETY Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings, or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
-
Page 15: Limited Warranty
WARRANTY LIMITED WARRANTY The Russound AVA2.1 and AVA3.1 are guaranteed for two (2) years from the date of purchase against all defects in materials and workmanship. During this period Russound will replace any defective parts and correct any defect in workmanship without charge for either parts or labor. For this warranty to apply, the unit must be installed and used according to its written instruc- tions. - Page 16 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 17 IC Warning This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
- Page 18 ©2023 Russound/FMP, Inc. All rights reserved. All trademarks are the property of their respective owners. Specifications are subject to change without notice REV5...
