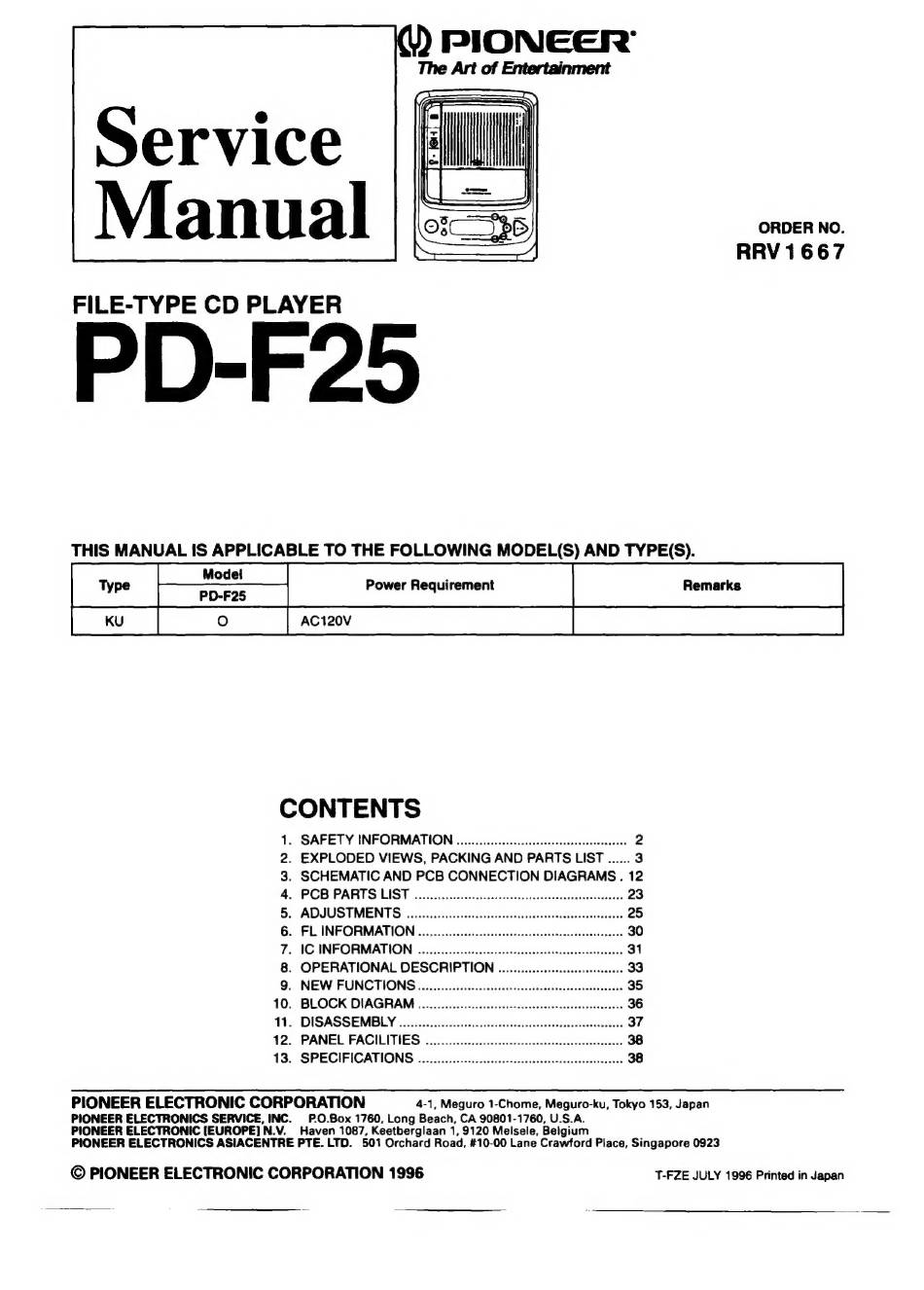

Pioneer PD-F25 Service Manual

Service
Manual |=
FILE-TYPE CD PLAYER
PD-F25
ORDER NO.
RRV 1667
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PIONEER ELECTRONIC CORPORATION
RVICE, INC. PIONEER ELECTRONICS SE
| yee [pore] _-_PomerRequement | amare
A
CONTENTS
1. SAFETY INFORMATION ....0.. cece cscs cesses erensereeeees 2
2. EXPLODED VIEWS, PACKING AND PARTS LIST ...... 3
3. SCHEMATIC AND PCB CONNECTION DIAGRAMS . 12
4:-"PGB PARTS LIST 2i03...ctnae cian dated 23
5. ADJUSTMENTS. 00... cece esecneeeeceeteeeneseesaneeneree 25
6. FL INFORMATION ....00. ccc certs cee eeeeeneseneeneree 30
7. IC INFORMATION 00. eeeeerettseeeeeeneteeenes 31
8. OPERATIONAL DESCRIPTION ........... ccc seeeeseetees 33
9. NEW FUNCTIONS ...0 oe cca cee ence ceeeteenenseeee 35
10. BLOCK DIAGRAN .......... eee ec eee rererteceeeteneeeeeees 36
11. DISASSEMBLY 0000... cseereeceeseneeesereeneesenees 37
12. PANEL FACILITIES .000.o ee cree reeetaneecnees 38
13. SPECIFICATIONS ...0.. cece cee neseeeteeesseneseneesenee 38
P.O.Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
T-FZE JULY 1996 Printed in Japan
