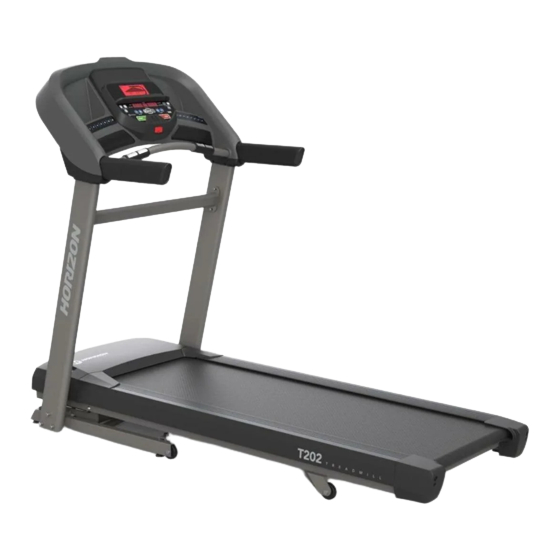

Horizon Fitness T202 Owner's Manual
  1. Manuals
  2. Brands
  3. Horizon Fitness Manuals
  4. Treadmill
  5. T202
  6. Owner's manual
Horizon Fitness T202 Owner's Manual

Horizon Fitness T202 Owner's Manual

Hide thumbs Also See for T202:

Advertisement

Quick Links

Download this manual
T202
TREADMILL OWNER'S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER'S MANUAL.
Lire le GUIDE D'UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.

Advertisement

loading

Related Manuals for Horizon Fitness T202

Summary of Contents for Horizon Fitness T202

  • Page 1 T202 TREADMILL OWNER’S MANUAL MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT MANUAL DEL PROPIETARIO DE LA CAMINADORA Read the TREADMILL GUIDE before using this OWNER’S MANUAL. Lire le GUIDE D’UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
  • Page 2 ENGLISH FRANÇAIS ESPAÑOL...

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
  • Page 4 DANGER TO REDUCE THE RISK OF ELECTRICAL SHOCK: Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or taking off parts. WARNING TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS: •...
  • Page 5 WARNING TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS: • At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet. • At NO time should children under the age of 13 use the treadmill. •...
  • Page 6 GROUNDING INSTRUCTIONS This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
  • Page 7 ASSEMBLY WARNING There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises.
  • Page 8 WATER BOTTLE HOLDER CONTROL PANEL AND DISPLAY WINDOWS WATER BOTTLE HOLDER CONSOLE FAN SPEAKERS GRIP PULSE HANDRAILS SAFETY KEY PLACEMENT ON/OFF SWITCH POWER CORD MOTOR COVER CONSOLE MAST CAUTION ATTENTION PRECAUCIÓN FOOT LOCK LATCH (UNDERNEATH DECK) KEEP HANDS AND FEET GARDEZ VOS MAINS ET MANTENGA LAS MANOS AWAY FROM THIS AREA.
  • Page 9 PRE ASSEMBLY TOOLS INCLUDED: F 6 mm T-Wrench UNPACKING F 5 mm L-Wrench Place the treadmill carton on a level flat surface. It is recommended that you place a PARTS INCLUDED: protective covering on your floor. Take CAUTION when handling and transporting this unit.
  • Page 10 ASSEMBLY STEP 1 Cut the yellow banding straps and lift the running HARDWARE FOR STEP 1 deck upward from the rear to remove all contents PART TYPE DESCRIPTION from underneath the running deck. HEX SOCKET BOLT M8X1.25PX60L Open HARDWARE FOR STEP 1. Attach LEFT CONSOLE MAST (1) to MAIN FRAME (2) using 3 BOLTS (A).
  • Page 11 ASSEMBLY STEP 2 Open HARDWARE FOR STEP 2. HARDWARE FOR STEP 2 PART TYPE DESCRIPTION Pull the CONSOLE CABLE (3) away from the HEX SOCKET BOLT M8X1.25PX60L treadmill base frame. Connect the CONSOLE CABLE (3) from the MAIN FRAME (2) to the CONSOLE CABLE (3) in the bottom of the RIGHT CONSOLE MAST (4).
  • Page 12 ASSEMBLY STEP 3 Open HARDWARE FOR STEP 3. HARDWARE FOR STEP 3 PART TYPE DESCRIPTION Attach LEFT SIDE of the CROSSBAR (1) to the UPRIGHT MAST (2) loosely using HEX SOCKET BOLT M6X1.0PX15L 2 BOLTS. (A) Attach RIGHT SIDE of the CROSSBAR (1) to the UPRIGHT MAST (3) loosely using 2 BOLTS.
  • Page 13 ASSEMBLY STEP 4 NOTE: Be careful not to pinch any wires HARDWARE FOR STEP 4 while assembling the console. PART TYPE DESCRIPTION BOLT M8X1.25PX15L Open HARDWARE FOR STEP 4. SPRING WASHER 8.2X13.5X2.0T 8.2X15.0X1.2T FLAT WASHER Gently place the CONSOLE (5) on top of the CONSOLE MASTS (1&4).
  • Page 14 ASSEMBLY STEP 5 Open HARDWARE FOR STEP 5. HARDWARE FOR STEP 5 PART TYPE DESCRIPTION Attach the RIGHT AND LEFT SIDE CONSOLE SCREW 4X10L JOINT COVERS (1) using 8 SCREWS (A & B). SCREW 4X15L REMEMBER to tighten CROSSBAR BOLTS into the CONSOLE MASTS (2&3) completely now that assembly is finished.

  • Page 15: Treadmill Operation

    TREADMILL OPERATION This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following: • LOCATION OF THE TREADMILL • USING THE SAFETY KEY • FOLDING THE TREADMILL •...
  • Page 16 T202...
  • Page 17 CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) LCD DISPLAY WINDOWS: Incline, Speed, Time, Distance, Calories, Heart Rate B) LED DISPLAY: Incline, Speed, Time, Distance, Calories, Heart Rate C) WORKOUT QUICK KEYS: press to select your workout.
  • Page 18 DISPLAY WINDOWS • TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout. • DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout. • SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving. •...
  • Page 19 GETTING STARTED 1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill. 2) Plug in the power cord and turn the treadmill ON. (The ON/OFF switch is next to the power cord.) 3) Stand on the side rails of the treadmill.
  • Page 20 WORKOUT PROFILES 1) MANUAL: Adjust your speed and incline manually during your workout. 2) INTERVALS: Improves your strength, speed and endurance by increasing and decreasing the speed throughout your workout to involve your heart and other muscles. Includes 10 levels. Speed changes and segments repeat 90 seconds and 30 seconds.
  • Page 21 Segment Warm Up Cool Down Time 4:00 Mins 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec 4:00 Mins Incline Level 1 Speed Incline Level 2 Speed Incline Level 3 Speed Incline Level 4 Speed Incline Level 5...
  • Page 22 AUDIO OUT JACK on the right side of the console. 5) To connect to the Bluetooth speakers open your Bluetooth settings, turn on Bluetooth, scan for new devices, look for Horizon T202 and select connect. AFG TABLET CONNECTED FITNESS SYSTEM Your AFG machine is tablet ready, allowing you to use Bluetooth technology to wirelessly connect your tablet to your AFG sport treadmill.

  • Page 23: Limited Home-Use Warranty

    LIMITED HOME-USE WARRANTY...
  • Page 24 LABOR • 1 YEAR • Incidental or consequential damages. Horizon Fitness Horizon Fitness shall cover the labor cost for the repair of the is not responsible or liable for indirect, special or device for a period of one year from the date of the original...
  • Page 25 AT YOUR OWN replacement and constitute fulfillment of warranty terms. RISK and Horizon Fitness shall have no liability for any injury • This warranty gives you specific legal rights, and your to the person or property arising from such repairs.
  • Page 26 Cottage Grove WI, 53527 www.horizonfitness.com Horizon T202-4 111218 © 2018 Horizon Fitness Designed & Engineered in the U.S.A. • Made in China | Dessiné et conçu aux États-Unis. • Fabriqué en Chine | Diseñado en los EE. UU. • Hecho en China...
