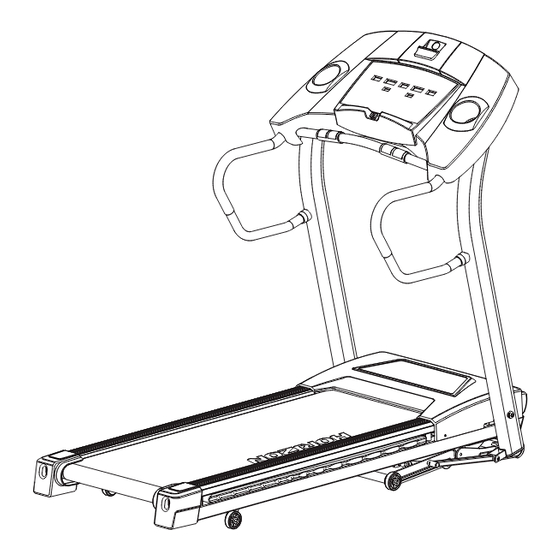

- Page 1 HORIZON CLUB FOR MODELS : T700 T800 TR E AD MIL L U SE R’ S G UI D E T700-T800_Treadmill_Rev.1.4.indd1 1 4/23/07 10:09:08 AM...
-
Page 2: Table Of Contents
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Club Treadmill! Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Club treadmill can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics and innovative features you need to get stronger and healthier, faster. -
Page 3: Important Precautions
Failure to comply will void the warranty. • Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty. -
Page 4: Assembly
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY! Before proceeding, find your treadmill’s serial number... - Page 5 TEFLON WASHER Open HARDWARE BAG 1. Cut banding straps. Do not move or lift treadmill from packaging. Move LEFT LINKAGE ARM into position. Insert 1 BOLT (A) and 1 FLAT WASHER (B) into LEFT LINKAGE ARM followed by 1 TEFLON WASHER (C) and attach to ELEVATION FRAME.
- Page 6 AS SE MB LY ST EP HARDWARE BAG CONTENTS : BOLT (G) SPRING WASHER (H) 20 mm 15 mm Qty: 4 Qty: 4 Open HARDWARE BAG . With running deck in lowered position, place CONSOLE on upright masts. Align the brackets that are underneath the console with the top holes of the upright masts.
-
Page 7: Before You Begin
The on/off switch is located Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation next to the power cord. -
Page 8: Tensioning/Centering Running Belt
PROPER USAGE Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. -
Page 9: Treadmill Operation
Consult a physician before using this equipment. Stop exercising if Attach safety key clip to clothing before starting. To avoid injury, stand on the side rails before starting treadmill. Read and follow all you feel pain, faint, dizzy or short of breath. For Consumer Use only. -
Page 10: Workout Information
G ET TI NG STA RTE D / S E L EC TING A WORKOUT Check to make sure nothing is on or will hinder the movement of the treadmill. Plug in the power cord and turn the treadmill ON. - Page 11 Read further to learn about how eTRAK PERFORMANCE TRACKER ™ is an innovative new software, integrated into your treadmill console, that will allow you to track your allows you to easily compare ™ ™...
- Page 12 eT R A K O P ERATI O N ™ SETUP: To activate eTRAK a user MUST be chosen before the program begins. To select a user, simply press ™ the User 1 or User 2 button. To deselect a user, press User button again. All accumulated data specifically relates to the user that is chosen.
-
Page 13: Conditioning Guidelines
HOW HARD? (Intensity of Workouts) How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. - Page 14 TI P S STRETCHING STRETCH FIRST Before using your product, it is best to take a few minutes doing a few gentle stretching exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion.
- Page 15 W EE K LY L O G S HEET S W E EK # WE E K LY G OA L D AY D AT E DI S TA NC E CAL OR I ES SU N DAY M ON DAY T U ESD AY W ED NE S D AY T H UR S DAY...
- Page 16 WHEN SHOULD I BE WORRIED ABOUT A NOISE? As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is considered normal noise.
-
Page 17: Maintenance
• Inspect the power cord. If the power cord is damaged, contact Horizon Fitness. • Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut. • Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other components on the treadmill by being misaligned. - Page 18 Horizon Fitness is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician.
-
Page 19: T700-T800_Treadmill_Rev.1.4.Indd2-3
F a x : 6 0 8 . 8 3 9 . 1 2 6 0 T700 & T800. Rev. 1.4 | © 2007 Horizon Fitness Products | Designed & Engineered in the U.S.A. | Made in China T700-T800_Treadmill_Rev.1.4.indd36 36...
