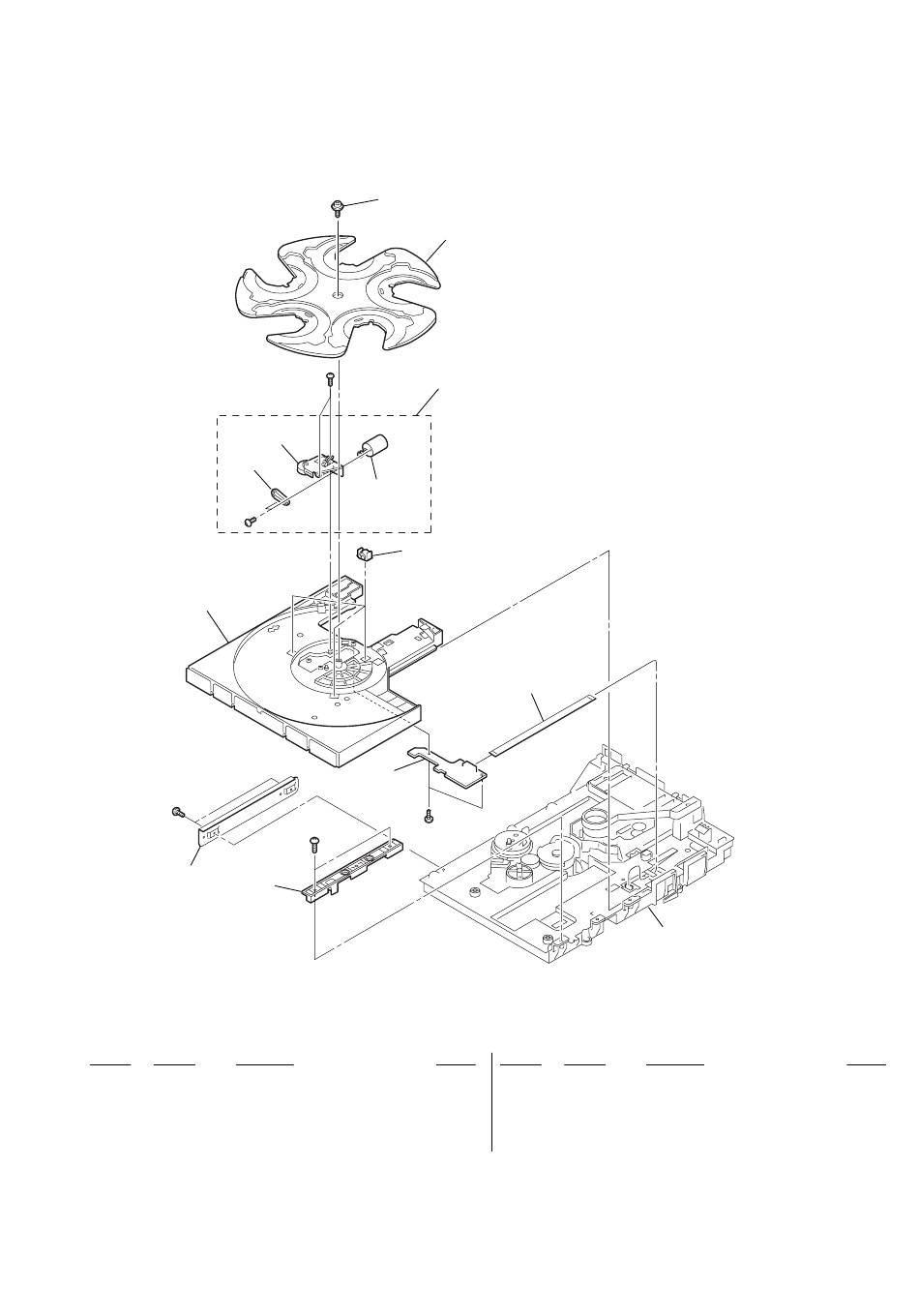

8-5. CD MECHANISM SECTION (1)

not
supplied
204
#3
not supplied
#4
not supplied
201
Ref. No. Part No. Description
201 3-074-737-01 PLATE (GUIDE)
202 A-6060-642-A SE-130 BOARD, COMPLETE
203 A-6060-640-A UNIT ASSY, TD
204 3-074-725-01 BELT, TD
205 3-074-717-21 TRAY
206
205
203
#4
not
supplied
not supplied
202
#4
#4
Remark
207
CD mechanism deck section-2
(CDM79B-F1BD81)
Ref. No. Part No. Description
206 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
207 1-823-921-11 FMS-18
#3 7-682-544-04 +B 3X3
#4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
HCD-ZX6/ZX8
Remark
69
