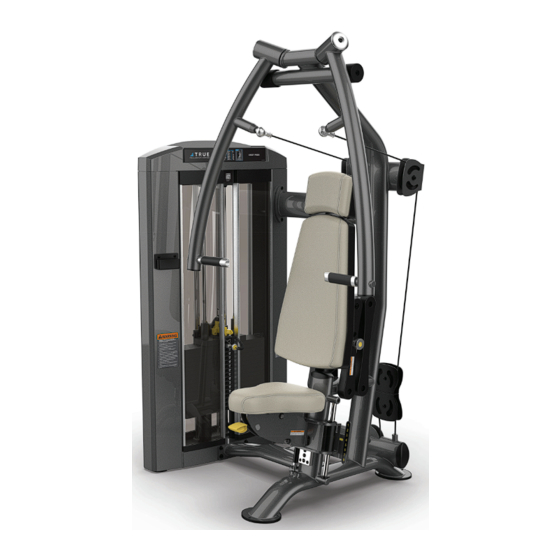

True SPL0900 Owner's Manual

Chest press
Hide thumbs Also See for SPL0900:
Table of Contents

Advertisement

Quick Links

Download this manual

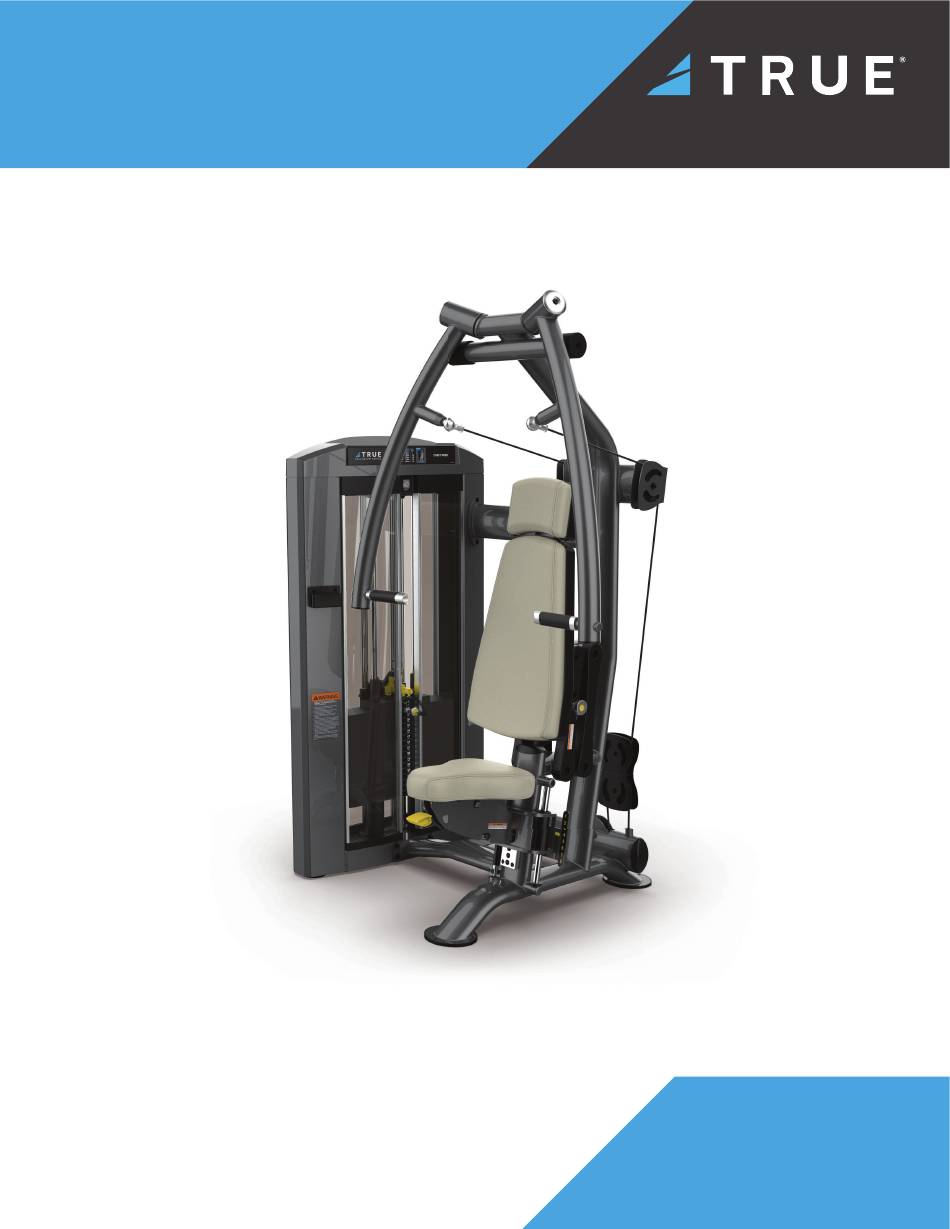

SPL0900
CHEST PRESS
MODEL SPL0900
(MAN-SPL0900 REV00)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for True SPL0900

Summary of Contents for True SPL0900

  • Page 1 SPL0900 CHEST PRESS OWNER’S MANUAL MODEL SPL0900 (MAN-SPL0900 REV00)
  • Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    WARNING AND INTENDED USE LABELS...........................13 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST...............................15 ASSEMBLY STEPS................................18 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE.........................43 WEEKLY INSPECTION AND MAINTENANCE........................43 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................44 CLEANING THE EQUIPMENT..............................44 CABLE INSPECTION AND MAINTENANCE........................45 WEIGHT STACK SELECTOR PIN INSPECTION.........................48 WARRANTY INFORMATION SPL0900 COMMERCIAL LIMITED WARRANTY........................49...

  • Page 7: Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 9: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

  • Page 10: Commercial Maintenance Schedule

    Clean guide rods and lubricate with a tefl on lubricant if equipped. Clean upholstery. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com.

  • Page 11: Dimensions And Weights

    190 lbs / 87 kg 250 lbs / 114 kg 310 lbs / 141 kg LENGTH HEIGHT 42” 74” 107 cm 188 cm WIDTH 56” 142 cm SHROUD OPTIONS Shroud Options Shrouds Model Description Acrylic Metal SPL0900 Chest Press SPLSRDPS SPLSRDMS...

  • Page 12: Weight Stack Configurations

    Number of Bumpers Top Weight** Model Description Light (L) Standard Heavy (H) Light (L) Standard Heavy (H) Generation 1 Generation 2 SPL0900 Chest Press SPL-00- SPL-00- TPL200X TPL300X SPL-ADRWT SPL-ADRWT * One box contains four 15lb / 6.8kg weight plates. REV02...

  • Page 13: Warning And Intended Use Labels

    WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA...
  • Page 14 CUT OUT AREA LBL-ADJ-SPL033 LBL-ADJ-SPL035 Generation 1 Generation 2 LBL-ADJ-SPL010 LBL-ADJ-SPL013 LBL-ADJ-SPL002 LBL-WS-SPL310 LBL-QR-SPL0900 LBL-ADJ-SPL012 CHE ST P RE SS P A L L A D I U M S E R I E S LBL- PR- S PL0900 LBL-PR-SPL0900...

  • Page 15: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support at 800.883.8783 or service@truefi tness.com. TOOLS NEEDED FOR INCLUDED TOOLS NEEDED FOR...
  • Page 16 SPL-09-ARM240X ARM ASSEMBLY, LEFT FRAME SPL-09-ARM260X ARM ASSEMBLY, RIGHT SPL-07-PHG000X PULLEY ASSEMBLY SPL-09-CBL000 SUBASSEMBLY, CABLE, MAIN FRAME, SPL0900 SPL-09-CBL100X SUBASSEMBLY, CABLE, UPRIGHT, SPL0900 Generation 2 Top Weight SPL-00-TPL300X is only compatible SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL with SPL-ADRWT REV03 or higher.
  • Page 17 BOX CONTENTS...

  • Page 18: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY NOTE: Supplemental assembly video available on vimeo.com: https://vimeo.com/723476070?share=copy. TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-09-MFR250X MAIN FRAME WELDMENT ASSEMBLY SPL-09-UPR200X UPRIGHT ASSEMBLY SPL-09-CBR000 WELDMENT, CROSS BRACE C1256 LPSHCS, 3/8"-16 X 1" E-COAT C 749B LOCK WASHER, 3/8”, BLK ZP C 754B...
  • Page 19 STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY CONTINUED b. Using an allen wrench, loosen the 4 hex screws on both sides of the upper connecting bracket on the main frame assembly to help create play. NOTE: This makes attaching the main frame assembly to the upright assembly easier.
  • Page 20 STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY CONTINUED c. Align the main frame assembly with the upright assembly. Using an allen wrench, attach the main frame assembly to the upright assembly using 8 hex screws, 8 lock washers, and 8 fl at washers. NOTE: To help align parts, loosely attach all screws before fully tightening.
  • Page 21 STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY CONTINUED d. Using an allen wrench, retighten the 4 hex screws on both sides of the upper connecting bracket on the main frame assembly.
  • Page 22 STEP 2—ATTACH ARMS TO MAIN FRAME ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-09-MFR250X MAIN FRAME WELDMENT ASSEMBLY SPL-09-ARM240X ARM ASSEMBLY, LEFT FRAME SPL-09-ARM260X ARM ASSEMBLY, RIGHT Retaining Ring Pliers C1255 LPSHCS, 3/8"-16 X 3/4" E-COAT C 749B LOCK WASHER, 3/8”, BLK ZP SPL-00-CAP005 CAP, BOLT, ALUMINUM D 128...
  • Page 23 SPL-09-MFR250X MAIN FRAME WELDMENT ASSEMBLY SPL-07-PHG000X PULLEY ASSEMBLY Wrench SD0183 PULLEY 114MM SPL-09-CBL000 SUBASSEMBLY, CABLE, MAIN FRAME, SPL0900 SPL-09-CBL100X SUBASSEMBLY, CABLE, UPRIGHT, SPL0900 Socket Wrench C1258 LPSHCS, 3/8”-16 X 1-3/4” E-COAT C 766A LOCK NUT, 3/8”-16 X 17/64”, NYLON C 754B WASHER, FLAT, 3/8”...
  • Page 24 STEP 3—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED a. Using an allen wrench and a socket wrench or open end wrench, remove and set aside the upright pulleys using 2 hex screws, 4 fl at washers, and 2 lock nuts. b.
  • Page 25 STEP 3—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED c. Using an allen wrench and a socket wrench or open end wrench, remove and set aside the lower pulley from the pulley assembly using 1 hex screw, 2 fl at washers, and 1 lock nut.
  • Page 26 STEP 3—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED d. Route the upright cable through the top of the upright assembly and around the pulleys. e. Thread a cable puller through the openings on the lower main frame assembly. Attach the upright cable to the cable puller.
  • Page 27 STEP 3—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED Using an allen wrench, fully tighten the 2 hex screws on the upper pulleys. Attach the main frame cable to the cable attachment points on the left and right arm assemblies using the cable bolts. IMPORTANT! A minimum of 1/2"...
  • Page 28 SPL-00-GRD101X GUIDE ROD ASSEMBLY Cloth SPL-00-WBR002* WEIGHT STACK BUMPER SPL-00-PIN030X SUBASSEMBLY, SELECTORY PIN SPL-09-CBL100X SUBASSEMBLY, CABLE, UPRIGHT, SPL0900 Lubricant D1261 CABLE BOLT FTG, 1/2-13 X 1-3/4” C1256 LPSHCS, 3/8”-16 X 1” E-COAT C 749B LOCK WASHER, 3/8”, BLK ZP C 754B WASHER, FLAT, 3/8”...
  • Page 29 STEP 4—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED a. Using an allen wrench, remove and set aside the guide rod bracket from the upright assembly using 2 hex screws, 2 lock washers, and 2 fl at washers. b. Slide the 2 guide rods into place on the upright assembly.
  • Page 30 STEP 4—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED e. Using an allen wrench, reattach the guide rod bracket to the upright assembly using 2 hex screws, 2 lock washers, and 2 fl at washers.
  • Page 31 STEP 4—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED Insert the selector pin and route the upright cable down through the hole on the upright assembly. Using an open end wrench, attach the cable bolt to the top weight assembly. IMPORTANT! A minimum of 1/2" (12.7 mm) of the threaded portion of the cable bolt must be threaded into the top weight assembly.
  • Page 32 STEP 4—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED h. Insert the hex screw through the lock washer, fl at washer, and selector pin attachment point and reattach it to the Generation 1 top weight assembly using an allen wrench. Insert the hex screw through the lock washer, fl at washer, and selector pin attachment and reattach it to the Generation 2 top weight assembly using an allen wrench.
  • Page 33 STEP 4—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED After selecting the appropriate weight stack labels, peel and remove the backing from the weight stack labels. Using the selector pin retainer tube and the selector pin in the heaviest weight plate option, align the weight stack label with the plates.
  • Page 34 STEP 5—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY NOTE: Supplemental acrylic shroud video available on vimeo.com: https://vimeo.com/723539522?share=copy. NOTE: Supplemental metal shroud video available on vimeo.com: https://vimeo.com/774417897?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-09-UPR200X UPRIGHT ASSEMBLY SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL SPLSRDMS* SHROUD SET, SPL, SHORT METAL Flat Head Screwdriver...
  • Page 35 STEP 5—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY CONTINUED b. Assemble the acrylic front shrouds and insert them into the upright assembly using a rubber mallet. c. Using an allen wrench and a socket wrench or open end wrench, insert and tighten the 4 hex screws and 4 lock nuts into the front shrouds.
  • Page 36 STEP 5—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY a. Using an allen wrench, socket wrench or open end wrench, and a fl at head screwdriver, remove and set aside the shroud fasteners from the upright assembly using 4 hex screws, 4 lock nuts, 2 twist lock screws, and 2 lock washers.
  • Page 37 STEP 5—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY CONTINUED b. Slide the front metal shrouds onto the upright assembly. c. Using an allen wrench and a socket wrench or open end wrench, secure the front shrouds to the upright assembly using the 4 hex screws and 4 lock nuts. d.
  • Page 38 STEP 6—ATTACH TOP COVER TO UPRIGHT ASSEMBLY NOTE: Supplemental top cover video available on vimeo.com: https://vimeo.com/723539522?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrenches SPL-09-UPR200X UPRIGHT ASSEMBLY 3/32" and 5/32" SPL-00-CVR021 CAP, UPRIGHT SPL-00-CVR022 TRAY, UPRIGHT COVER SPL-00-CVR023 MAT, UPRIGHT TRAY C1239 FHCS, 8-32 X 1/2”...
  • Page 39 STEP 6—ATTACH TOP COVER TO UPRIGHT ASSEMBLY CONTINUED e. Reattach the tray cover onto the top cover using the Fully press the tray mat onto the tray cover. 4 previously set aside the tray cover hex screws. top cover  Verify that the tray mat is fully pressed into the tray cover.
  • Page 40 STEP 7—ATTACH PHONE HOLDER TO UPRIGHT ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION #2 Phillips Screwdriver SPL-09-UPR200X UPRIGHT ASSEMBLY SPL-00-RCK001 HOLDER, PHONE C1226 PHCS, #10-32 X 1”, BLK Using a #2 Phillips screwdriver, attach the phone holder to the upright assembly using 2 screws.
  • Page 41 STEP 8—ATTACH PADS TO MAIN FRAME ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-09-MFR250X MAIN FRAME WELDMENT ASSEMBLY SPL09PDKT CONVERGING CHEST PRESS PAD KIT SPL-00-GS005 GAS SHOCK, SEAT BACK Wrench C1257 LPSHCS, 3/8”-16 X 1-1/4” E-COAT C 749B LOCK WASHER, 3/8”, BLK ZP C 754B WASHER, FLAT, 3/8”...
  • Page 42 STEP 8—ATTACH PADS TO MAIN FRAME ASSEMBLY CONTINUED c. Using an allen wrench, attach the back pad to the main frame assembly using 4 hex screws and 4 lock washers. d. Using an allen wrench and a socket wrench or open end wrench, reattach the gas shock to the main frame assembly using the 1 hex screw, 2 fl...

  • Page 43: Preventative Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 44: Other Scheduled Preventative Maintenance

    Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 45: Cable Inspection And Maintenance

    This means that the more often a piece of equipment is used, the greater the likelihood that cable wear will occur. This holds true for equipment made by any manufacturer and applies to urethane belts as well as wire rope cables.
  • Page 46 CABLE TENSION Ensure that the cables are adjusted to remove any slack using the threaded end fi ttings. These are normally located at the weight stack connection. Depending upon the machine, there may be multiple threaded fi tting on multiple cables. You can determine if there is too much slack by performing the exercise.
  • Page 47 CABLE FITTING ATTACHMENTS (IF APPLICABLE) Depending upon the machine, cable end fi ttings can either be securely fi xed, rotate about a single axis, or can be free fl oating. On machines where the cable fi tting is designed to rotate about a single axis, verify that the fi tting rotates freely and that the hardware used to secure the cable pivot axle (most likely a pin or a bolt) is correctly fastened.

  • Page 48: Weight Stack Selector Pin Inspection

    WEIGHT STACK SELECTOR PIN INSPECTION Verify that the weight stack selector pin is attached with the coiled lanyard to the top plate (if equipped). Verify the selector pin slides in and out of each weight plate. Place the selector pin in the top plate. Cycle the machine through the intended motion.

  • Page 49: Warranty Information

    HOURS OF OPERATION • This product is intended for Commercial use. If this product will not be used in this particular setting, please contact TRUE as this • Monday - Thursday 8:30am - 6:00pm (CST) warranty is void. •...
  • Page 50 SERIAL NUMBER: within 30 days of purchaser’s receipt of this Product. The serial The SPL0900 comes with one serial number on the base of the number must be intact on the Product for this Limited Warranty to machine. Please write down your serial number below and keep for your be valid.
  • Page 51 Activate Multiple Warranties at truefi tness.com Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 52 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
