SPL0100
LEG EXTENSION
MODEL SPL0100
(MAN-SPL0100 REV00)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for True SPL0100

Summary of Contents for True SPL0100

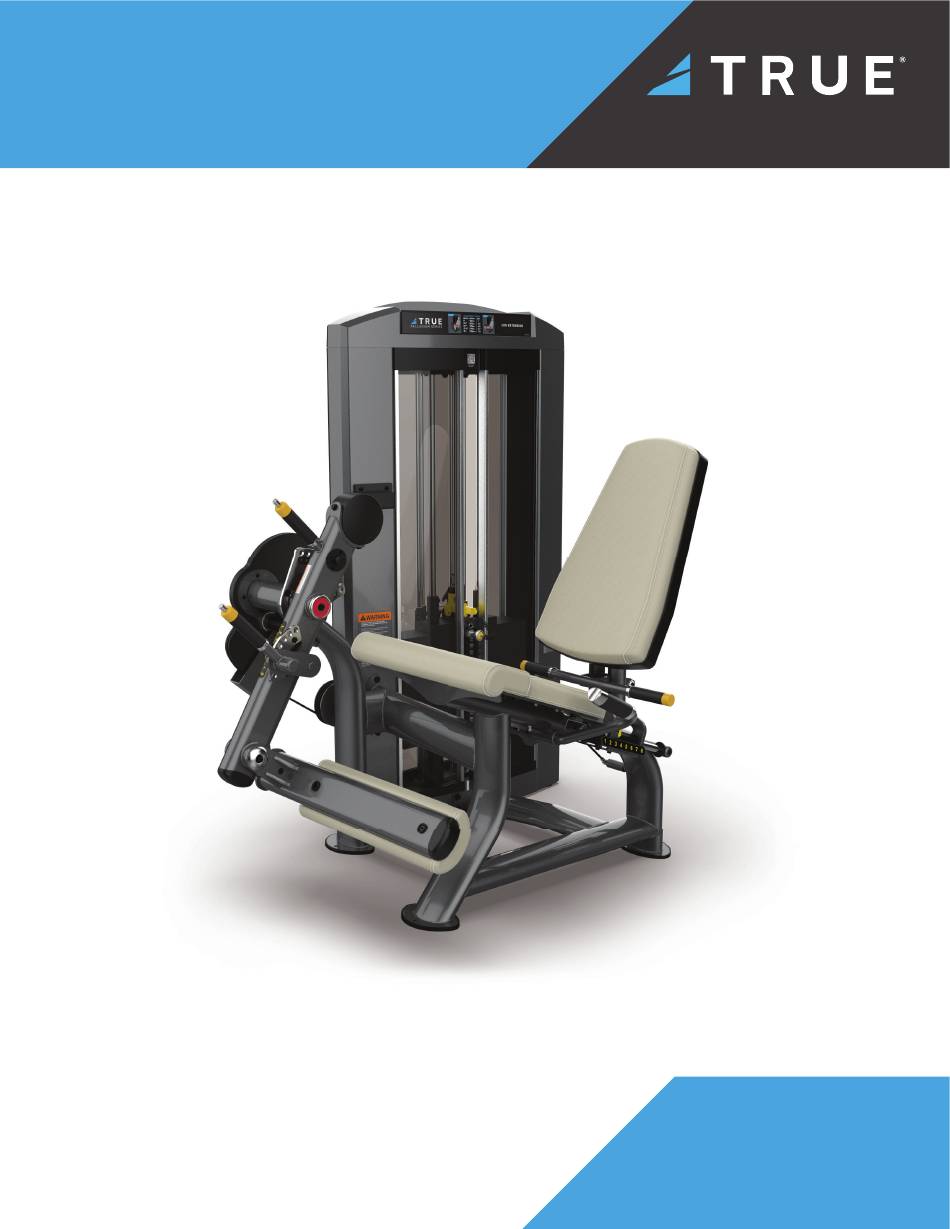

  • Page 1 SPL0100 LEG EXTENSION OWNER’S MANUAL MODEL SPL0100 (MAN-SPL0100 REV00)
  • Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    WARNING AND INTENDED USE LABELS...........................13 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST...............................15 ASSEMBLY STEPS................................17 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE.........................37 WEEKLY INSPECTION AND MAINTENANCE........................37 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................38 CLEANING THE EQUIPMENT..............................38 CABLE INSPECTION AND MAINTENANCE........................39 WEIGHT STACK SELECTOR PIN INSPECTION.........................42 WARRANTY INFORMATION SPL0100 COMMERCIAL LIMITED WARRANTY........................43...

  • Page 7: Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 9: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

  • Page 10: Commercial Maintenance Schedule

    Clean guide rods and lubricate with a tefl on lubricant if equipped. Clean upholstery. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com.

  • Page 11: Dimensions And Weights

    190 lbs / 87 kg 250 lbs / 114 kg 310 lbs / 141 kg LENGTH HEIGHT 58” 58” 147 cm 147 cm WIDTH 41” 104 cm SHROUD OPTIONS Shroud Options Shrouds Model Description Acrylic Metal SPL0100 SPLSRDPS SPLSRDMS Extension...

  • Page 12: Weight Stack Configurations

    Number of Bumpers Top Weight** Model Description Light (L) Standard Heavy (H) Light (L) Standard Heavy (H) Generation 1 Generation 2 SPL0100 SPL-00- SPL-00- Extension TPL200X TPL300X SPL-ADRWT SPL-ADRWT * One box contains four 15lb / 6.8kg weight plates. REV02...

  • Page 13: Warning And Intended Use Labels

    WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA...
  • Page 14 WARNING AND INTENDED USE LABELS 1 2 3 4 5 6 7 8 CUT OUT AREA LBL-ADJ-SPL001 TALLER SHORTER LBL-ADJ-SPL033 Generation 1 LBL-ADJ-SPL005 LBL-ADJ-SPL004 LBL-ADJ-SPL035 Generation 2 LBL-ADJ-SPL010 LBL-WS-SPL310 LBL-QR-SPL0100 LBL-ADJ-SPL006 L E G E X T E N SI ON LBL-PR-SPL0100 LBL-PR-SPL0100...

  • Page 15: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support at 800.883.8783 or service@truefi tness.com. TOOLS NEEDED FOR INCLUDED TOOLS NEEDED FOR...
  • Page 16 NOTE: Supplemental unboxing video available on vimeo.com: https://vimeo.com/723498648?share=copy. ITEM PART NUMBER DESCRIPTION SPL-01-MFR250X MAIN FRAME ASSEMBLY SPL-01-UPR200X UPRIGHT ASSEMBLY SPL-00-RCK001 HOLDER, PHONE SPL01PDKT KIT, SPL0100 PAD SPL-00-CVR021 CAP, UPRIGHT SPL-00-CVR022 TRAY, UPRIGHT COVER SPL-01-CBL100 CABLE ASSEMBLY SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL SPLSRDMS*...

  • Page 17: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY NOTE: Supplemental assembly video available on vimeo.com: https://vimeo.com/723456483?share=copy. TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-01-MFR250X MAIN FRAME ASSEMBLY SPL-01-UPR200X UPRIGHT ASSEMBLY C1256 LPSHCS, 3/8”-16 X 1” E-COAT C 749B LOCK WASHER, 3/8”, BLK ZP C 754B WASHER, FLAT, 3/8”...
  • Page 18 STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY CONTINUED b. Align the main frame assembly with the upright assembly. Using an allen wrench, attach the main frame assembly to the upright assembly using the 6 hex screws, 6 lock washers, and 4 fl at washers you removed previously. NOTE: To help align parts, loosely attach all screws before fully tightening.
  • Page 19 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-01-UPR200X UPRIGHT ASSEMBLY SPL-01-MFR250X MAIN FRAME ASSEMBLY SD0183 PULLEY 114MM Wrench SPL-01-CAM001 LEG EXT CAM SPL-01-CAP201 CAP, CAM SPL-01-CBL100 CABLE ASSEMBLY Socket Wrench SPL-00-CBL001 CABLE BLOCK C1258 LPSHCS, 3/8”-16 X 1-3/4”...
  • Page 20 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED a. Using an allen wrench and a socket wrench or open end wrench, remove and set aside the top upright pulleys using 2 hex screws, 4 fl at washers, and 2 lock nuts. b.
  • Page 21 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED c. Route the cable through the top of the upright assembly and around the pulleys. d. Using an allen wrench and a socket wrench or open end wrench, reattach the top upright pulleys using 2 hex screws, 4 fl...
  • Page 22 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED g. Using an allen wrench, remove and set aside Using an allen wrench reattach the cam the cam assembly and cable block using 4 assembly using 4 hex screws, 5 lock washers, hex screws, 5 lock washers, and 1 shorter hex and 1 shorter hex screw.
  • Page 23 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY NOTE: Supplemental weight stack video available on vimeo.com: https://vimeo.com/773978716?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-01-UPR200X UPRIGHT ASSEMBLY SPL-00-GRB001 BRACE, GUIDE ROD SPLBX15* SUBASSEMBLY, SPL WEIGHT PLATES 4X15LB Wrench SPL-00-TPL300X SUBASSEMBLY, TOP WEIGHT - GENERATION 2 SPL-00-TPL200X SUBASSEMBLY, TOP WEIGHT - GENERATION 1 SPL-00-GRD101X...
  • Page 24 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED a. Using an allen wrench, remove and set aside the guide rod bracket from the upright assembly using 2 hex screws, 2 lock washers, and 2 fl at washers. b. Slide the 2 guide rods into place on the upright assembly.
  • Page 25 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED e. Using an allen wrench, reattach the guide rod bracket to the upright assembly using 2 hex screws, 2 lock washers, and 2 fl at washers.
  • Page 26 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED Insert the selector pin and route the cable down through the hole on the upright assembly. Using an open end wrench, attach the cable bolt to the top weight assembly. IMPORTANT! A minimum of 1/2" (12.7 mm) of the threaded portion of the cable bolt must be threaded into the top weight assembly.
  • Page 27 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED h. Insert the hex screw through the lock washer, fl at washer, and selector pin attachment point and reattach it to the Generation 1 top weight assembly using an allen wrench. Insert the hex screw through the lock washer, fl at washer, and selector pin attachment and reattach it to the Generation 2 top weight assembly using an allen wrench.
  • Page 28 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED After selecting the appropriate weight stack label, peel and remove the backing from the weight stack label. Using the selector pin retainer tube and the selector pin in the heaviest weight plate option, align the weight stack label with the plates.
  • Page 29 STEP 4—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY NOTE: Supplemental acrylic shroud video available on vimeo.com: https://vimeo.com/723539522?share=copy. NOTE: Supplemental metal shroud video available on vimeo.com: https://vimeo.com/774417897?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-01-UPR200X UPRIGHT ASSEMBLY SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL SPLSRDMS* SHROUD SET, SPL, SHORT METAL Flat Head Screwdriver...
  • Page 30 STEP 4—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY CONTINUED b. Assemble the acrylic front shrouds and insert them into the upright assembly using a rubber mallet. c. Using an allen wrench and a socket wrench or open end wrench, insert and tighten the 4 hex screws and 4 lock nuts into the front shrouds.
  • Page 31 STEP 4—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY a. Using an allen wrench, socket wrench or open end wrench, and a fl at head screwdriver, remove and set aside the shroud fasteners from the upright assembly using 4 hex screws, 4 lock nuts, 2 twist lock screws, and 2 lock washers.
  • Page 32 STEP 4—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY CONTINUED b. Slide the front metal shrouds onto the upright assembly. c. Using an allen wrench and a socket wrench or open end wrench, secure the front shrouds to the upright assembly using the 4 hex screws and 4 lock nuts. d.
  • Page 33 STEP 5—ATTACH TOP COVER TO UPRIGHT ASSEMBLY NOTE: Supplemental top cover video available on vimeo.com: https://vimeo.com/723539522?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrenches SPL-01-UPR200X UPRIGHT ASSEMBLY 3/32" and 5/32" SPL-00-CVR021 CAP, UPRIGHT SPL-00-CVR022 TRAY, UPRIGHT COVER SPL-00-CVR023 MAT, UPRIGHT TRAY C1239 FHCS, 8-32 X 1/2”...
  • Page 34 STEP 5—ATTACH TOP COVER TO UPRIGHT ASSEMBLY CONTINUED e. Reattach the tray cover onto the top cover using the Fully press the tray mat onto the tray cover. 4 previously set aside the tray cover hex screws. top cover  Verify that the tray mat is fully pressed into the tray cover.
  • Page 35 STEP 6—ATTACH PHONE HOLDER TO UPRIGHT ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION #2 Phillips Screwdriver SPL-01-UPR200X UPRIGHT ASSEMBLY SPL-00-RCK001 HOLDER, PHONE C1226 PHCS, #10-32 X 1”, BLK Using a #2 Phillips screwdriver, attach the phone holder to the upright assembly using 2 screws.
  • Page 36 TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-01-MFR250X MAIN FRAME ASSEMBLY SPL01PDKT KIT, SPL0100 PAD C 631A SHCS, 3/8”-16 X 3” BLK C 749B LOCK WASHER, 3/8”, BLK ZP C1257 LPSHCS, 3/8”-16 X 1-1/4” E-COAT C 754B WASHER, FLAT, 3/8” SAE, BLK C 629A SHCS, 3/8”-16 X 2-1/2”, BLK...

  • Page 37: Preventative Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 38: Other Scheduled Preventative Maintenance

    Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 39: Cable Inspection And Maintenance

    This means that the more often a piece of equipment is used, the greater the likelihood that cable wear will occur. This holds true for equipment made by any manufacturer and applies to urethane belts as well as wire rope cables.
  • Page 40 CABLE TENSION Ensure that the cables are adjusted to remove any slack using the threaded end fi ttings. These are normally located at the weight stack connection. Depending upon the machine, there may be multiple threaded fi tting on multiple cables. You can determine if there is too much slack by performing the exercise.
  • Page 41 CABLE FITTING ATTACHMENTS (IF APPLICABLE) Depending upon the machine, cable end fi ttings can either be securely fi xed, rotate about a single axis, or can be free fl oating. On machines where the cable fi tting is designed to rotate about a single axis, verify that the fi tting rotates freely and that the hardware used to secure the cable pivot axle (most likely a pin or a bolt) is correctly fastened.

  • Page 42: Weight Stack Selector Pin Inspection

    WEIGHT STACK SELECTOR PIN INSPECTION Verify that the weight stack selector pin is attached with the coiled lanyard to the top plate (if equipped). Verify the selector pin slides in and out of each weight plate. Place the selector pin in the top plate. Cycle the machine through the intended motion.

  • Page 43: Warranty Information

    HOURS OF OPERATION • This product is intended for Commercial use. If this product will not be used in this particular setting, please contact TRUE as this • Monday - Thursday 8:30am - 6:00pm (CST) warranty is void. •...
  • Page 44 SERIAL NUMBER: within 30 days of purchaser’s receipt of this Product. The serial The SPL0100 comes with one serial number on the base of the number must be intact on the Product for this Limited Warranty to machine. Please write down your serial number below and keep for your be valid.
  • Page 45 Activate Multiple Warranties at truefi tness.com Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 48 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
