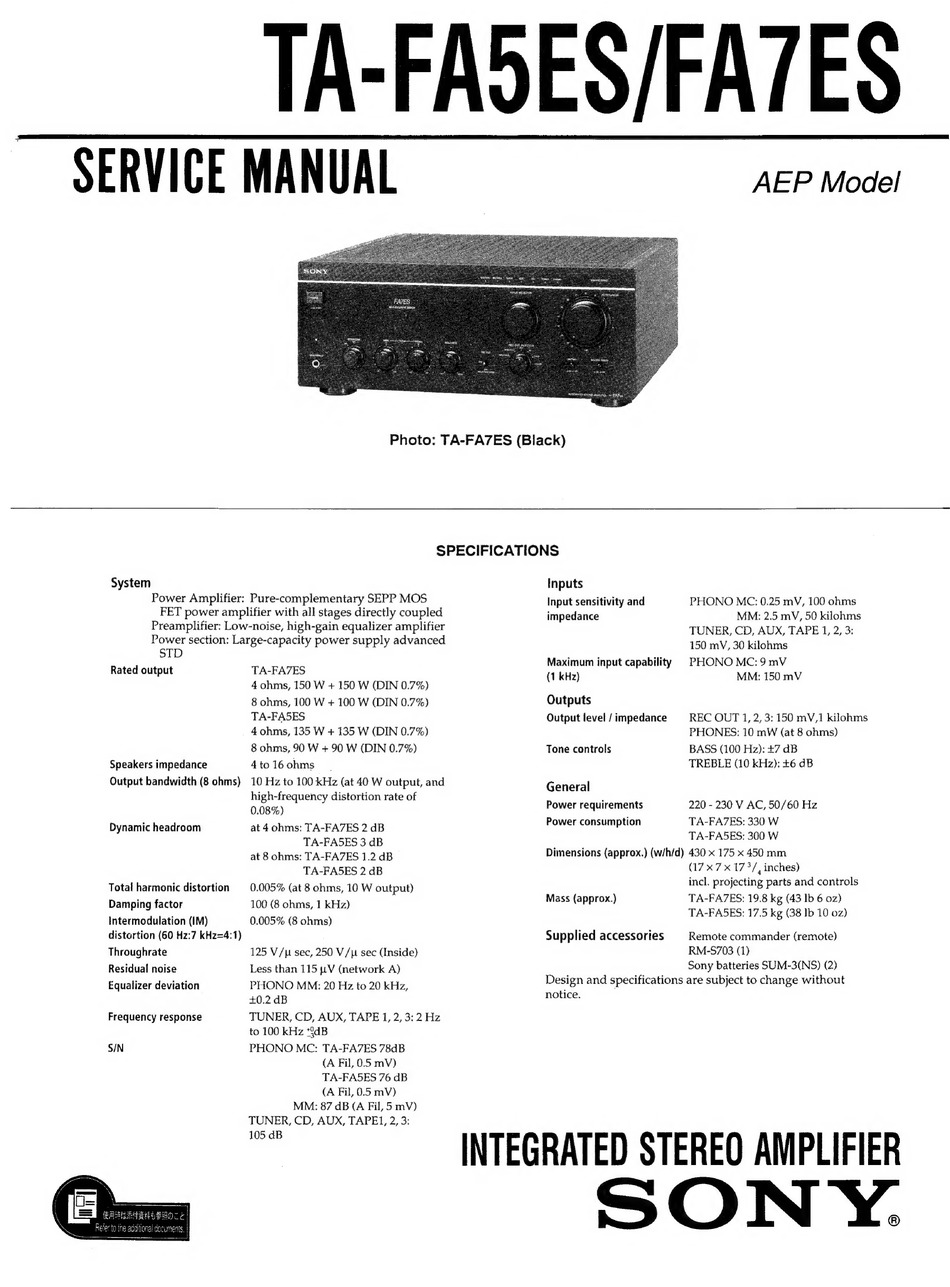

Sony TA-FA5ES Service Manual

TA-FASES/FA7ES
SERVICE MANUAL
Photo: TA-FA7ES (Black)
AEP Model
System
SPECIFICATIONS
Power Amplifier: Pure-complementary SEPP MOS
FET power amplifier with all stages directly coupled
Preamplifier: Low-noise, high-gain equalizer amplifier
Power section: Large-capacity power supply advanced
STD
Rated output
Speakers impedance
Output bandwidth (8 ohms)
Dynamic headroom
Total harmonic distortion
Damping factor
Intermodulation (IM)
distortion (60 Hz:7 kHz=4:1)
Throughrate
Residual noise
Equalizer deviation
Frequency response
S/N
TA-FA7ES
4 ohms, 150 W + 150 W (DIN 0.7%)
8 ohms, 100 W + 100 W (DIN 0.7%)
TA-FA5ES
4 ohms, 135 W + 135 W (DIN 0.7%)
8 ohms, 90 W + 90 W (DIN 0.7%)
4 to 16 ohms ;
10 Hz to 100 kHz (at 40 W output, and
high-frequency distortion rate of
0.08%)
at 4 ohms: TA-FA7ES 2 dB
TA-FASES 3 dB
at 8 ohms: TA-FA7ES 1.2 dB
TA-FA5ES 2 dB
0.005% (at 8 ohms, 10 W output)
100 (8 ohms, 1 kHz)
0.005% (8 ohms)
125 V/p sec, 250 V/U sec (Inside)
Less than 115 1. V (network A)
PHONO MM: 20 Hz to 20 kHz,
+0.2 dB
TUNER, CD, AUX, TAPE 1, 2, 3: 2 Hz
to 100 kHz *$dB
PHONO MC: TA-FA7ES 78dB
(A Fil, 0.5 mV)
TA-FASES 76 dB
(A Fil, 0.5 mV)
MM: 87 dB (A Fil, 5 mV)
TUNER, CD, AUX, TAPE, 2, 3:
105 dB
Inputs
Input sensitivity and
impedance
Maximum input capability
(1 kHz)
Outputs
Output level / impedance
Tone controls
General
Power requirements
Power consumption
PHONO MC: 0.25 mV, 100 ohms
MM: 2.5 mV, 50 kilohms
TUNER, CD, AUX, TAPE 1, 2, 3:
150 mV, 30 kilohms
PHONO MC: 9 mV
MM: 150 mV
REC OUT 1, 2,3: 150 mV,1 kilohms
PHONES: 10 mW (at 8 ohms)
BASS (100 Hz): +7 dB
TREBLE (10 kHz): +6 dB
220 - 230 V AC, 50/60 Hz
TA-FA7ES: 330 W
TA-FA5ES: 300 W
Dimensions (approx.) (w/h/d) 430 x 175 x 450 mm
Mass (approx.)
Supplied accessories
(17 x 7x 173/, inches)
incl. projecting parts and controls
TA-FA7ES: 19.8 kg (43 lb 6 oz)
TA-FASES: 17.5 kg (38 Ib 10 oz)
Remote commander (remote)
RM-S703 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without
notice.
INTEGRATED STEREO AMPLIFIER
SON
Y.
