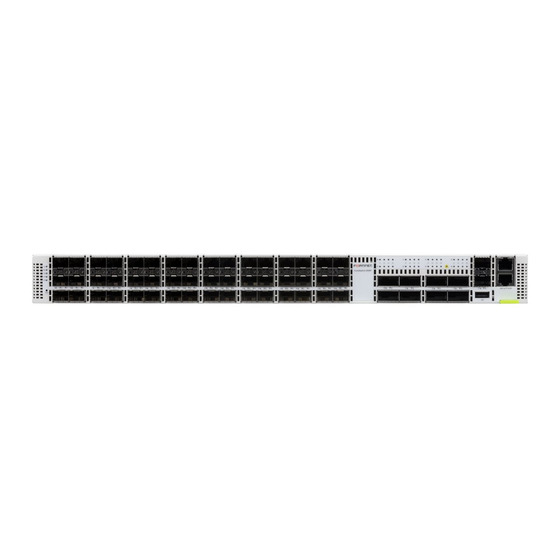

- Page 1 QuickStart Guide FortiSwitch 2048F FS-2048F...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
1x Console Cable (RJ45 to USB) Technical Support To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support Thank you for choosing Fortinet 2x Brackets, 2x Rails w/Screws 2x Stoppers (20x M4x5, 2x M4x8) 2x Power Cable Straps... -
Page 4: Setup Options
Parity: None Console Cable Flow Control: None Console Port Management Computer Note: For a detailed CLI guide, visit https://docs.fortinet.com Cloud Management (Connect a port to the Internet) Visit https://support.fortinet.com for registration and cloud management license Sign in at https://fortilan.forticloud.com to manage your Inventory List... -
Page 5: Sfp Modules
SFP Modules Rail Installation Installation Install Brackets Attach Rails Secure Stoppers Cage Socket 1x M4x8 8x M4x5 screws 12x M4x5 screws (4 on each side) (6 on each side) (1 on each side) Removal Cage Socket Note: The recommended clearance is 1.5 inches above and below the device. - Page 6 Front FS-2048F Ports 49 to 56 (QSFP28) Fan LED fan status Green: 100Gbps link established Green: fan operating normally Flashing Green: 100Gbps data activity Red: fan failure detected Off: No link established Off: fan is off Blue: 40Gbps link established PS1 &...
- Page 7 Rear FS-2048F Power Supplies (x2) 100-240VAC, 50-60Hz, 6A Max, redundant, hot-swappable...
- Page 8 The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: : Shock Hazard. Disconnect all power sources. 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： CAUTION https://www.fortinet.com/bsmi : Risque d’électrocution. Débranchez toutes les sources d’alimentation. ATTENTION 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。...
- Page 9 Fortinet.com...
