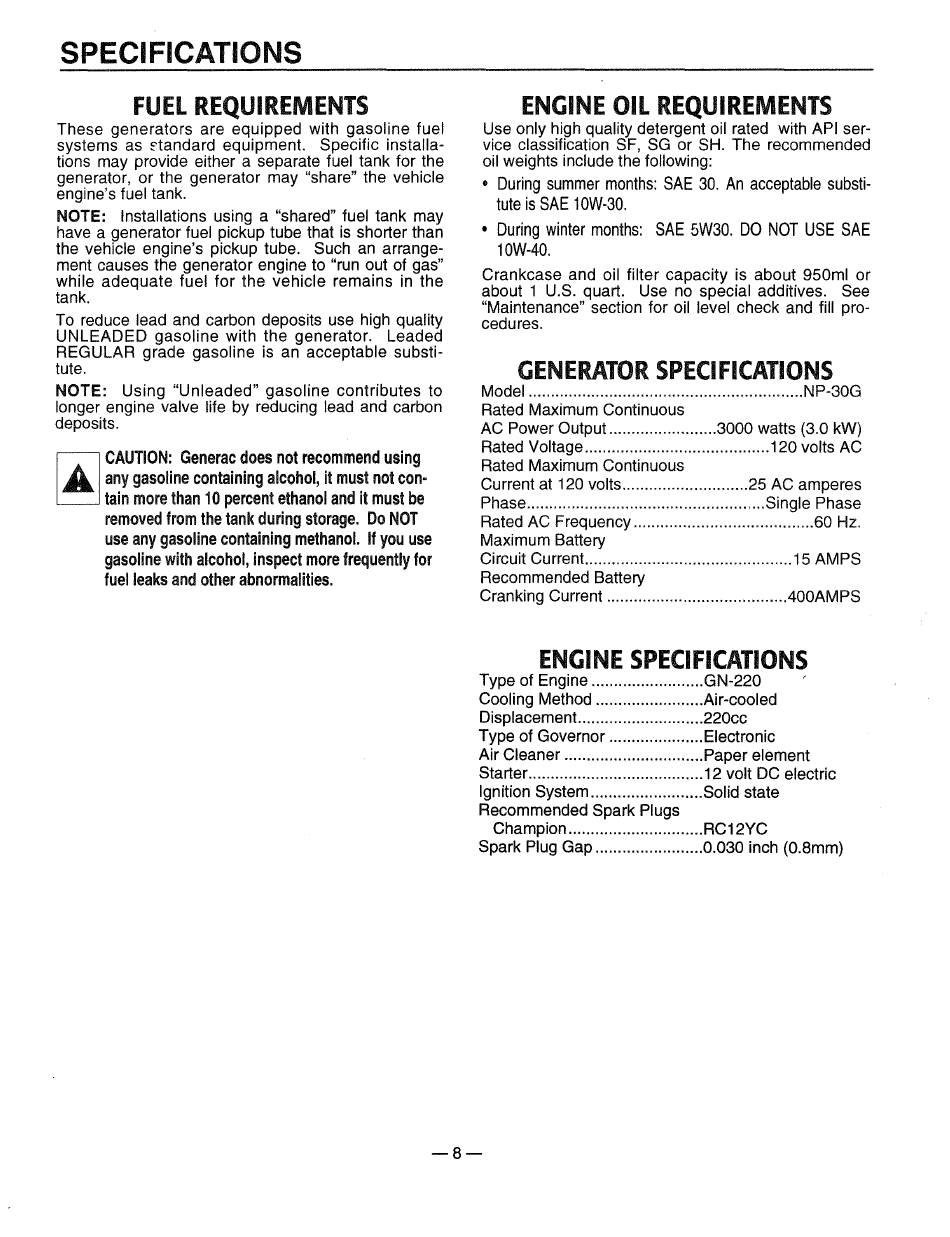

SPECIFICATIONS
FUEL REQUIREMENTS
These generators are equipped with gasoline fuel
systems as ftandard equipment. Specific installa-
tions may provide either a separate fuel tank for the
generator, or the generator may "share" the vehicle
engine's fuel tank.
NOTE: Installations using a "shared" fuel tank may
have a generator fuel pickup tube that is shorter than
the vehicle engine's pickup tube. Such an arrange-
ment causes the generator engine to "run out of gas"
while adequate fuel for the vehicle remains in the
tank.
To reduce lead and carbon deposits use high quality
UNLEADED gasoline with the generator. Leaded
REGULAR grade gasoline is an acceptable substi-
tute.
NOTE: Using "Unleaded" gasoline contributes to
longer engine valve life by reducing lead and carbon
deposits.
CAUTION: Generac does not recommend using
any gasoline containing alcohol, it must not con·
tain more than 10 percent ethanol and it must be
removed from the tank during storage. Do NOT
use any gasoline containing methanol. If you use
gasoline with alcohol, inspect more frequently for
fuel leaks and other abnormalities.
ENGINE OIL REQUIREMENTS
Use only high quality detergent oil rated with API ser-
vice classification SF, SG or SH. The recommended
oil weights include the following:
• During summer months: SAE 30. An acceptable substi-
tute is SAE 10W-30.
• During winter months: SAE 5W30. DO NOT USE SAE
10W-40.
Crankcase and oil filter capacity is about 950ml or
about 1 U.S. quart. Use no special additives. See
"Maintenance" section for oil level check and fill pro-
cedures.
GENERATOR SPECIFICATIONS
Modei ............................................................. NP-30G
Rated Maximum Continuous
AC Power Output ........................ 3000 watts (3.0 kW)
Rated Voltage ......................................... 120 volts AC
Rated Maximum Continuous
Current at 120 volts ............................ 25 AC amperes
Phase ..................................................... Single Phase
Rated AC Frequency ........................................ 60 Hz.
Maximum Battery
Circuit Current... ........................................... 15 AMPS
Recommended Battery
Cranking Current ....................................... .400AMPS
ENGINE SPECIFICATIONS
Type of Engine ......................... GN-220
Cooling Method ........................ Air-cooled
Displacement. ........................... 220cc
Type of Governor ..................... Electronic
Air Cleaner ............................... Paper element
Starter. ...................................... 12 volt DC electric
Ignition System ......................... Solid state
Recommended Spark Plugs
Champion .............................. RC12YC
Spark Plug Gap ........................ 0.030 inch (0.8mm)
- 8 -
