Emerson Rosemount 3051 Quick Start Manual

Emerson Rosemount 3051 Quick Start Manual

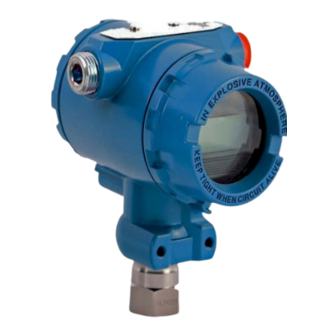

Pressure transmitter
Hide thumbs Also See for Rosemount 3051:

Advertisement

Quick Links

Download this manual
Quick Start Guide
00825-0100-5007, Rev DE
August 2023
Rosemount
3051 Pressure
™
Transmitter

Advertisement

loading

Related Manuals for Emerson Rosemount 3051

Summary of Contents for Emerson Rosemount 3051

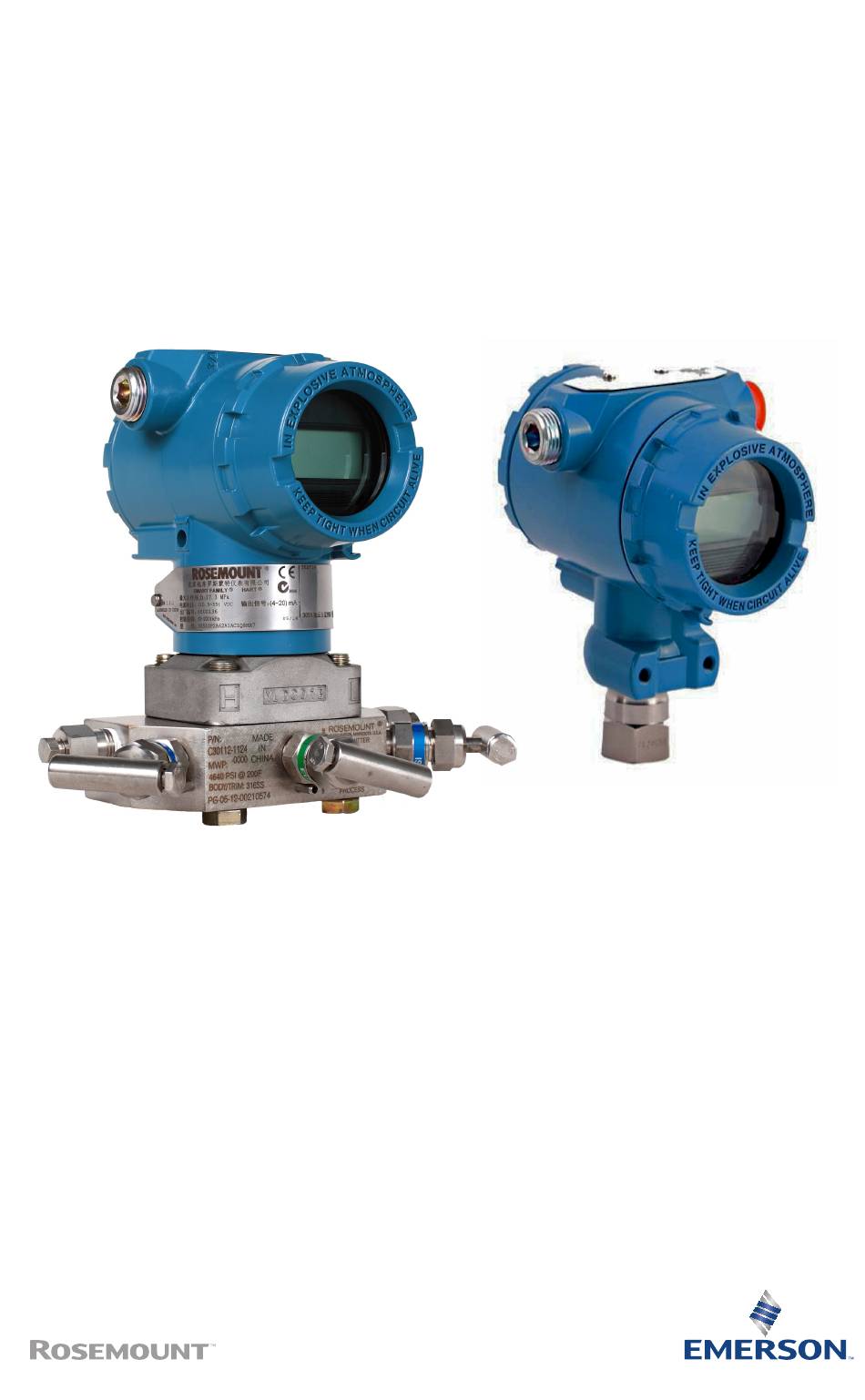

  • Page 1 Quick Start Guide 00825-0100-5007, Rev DE August 2023 Rosemount 3051 Pressure ™ Transmitter...

  • Page 2: Table Of Contents

    Quick Start Guide August 2023 Contents About this guide .......................... 3 System readiness......................... 5 Transmitter installation....................... 7 Safety instrumented systems installation................23 Product certifications........................ 24 Rosemount 3051...

  • Page 3: About This Guide

    Installation of device in an explosive environment must be in accordance with appropriate local, national, and international standards, codes, and practices. Review the approvals section of the Rosemount 3051 Manual for any restrictions associated with a safe installation. In an explosionproof/flameproof installation, do not remove the transmitter covers when power is applied to the transmitter.
  • Page 4 Physical security is an important part of any security program and fundamental in protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility. Rosemount 3051...

  • Page 5: System Readiness

    Rosemount 3051 device revisions and drivers Table 2-1 provides the information necessary to ensure you have the correct device driver and documentation for your device. Table 2-1: Rosemount 3051 with 4-20 mA HART protocol device revisions ® and files Release...
  • Page 6 HART devices. To access new functionality, download the new device driver. Emerson recommends downloading new device driver files to ensure full functionality. HART revision 5 and 7 selectable, Local Operator Interface (LOI), scaled variable, configurable alarms, and expanded engineering units.

  • Page 7: Transmitter Installation

    August 2023 Quick Start Guide 3  Transmitter installation 3.1  Mounting the transmitter 3.1.1  Mount the transmitter in liquid applications Procedure 1. Place taps to the side of the line. Note When mount the transmitter, verify the drain/vent valves are oriented upward. Mount the transmitter beside or below the taps.
  • Page 8 3.1.2  Mount the transmitter in gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount the transmitter beside or above the taps. Figure 3-2: Coplanar and in-line gas applications Coplanar In-line Flow Rosemount 3051...
  • Page 9 August 2023 Quick Start Guide 3.1.3  Mount the transmitter in steam applications Procedure 1. Place taps to the side of the line. 2. Mount the transmitter beside or below the taps. 3. Fill impulse lines with water. Figure 3-3: Coplanar and in-line steam applications Coplanar In-line Flow...
  • Page 10 If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow the assembly guidelines to ensure a tight seal for optimal performance. Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 3-5 illustrates common transmitter assemblies with the required bolt lengths.
  • Page 11 Table 3-1. If bolt material is not shown in Table 3-1, contact a local Emerson representative for more information. Table 3-1: Torque values for the flange and flange adapter bolts Bolt material Head markings Initial torque Final torque  ...
  • Page 12 Mounting the transmitter so that the process can drain away keeps the vent path free of any obstruction, including but not limited to paint, dust, and lubrication. Figure 3-6: In-line Gage Low Side Pressure Port A. Low side pressure port (atmospheric reference) Rosemount 3051...
  • Page 13 August 2023 Quick Start Guide 3.1.6  Consider housing rotation To improve field access to wiring or to better view the optional LCD display: Procedure 1. Loosen the housing rotation set screw using a ″ hex wrench. 2. Turn the housing left or right maximum up to 180° from its original position.
  • Page 14 (locked symbol) any configuration of the transmitter. Default security is Off (unlocked symbol). Slide the security and alarm switches into the preferred position using a small screwdriver. Note The cover must be fully engaged to comply with explosion- proof requirements. Reattach the transmitter cover. Rosemount 3051...
  • Page 15 August 2023 Quick Start Guide Figure 3-8: Transmitter Electronics Board Without LCD display With LCD/LOI display   A. Alarm B. Security 3.3  Connect the wiring and power up Figure 3-9: Transmitter Wiring Diagrams (4–20 mA) A. 24 Vdc supply B. R ≥...
  • Page 16  CAUTION Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 3051 case is properly grounded. Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
  • Page 17 Rosemount 3051 Reference Manual for configuration instructions using AMS Device Manager. 3.4.1  Verifying configuration with a Field Communicator A Rosemount 3051 DD must be installed on the Field Communicator to verify configuration. Fast Key sequences for the latest DD are shown in Table 2-2.
  • Page 18 Quick Start Guide August 2023 Note Emerson recommends installing the latest DD to access the complete functionality. Visit Field Communicator for information on updating the DD library. Procedure Verify device configuration using the Fast Key sequences in Table 2-2. • A check (✓) indicates the basic configuration parameters. At minimum, these parameters should be verified as part of configuration and startup.
  • Page 19 August 2023 Quick Start Guide   Function Fast Key sequence HART HART 5 ®   Password 2, 2, 6, 5 2, 2, 6, 4   Scaled Variable 3, 2, 2 3, 2, 2   HART revision 5 to HART Revision 7 2, 2, 5, 2, 3 2, 2, 5, 2, 3 switch...
  • Page 20 ® If the HART configuration tool is not capable of communicating with HART Revision 7, the Rosemount 3051 will load a generic menu with limited capability. The following procedures will switch the HART revision mode from the generic menu: Procedure Manual Setup → Device Information → Identification → Message...
  • Page 21 A zero trim can be performed using either a Field Communicator or configuration buttons. For instructions using AMS Device Manager, see the Rosemount 3051 Reference Manual. Note When performing a zero trim, ensure that the equalization valve is open and all wet legs are filled to the correct level.
  • Page 22 Perform trim with LOI (option M4) for a zero trim. 3. Set the transmitter pressure. 4. See Figure 3-12 for the operating menu. a) Perform an analog zero trim by selecting Rerange. b) Perform a digital zero trim by selecting Zero Trim. Rosemount 3051...

  • Page 23: Safety Instrumented Systems Installation

    August 2023 Quick Start Guide 4  Safety instrumented systems installation For safety certified installations, refer to the Rosemount 3051 Reference Manual for installation procedure and system requirements. Quick Start Guide...

  • Page 24: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com. 5.1.2  Europe E8 ATEX Flameproof and Dust Certificate DEKRA12ATEX0212X (Ex d);...
  • Page 25 August 2023 Quick Start Guide 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information.
  • Page 26 0 (process connection) and zone 1 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. Installation, maintenance, and use shall take into account the environmental conditions to Rosemount 3051...
  • Page 27 August 2023 Quick Start Guide which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime. 2. Flameproof joints are not intended for repair. 3. Some variants of the equipment have reduced markings on the nameplate.
  • Page 28 GB3836.1-2021, GB/T3836.4-2021 Standards Ex ia IIC T4 Ga Markings N3 China Type n GYJ23.1148X Certificate GB/T 3836.1-2021，GB/T 3836.-2021 Standards Ex ec IIC T5 Gc Markings 5.1.5  Combinations Combination of E7, I7, and N7 Combination of E8, I1, and N1 Rosemount 3051...
  • Page 29 TYPE 4X IP 68 OPTIONAL SINGLE SEAL Specific Conditions for Use: 1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 30 (2019)+UPD3 (2021), CAN/CSA C22.2 No. 60079-0:19, CAN/CSA C22.2 No. 60079-1:16, CAN/CSA-60079-11:14, ANSI-ISA-12.27.01–202 XP: CL I DIV 1 GP B, C, D T5 Markings Ex db IIC T5 Gb SEAL NOT REQUIRED DIP: CL II, DIV 1, GP E, F, G; CL III T5; Rosemount 3051...
  • Page 31 2. Equipment evaluated for atmospheric pressure range between 80 kPa (0,8 bar) to 110 kPa (1,1 bar). 3. The Rosemount 3051 Transmitter with the transient terminal block (Option code T1) will not pass the 500 Vrms dielectric strength test, and this must be taken into account during installation.
  • Page 32 Quick Start Guide August 2023 Specific Conditions for Use: 1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 33 August 2023 Quick Start Guide build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. 4. Appropriate cable, glands, and plugs need to be suitable for a temperature of 5 °C greater than maximum specified temperature for location where installed.
  • Page 34 (–60 °C ≤ T ≤ +80 °C) Temperature class Process connection Ambient temperature temperature –60 to +70 °C –60 to +70 °C –60 to +80 °C –60 to +80 °C –50 to +120 °C –60 to +80 °C Rosemount 3051...
  • Page 35 August 2023 Quick Start Guide Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm with less than 1 mm thickness that forms a boundary between zone 0 (process connection) and zone 1 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material.
  • Page 36 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. Rosemount 3051...
  • Page 37 August 2023 Quick Start Guide 5.2.7  China E3 China Flameproof GYJ15.1300X Certificate GB3836.1-2010, GB3836.2-2010 Standards Ex d IIB+H T5 Gb Markings Special Conditions for Safe Use (X): 1. Ambient temperature range: –20 °C ~ +85 °C. 2. The earth connection facility in the enclosure should be connected reliably.
  • Page 38 5.2.9  Conduit plugs and adapters IECEx Flameproof and Increased Safety IECEx FMG 13.0032X Certificate IEC60079-0: 2011, IEC60079-1: 2007, IEC60079-7: Standards 2006-2007 Ex de IIC Gb Markings ATEX Flameproof and Increased Safety FM13ATEX0076X Certificate EN60079-0: 2012, EN60079-1: 2007, IEC60079-7: 2007 Standards Rosemount 3051...
  • Page 39 August 2023 Quick Start Guide Markings II 2 G Ex de IIC Gb Table 5-8: Conduit plug thread sizes Thread Identification mark M20 x 1.5 ½–14 NPT ½ NPT Table 5-9: Thread adapter thread sizes Male thread Identification mark M20 x 1.5–6g ½–14 NPT ½–14 NPT ¾–14 NPT...
  • Page 40 Quick Start Guide August 2023 5.3  Declaration of Conformity Rosemount 3051...
  • Page 41 August 2023 Quick Start Guide Quick Start Guide...
  • Page 42 Quick Start Guide August 2023 Rosemount 3051...
  • Page 43 August 2023 Quick Start Guide Quick Start Guide...
  • Page 44 Quick Start Guide August 2023 5.4  China RoHS Rosemount 3051...
  • Page 45 August 2023 Quick Start Guide Quick Start Guide...
  • Page 46 Quick Start Guide August 2023 Rosemount 3051...
  • Page 47 August 2023 Quick Start Guide Quick Start Guide...
  • Page 48 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
