Johnson Controls VG8000V Series Quick Start Manual

DN 15 - DN 150 • Nodular Iron • PN 16
I
ntroduction
The VG8000V Series
pneumatically operated nodular iron valves are
designed primarily, to regulate the flow of water in
response to the demand of a controller mainly in
heating, but also
conditioning systems. They are available in two-
way configurations
configurations. A variety of electric and pneumatic
actuators are available.
Valves in two-way and three-way mixing
configurations.
PN 16 rated nodular iron valve bodies.
Use of standard Johnson Controls spring
loaded, self-adjusting Teflon-Viton-Teflon
V-ring packing.
Low leakage rate for two and three-way
valves.
Electric and Pneumatic actuators available,
either factory mounted or separately for in-
situ installation, for all valve configurations.
Slotted stem with clamp-coupler system for
q
simple actuator attachment.
© 2009 Johnson Controls, Inc.
Order No. DS 10.484 E
VG8000V Series Flanged Valves
electrically and
in ventilating, and
and three-way mixing
Features and Benefits
air
VG8000V Series Valves

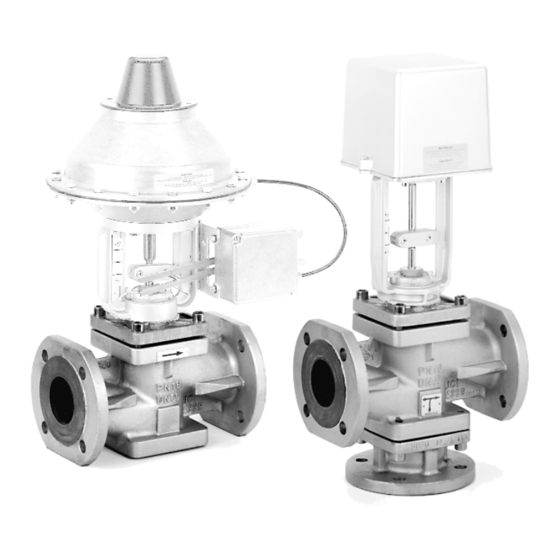

With the PA-2000 Pneumatic (left) and
RA-3000 Electric Actuators
Covers common HVAC applications up to 140°C.
Compact, lighter and more ductile than ordinary cast
iron.
Reliable, field-proven seal, applicable to a wide
operating temperature range. No readjustment
required.
Provides maximum energy efficiency.
Allows optimum actuator selection.
Quick and easy fitting reduces installation costs.
Product Bulletin VG8000V
Issue Date 05 2009
