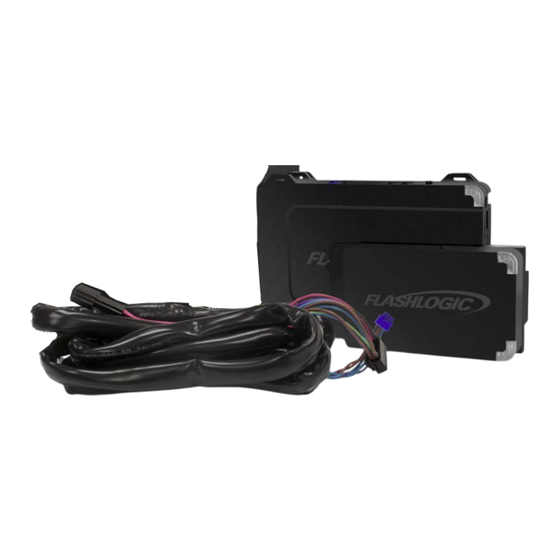

ADS FLASHLOGIC FLRSBZ1 Install Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OEM-IDS(RS)-BZ1A-[FLRSBZ1]-EN
TERMS OF USE: Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by
Certified Technicians who are employed by a registered business specialized in the installation of auto-
motive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle,
it is the Certified Technician's responsibility to review the most current Product Guide, Install Guide
and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever,
including but not limited to any consequential damages, incidental damages, damages for loss of time,
loss of earnings, loss of profit, commercial loss, loss of economic opportunity and the like that may or
may not have resulted from the use, misuse, improper installation or operation of its products. ADS
reserves itself the right to suspend any Weblink® account without notice and decline to offer technical
support to non-Certified Technicians, non-compliant Certified Technicians or end users.
Patent No. US 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021
INSTALL GUIDE
DOCUMENT NUMBER
77322
REVISION DATE
20211012
FIRMWARE
OEM-IDS(RS)-BZ1A-[FLRSBZ1]
HARDWARE
FLRSBZ1
ACCESSORIES
FLPROG (REQUIRED)
ADS-TOOLS-MB01 (OPTIONAL)
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
www.flashlogic.com

Advertisement

loading

Related Manuals for ADS FLASHLOGIC FLRSBZ1

Summary of Contents for ADS FLASHLOGIC FLRSBZ1

  • Page 1 ADS reserves itself the right to suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, non-compliant Certified Technicians or end users.
  • Page 2 PAGE 2 OF 21 VEHICLE LIST - 1 OF 1 • 20211012 DOC.: #77322 FEATURES NOTES I This fi rmware covers Automatic Trans- mission (AT) vehicles only. II All the covered Push To Start (PTS) vehicles are equipped with a keyless authorization system called "Keyless Go".
  • Page 3 1 3 5 7 BLUE BLACK WEBLINK CABLE (required accessory sold separately) ELECTRONIC IGNITION SWITCH REMOVAL TOOL (accessory sold separately) WEBLINK CABLE IGNITION ADS-TOOLS-MB01 OR MODULE COMPUTER SWITCH MERCEDEZ BENZ P/N 639 589 01 07 00 WEBLINK PORT USB PORT 4 PIN BLACK CABLE Patent No.
  • Page 4 PAGE 4 OF 21 TECHNICAL NOTE - 1 OF 1 • 20211012 DOC.: #77322 IMPORTANT INSTALL VIDEO GALLERY AVAILABLE ONLINE Before installing this product, consult our Install Video Gallery and watch: • Vehicle Disassembly Procedure videos • Module Connection Procedures videos •...

  • Page 5: Interior View

    PAGE 5 OF 21 COMPONENT LOCATOR - 1 OF 1 • 20211012 DOC.: #77322 INTERIOR VIEW DRIVER SIDE VIEW PASSENGER SIDE VIEW Patent No. US 8,856,780 CA 2759622 Automotive Data Solutions Inc. © 2021 OEM-IDS(RS)-BZ1A-[FLRSBZ1]-EN www.flashlogic.com...
  • Page 6 PAGE 6 OF 21 MODULE INSTALLATION PROCEDURE - 1 OF 1 • 20211012 DOC.: #77322 START the vehicle. Verify all vehicle WARNING: Any vehicle harness that is If the vehicle is not equipped with a factory functionalities. If the vehicle displays error disconnected during installation, must be hood switch, install an aftermarket hood ON START...
  • Page 7 PAGE 7 OF 21 TYPE 1 - WIRING DIAGRAM - 1 OF 1 • 20211012 DOC.: #77322 WARNING STEP 1 CONNECT TO VEHICLE START VEHICLE WITH OEM KEYFOB TO TEST CONNECTIONS 1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4 2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1 BLACK 6 PIN IGNITION SWITCH...
  • Page 8 PAGE 8 OF 21 TYPE 2 - WIRE CHART - 1 OF 1 • 20211012 DOC.: #77322 CanH Black 02 pin 01 Brown/Red (DATA) Trunk, passenger side GL Class PTS AT 07-12 CanL Black 02 pin 02 Brown (DATA) Trunk, passenger side CanH Black 02 pin...
  • Page 9 PAGE 9 OF 21 TYPE 2 - WIRING DIAGRAM - 1 OF 2 • 20211012 DOC.: #77322 WARNING STEP 1 CONNECT TO VEHICLE START VEHICLE WITH OEM KEYFOB TO TEST CONNECTIONS 1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4 2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1 BLACK 6 PIN IGNITION SWITCH...
  • Page 10 PAGE 10 OF 21 TYPE 2 - WIRING DIAGRAM - 2 OF 2 • 20211012 DOC.: #77322 INSTRUCTIONS TO CHANGE THE HOUSING OF CAN WIRES (ONLY IF THE CAN CONNECTOR DOES NOT FIT IN C1) 1- RELEASE RETAINING CLIP OF CAN CONNECTOR. 2- RELEASE LOCKING MECHANISM.
  • Page 11 PAGE 11 OF 21 MODULE PROGRAMMING PROCEDURE - STD KEY - 1 OF 1 • 20211012 DOC.: #77322 LED 1 is solid RED. Insert key into ignition. Turn key to OFF position. Remove key from ignition. START START Turn key to ON position. Module Programming Procedure completed.

  • Page 12: Wire Chart

    PAGE 12 OF 21 MODULE PROGRAMMING PROCEDURE - PTS - 1 OF 1 • 20211012 DOC.: #77322 >> >> One of the connectors of the CAN junction If the parking lights do NOT fl ash, the required connector controls the keyless authorization connector is NOT found.
  • Page 13 PAGE 13 OF 21 VALET MODE PROGRAMMING PROCEDURE - 1 OF 1 • 20211012 DOC.: #77322 >> >> NOTE: In Valet Mode, the Remote starter is not To exit valet mode: repeat steps 1 to 4 then functional. Keyless entry, Lock and Unlock will START vehicle for 15 seconds.
  • Page 14 PAGE 14 OF 21 MODULE NAVIGATION PROCEDURE - 1 OF 1 • 20211012 DOC.: #77322 >> It is mandatory to exit the Module Navigation TO ACCESS THE OPTIONS: Press and hold To save and return to the OPTIONS: Press and at the end of this procedure.
  • Page 15 PAGE 15 OF 21 MODULE NAVIGATION CHART - 1 OF 1 • 20211012 DOC.: #77322 MODULE NAVIGATION CHART: NOTES I Default settings are listed in bold. DISARM/UNLOCK BEFORE START II Make sure the option is covered on the vehicle before attempting to change the setting.
  • Page 16 PAGE 16 OF 21 REMOTE STARTER ERROR CODES - 1 OF 1 • 20211012 DOC.: #77322 REMOTE STARTER ERROR CODES: NOTES Foot brake is ON. I WARNING: The following applies only when the parking lights are connected and supported by the system. Hood is open.
  • Page 17 PAGE 17 OF 21 MODULE DIAGNOSTICS - 1 OF 1 • 20211012 DOC.: #77322 TEST MODULE Flashing RED Missing/wrong information from fi rmware or vehicle. Solid RED Module waiting for more vehicle information. Flashing GREEN Additional steps required to complete module programming. DURING PROGRAMMING Solid GREEN then OFF Module correctly programmed.
  • Page 18 PAGE 18 OF 21 MODULE RESET PROCEDURE - 1 OF 1 • 20211012 DOC.: #77322 Disconnect all connectors from module except Reconnect all connectors. the BLACK 20-PIN connector. Disconnect the BLACK 20-PIN connector. Repeat programming procedure. >> PRESS AND HOLD the module’s programming Failure to follow procedure may result with a button while connecting the BLACK 20-PIN DTC or a CHECK ENGINE error message.
  • Page 19 PAGE 19 OF 21 TAKEOVER PROCEDURE - 1 OF 1 • 20211012 DOC.: #77322 >> All vehicle doors must be closed and locked Press and release BRAKE pedal. prior to remote start sequence. The vehicle can be remote started up to 5 times between normal key or push button start operation.
  • Page 20 PAGE 20 OF 21 INSTALLATION CHECKLIST - 1 OF 2 • 20211012 DOC.: #77322 CHECKLIST WARNING: Vehicle engine will start many times. Test in a well ventillated area. Open driver door window for easy vehicle access. Enter vehicle. Start the vehicle and let it run for 15 seconds. Stop the vehicle and exit vehicle.
  • Page 21 PAGE 21 OF 21 INSTALLATION CHECKLIST - 2 OF 2 • 20211012 DOC.: #77322 CHECKLIST Exit vehicle. Close all doors. Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. Wait for the vehicle to start. QUESTION 7: Is the vehicle equipped with a keyless authorization system (Keyless Go) ? ¨...
