INSTALL GUIDE
2022 AUDI A4 PTS AUTOMATIC
DOCUMENT NUMBER
A5EB220
REVISION DATE
20220819_094230
FIRMWARE
RSD-AUD1
HARDWARE
CMHCXA0
ACCESSORIES
ATTENTION: TO COMPLETE THIS INSTALLATION SOME ACCESSORIES MAY BE
REQUIRED. VISIT OUR WEBSITE TO SEE ALL THE REQUIRED ACCESSORIES FOR
YOUR VEHICLE.
TERMS OF USE
Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by Certified Technicians who are employed
by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning
installation of an ADS product in a vehicle, it is the Certified Technician's responsibility to review the most current Product Guide,
Install Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but
not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit,
commercial loss, loss of economic opportunity and the like that may or may not have resulted from the use, misuse, improper
installation or operation of its products. ADS reserves itself the right to suspend any Weblink® account without notice and
decline to offer technical support to non-Certified Technicians, noncompliant Certified Technicians or end users.
www.idatalink.com
Advertisement
Table of Contents

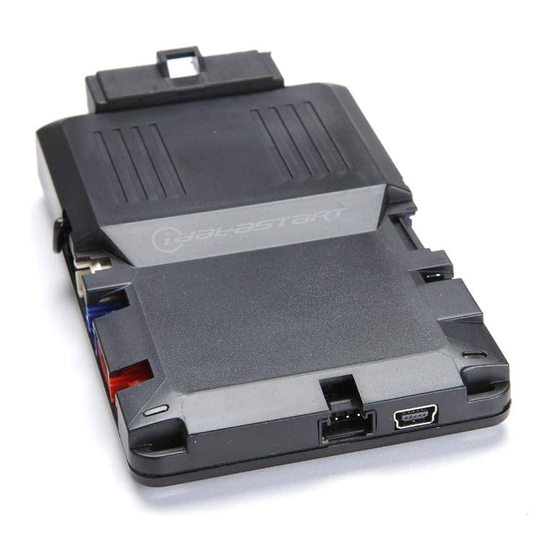

Related Manuals for ADS idatastart CMHCXA0
