ZEISS
S88 / OPMI Lumera T
Instructions for Use
G-30-1682-en
Version 8.0
2018-11-08

Advertisement

Table of Contents
loading

Related Manuals for Zeiss OPMI Lumera T

Summary of Contents for Zeiss OPMI Lumera T

  • Page 1 ZEISS S88 / OPMI Lumera T Instructions for Use G-30-1682-en Version 8.0 2018-11-08...
  • Page 2 Device names in For the purposes of clarity and improved readability, the device name these Instructions for Use "S88 / OPMI Lumera T" has been shortened to "OPMI Lumera T" in these Instructions for Use. Trademark OPMI, OPMI Lumera, Superlux, Invertertube, HaMode and EDIS are trademarks or registered trademarks of Carl Zeiss Meditec AG or another company of the ZEISS group in Germany and/or other countries.
  • Page 3 S88 / OPMI Lumera T Summary of the section Section: Safety measures Section: Device overview Section: Preparations for use Section: Operation Section: What to do in the event of malfunctions Section: Care and Maintenance Section: Device data Section: Keyword index Version 8.0...
  • Page 4 S88 / OPMI Lumera T Version 8.0 Page 4 G-30-1682-en...

  • Page 5: Table Of Contents

    S88 / OPMI Lumera T Safety measures Safety measures Key to symbols ................. 7 Hazard symbols ..................7 Information symbols ...................7 Device names in these Instructions for Use ..........8 Target group ..................8 Field of use ..................8 Intended use ....................8 Normal use ....................9 Liability and warranty ...............
  • Page 6 Safety measures S88 / OPMI Lumera T Version 8.0 Page 6 G-30-1682-en...

  • Page 7: Key To Symbols

    S88 / OPMI Lumera T Safety measures Key to symbols We would like to inform you about safety requirements with which you must comply when working with this system. This chapter contains a summary of the most important information concerning matters relevant to instrument safety.

  • Page 8: Device Names In These Instructions For Use

    S88 / OPMI Lumera T Device names in these Instructions for Use For the purposes of clarity and improved readability, the device name "S88 / OPMI Lumera T" has been shortened to "OPMI Lumera T" in these Instructions for Use. Target group...

  • Page 9: Normal Use

    S88 / OPMI Lumera T Safety measures Normal use OPMI Lumera T was designed for surgical procedures in the field of ophthalmology. Through its specific SCI (Stereo Coaxial Illumination) system, various light sources (halogen, Superlux Eye xenon), the clip-on RESIGHT fundus viewing system and its mechanical construction, it is adapted to the ophthalmic needs of the anterior and posterior segments of the eye.

  • Page 10: Notes For The Operator

    • Note the symbols and labels attached to the device! (See page 36). • Use only original accessories approved by ZEISS. Legal regulations • Check regularly that the legal regulations applicable in your country with regard to accident prevention and work safety are being complied with.
  • Page 11 The system may be transported over long distances (e.g. during relocation, return for repair, etc.) only in its original packaging or in special return packaging. Please contact your dealer or ZEISS Service for this purpose. • This instrument is a high-grade technological product. To ensure optimum performance and safe working order, we recommend having it checked by our service representative as part of regular scheduled maintenance.
  • Page 12 Safety measures S88 / OPMI Lumera T Optics and light • Never look at the sun through the binocular tube, the objective lens or an eyepiece. • Avoid looking directly into the light source, e.g. into the microscope objective lens or into the light guide, in order to prevent damage to the eye! •...

  • Page 13: Requirements For Operation

    Safety measures Requirements for operation Prior to the very first use A ZEISS Service representative or an expert authorized by ZEISS will install the system. Please make sure that the following requirements continue to be met for further operation: WARNING The device must not be modified without any approval! Do not modify the device without approval from the manufacturer.

  • Page 14: Before Every Use

    Safety measures S88 / OPMI Lumera T Before every use • When mounting accessory equipment, please make sure that the admissible total weight of the surgical microscope is not exceeded. (see "Maximum load" label or the section entitled "Technical Data").
  • Page 15 S88 / OPMI Lumera T Safety measures • In the event of overheating, the lamp switches off automaticall. When the lamp has cooled down, it switches on again automatically. The patient's eye may be injured by the sudden high light intensity.

  • Page 16: During Use

    You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. Any deviation from these values is only permissible when medically justified.
  • Page 17 S88 / OPMI Lumera T Safety measures • In the event that the zoom function can no longer be controlled via the foot control panel or the control panel, adjust the zoom factor manually at the microscope. • In the event that the focusing function can no longer be controlled via the foot control panel or the control panel, use the suspension arm to focus the surgical field.

  • Page 18: After Every Use

    Safety measures S88 / OPMI Lumera T After every use • Always use the master switch to turn off the device if it is not in use. • Insufficient, incorrect or wrong cleaning or disinfection deviating from these Instructions for Use may lead to an infection of the patient or the medical staff.

  • Page 19: Phototoxic Injury To The Patient's Retina

    ZEISS has addressed this aspect by providing its systems with a device for continuously varying the brightness of the light source. This permits the surgeon to optimally adapt the light intensity at the patient's eye to the conditions existing in each case.
  • Page 20 This problem has been solved by ZEISS by the use of a retinal protection device that can be swung into the microscope's illumination beam path and a blue barrier filter (retina protection filter).
  • Page 21 S88 / OPMI Lumera T Safety measures – Spectral distribution of the light (UV and blue are more dangerous than longer wavelengths). – Duration of direct exposure. – Pupil size. – Clarity of ocular media (infants and young children, for example, may be at a higher risk).
  • Page 22 Safety measures S88 / OPMI Lumera T • Turn off the microscope illumination system or cover the patient’s eye during pauses in surgery. Maximum radiation exposure The use of the blue barrier filter (retina protection filter)increases the recommended exposure time by a factor of 5 compared with the values specified below.
  • Page 23 S88 / OPMI Lumera T Safety measures List of references H. Stiller, and B. Rassow, "Light hazards to the patient's retina from ophthalmic instruments," Applied Optics-OT 30, 2187-2196 (1991). American Conference of Governmental Industrial Hygienists, "Documentation of the Threshold Limit Values for physical agents. 7th Edition,"...

  • Page 24: Stand Safety Equipment

    Safety measures S88 / OPMI Lumera T Stand safety equipment 1 Release bar allows non-sterile persons to unlock the magnetic brakes of the suspension system. 2 Adjustment screw for limiting downward travel serves to set the minimum working distance from the surgical field in the vertical direction.
  • Page 25 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 25...
  • Page 26 Safety measures S88 / OPMI Lumera T Halogen light source 1 Flap The flap is used as the mechanical indicator for the operating status of the halogen lamps. – When the flap is closed, the main lamp is operative. –...
  • Page 27 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 27...
  • Page 28 Safety measures S88 / OPMI Lumera T Superlux Eye light source CAUTION The xenon lamp has a limited service life of 500 h! If used beyond its maximum service life, the xenon lamp may explode. • Please replace the xenon lamp in due time.
  • Page 29 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 29...
  • Page 30 Safety measures S88 / OPMI Lumera T 2 Filter selector The filter selector has the following positions, depending on the light source used: No filter Blue barrier filter (retina protection filter): HaMode filter (standard) 485 nm fluorescence excitation filter (option) 3 Indicator: backup lamp is in use When the segment in knob (1) lights up, the backup lamp is in use.
  • Page 31 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 31...
  • Page 32 Safety measures S88 / OPMI Lumera T Superlux Eye light source with integrated halogen light source (option) CAUTION The xenon lamp has a limited service life of 500 h! If used beyond its maximum service life, the xenon lamp may explode.
  • Page 33 S88 / OPMI Lumera T Safety measures – blinks when the backup lamp has failed. 5 Manual mode When the manual mode has been activated, all electrical control systems are disabled. The lamp brightness is automatically adjusted to a fixed setting.
  • Page 34 Safety measures S88 / OPMI Lumera T Manual mode 1 MANUAL key The Manual button permits you to switch to manual mode. The motorized functions of the surgical microscope are deactivated. The lamp brightness is automatically adjusted to a default setting. This lamp brightness value is displayed in the first display field.
  • Page 35 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 35...

  • Page 36: Symbols And Labels On The Device

    If you notice that any label is missing on your device or has become illegible, please contact us or one of our authorized representatives. We will provide you with replacements. Labels on the microscope 1 "OPMI Lumera T" device label The device label contains the following information: – Manufacturer (company name) –...
  • Page 37 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 37...
  • Page 38 The indicating label contains the following information: – Manufacturer – Device name (company name) – Focal length – information label 11 "OPMI Lumera T with assistant's microscope" label The device label contains the following information: – Manufacturer – Order no. (company name) – Device name –...
  • Page 39 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 39...
  • Page 40 Safety measures S88 / OPMI Lumera T 12 "Friction adjustment of tilt" label This sign identifies the rotary knob for the friction adjustment of the tilt position. 13 "Focusing" label This label identifies the button for fine adjustment of focusing on the assistant's microscope.
  • Page 41 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 41...

  • Page 42: Labels On S88 Floor Stand

    Safety measures S88 / OPMI Lumera T Labels on S88 floor stand 1 "Maximum load" warning label The maximum load (accessory equipment) on the microscope body must not exceed 20 kg! 2 "Risk of crushing" warning label Fingers may be crushed. Do not touch this area while moving the surgical microscope or parts of it.
  • Page 43 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 43...
  • Page 44 Safety measures S88 / OPMI Lumera T 9 SIP label The SIP label contains the following information: – Manufacturer (company name) – Manufacturer's contact details, i.e. phone number, fax number and email address of the local contact for the national ZEISS sales organization.
  • Page 45 S88 / OPMI Lumera T Safety measures 12 Comply with disposal regulations. Do not dispose of electrical or electronic devices along with normal domestic waste. For more information on the disposal of electrical and electronic devices, please see the chapter "Maintenance and care".

  • Page 46: Labels On The Connector Panel Of The S88 Floor Stand

    Safety measures S88 / OPMI Lumera T Labels on the connector panel of the S88 floor stand 1 Symbol for signal input and output Identification mark of the remote connection 2 Indication of the maximum switching capacity max. 24V / 0.5A Only devices with a maximum switching capacity of 24V/0.5A may be...
  • Page 47 S88 / OPMI Lumera T Safety measures Optional Version 8.0 G-30-1682-en Page 47...

  • Page 48: Additional Label On The S88 Floor Stand (Instrument Tray Option)

    Safety measures S88 / OPMI Lumera T Additional label on the S88 floor stand (Instrument tray option) 1 "Maximum load on instrument tray" indicating label The maximum load of accessories on the instrument tray must not exceed 13 kg. Version 8.0...
  • Page 49 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 49...

  • Page 50: Labels On The Light Sources Of The Suspension Systems

    Safety measures S88 / OPMI Lumera T Labels on the light sources of the suspension systems 1 Lamp housing label Superlux Eye Lamp housing: Superlux Eye with lamp module with integrated filters. Future 2 "Manual switching to backup lamp" indicating label These numerical symbols refer to switching from the standard lamp to the backup lamp.
  • Page 51 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 51...

  • Page 52: Labels On The Control Panel Of The Suspension Systems

    Safety measures S88 / OPMI Lumera T Labels on the control panel of the suspension systems 1 "Light source 1" label 2 "Key" label Every time you press the "∇" key, the displayed value is decremented in predefined steps down to a certain minimum.
  • Page 53 S88 / OPMI Lumera T Safety measures Version 8.0 G-30-1682-en Page 53...
  • Page 54 Safety measures S88 / OPMI Lumera T Version 8.0 Page 54 G-30-1682-en...
  • Page 55 Description of components ..............107 Set-up ....................108 Stand base with column .................110 Connector panel ..................112 Instrument tray (option) ................114 Video monitor (optional) .................116 OPMI Lumera T with integrated assistant's microscope on the S88 floor stand ..............124 Properties ....................124 Set-up ....................124 Version 8.0 G-30-1682-en...
  • Page 56 Device overview S88 / OPMI Lumera T Foot control panel ................126 EDIS - External Data Injection System (optional) ......128 1Chip HD camera (option) .............129 Version 8.0 Page 56 G-30-1682-en...

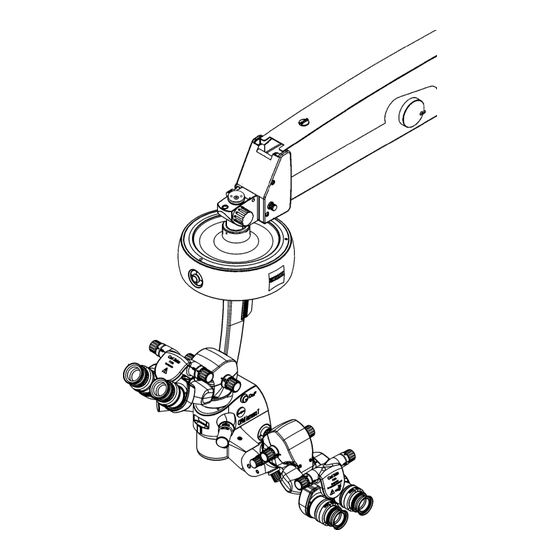

  • Page 57: Lumera T Surgical Microscope

    As an option, the surgical microscope Lumera T can be ordered without the assistant's microscope (2). These instructions for use describe the standard version of the OPMI Lumera T for their most part. If the assistant's microscope is absent, the respective descriptions do not apply.

  • Page 58: Description Of Components

    Device overview S88 / OPMI Lumera T Description of components The Lumera T surgical microscope comprises the following components: 1 X-Y coupling The X-Y coupling allows motorized fine positioning of the surgical microscope in a horizontal plane. The adjustment range is 40 mm x 40 mm.
  • Page 59 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 59...
  • Page 60 Device overview S88 / OPMI Lumera T 2 Support arm for the surgical microscope The carrier arm incorporates a tilt device (3). This allows the viewing direction of the surgical microscope to be adapted to the requirements of the surgical field. Using the fine tilting knob, the surgical microscope can be positioned in a range from + 90°...
  • Page 61 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 61...
  • Page 62 9 Integrated assistant's microscope The integrated assistant's microscope comes as an integral part of the OPMI Lumera T standard version. The assistant sees the same image as the main surgeon in the same image quality. The assistant's microscope has two working positions. These positions are to the left and right of the main surgeon and at a 90°...
  • Page 63 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 63...

  • Page 64: Illumination System

    Device overview S88 / OPMI Lumera T Illumination system The illumination system of the Lumera T surgical microscope contains a UV blocking filter as a standard feature. This helps the surgeon to reduce the risk of phototoxic retinal injury in the patient.
  • Page 65 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 65...
  • Page 66 Device overview S88 / OPMI Lumera T Illumination settings The type of illumination required can be selected using knob (1) on the surgical microscope: – Position 1 - Red reflex illumination This is the best setting to generate an optimum red reflex. Glare from the sclera is greatly reduced as only the central field of view is illuminated.
  • Page 67 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 67...

  • Page 68: Control Elements, Displays, Connections

    Device overview S88 / OPMI Lumera T Control elements, Displays, Connections 1 Securing screw – prevents the coupling on the suspension arm from coming loose. 2 X-Y coupling 3 RESET button – recenters the X-Y coupling – resets the focus to its initial position in the focusing range Press this button to start the recentering movement.
  • Page 69 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 69...
  • Page 70 Device overview S88 / OPMI Lumera T 8 Dust cover 9 Switch for unlocking the magnetic brakes of the suspension system 10 Clamp for asepsis caps 11 Handgrips for positioning the surgical microscope With asepsis caps attached, the handgrips are used to position the microscope and unlock the magnetic brakes.
  • Page 71 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 71...
  • Page 72 Device overview S88 / OPMI Lumera T 14 DeepView button (depth of field (DoF) management system) Allows you to optimize the light transmission or depth of field, depending on the application involved. When deactivated (LED not lit), the microscope is optimized for light transmission. When this function is activated (green LED is lit), the microscope is automatically set to optimized depth of field in accordance with the selected magnification.
  • Page 73 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 73...
  • Page 74 Device overview S88 / OPMI Lumera T The integrated assistant's microscope comprises the following components: 18 Clamping screw for locking the tube within the 12° range of rotation. After adjusting the microscope as required, secure the tube in its position using the clamping screw.
  • Page 75 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 75...

  • Page 76: Binocular Tubes And Eyepieces

    Device overview S88 / OPMI Lumera T Binocular tubes and eyepieces You can mount a 180° tiltable tube, an Invertertube or a 45° inclined tube on the Lumera T surgical microscope as required (see the following pages). 180° tiltable tube...
  • Page 77 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 77...
  • Page 78 Device overview S88 / OPMI Lumera T Invertertube The tiltable tube has an inverter function and has been designed for ophthalmic use. Many wide-angle observation systems for the posterior segment of the eye provide an inverted intermediate image which is viewed through the surgical microscope.
  • Page 79 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 79...
  • Page 80 Device overview S88 / OPMI Lumera T Widefield eyepieces with magnetic coupling NOTE Eyepieces have a magnetic field! Please keep in mind the usual rules for the handling of magnets with regard to eyepieces that have been removed from the tube: •...
  • Page 81 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 81...

  • Page 82: Light Sources

    When using the Superlux Eye light source, only operate the system with special xenon lamps approved by ZEISS for ophthalmic surgery. If any lamps other than ZEISS-approved xenon lamps are used, there is the risk of severe injury to the patient's eye.
  • Page 83 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 83...

  • Page 84: Halogen Light Source (Option)

    Device overview S88 / OPMI Lumera T Halogen light source (option) The suspension system is equipped with a light source for fiber illumination. The lamp housing contains a backup lamp which automatically swings into position when the first lamp fails. If required, the light source can be equipped with a second lamp housing so that two separate light sources are available for fiber illumination.
  • Page 85 S88 / OPMI Lumera T Device overview Empty filter position Version 8.0 G-30-1682-en Page 85...
  • Page 86 Adjust the illumination intensity as required for the light source used and the radiation exposure time. You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. If the suspension system has two lamp housings, you can also adjust the brightness of lamp 1 by pressing the appropriate button(s) on the foot control panel.
  • Page 87 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 87...

  • Page 88: Superlux Eye Light Source

    Device overview S88 / OPMI Lumera T Superlux Eye light source CAUTION The xenon lamp has a limited service life of 500 h! If used beyond its maximum service life, the xenon lamp may explode. • Please replace the xenon lamp in due time.
  • Page 89 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 89...
  • Page 90 Device overview S88 / OPMI Lumera T 1 Lamp module 2 Manual switching to the backup lamp • If the xenon lamp fails, open the lamp module as follows: • Press the button (7). The lamp module will eject partially.
  • Page 91 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 91...
  • Page 92 Device overview S88 / OPMI Lumera T 5 Counter The counter records the service hours of the xenon lamp in the Superlux Eye light source. • Change the xenon lamps after a maximum operating time of 500 hours to avoid any rupture of the xenon lamps. Then reset the counter to "0" by pressing the "Reset"...
  • Page 93 S88 / OPMI Lumera T Device overview 5 6 7 Version 8.0 G-30-1682-en Page 93...
  • Page 94 Adjust the illumination intensity as required for the light source used and the radiation exposure time. You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. 9 Indicator lamp (color: amber) is lit when the lamp has failed, or if the lamp module is defective.
  • Page 95 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 95...

  • Page 96: Superlux Eye With Integrated Halogen Light Source (Option)

    Device overview S88 / OPMI Lumera T Superlux Eye with integrated halogen light source (option) CAUTION The xenon lamp has a limited service life of 500 h! If used beyond its maximum service life, the xenon lamp may explode. •...
  • Page 97 S88 / OPMI Lumera T Device overview 4 Opening the Superlux Eye lamp module When you press this button, the slide-in lamp module is partially ejected. To change the lamp, pull out the lamp module as far as it will go. Turn the knob (5) through 180°...
  • Page 98 Device overview S88 / OPMI Lumera T 6 Flap The flap is used as the mechanical indicator for the operating status of the halogen lamps. – When the flap is closed, the main lamp is operative. – When the flap is open, the main lamp has failed. The backup lamp is on.
  • Page 99 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 99...
  • Page 100 Device overview S88 / OPMI Lumera T 14 Indicator lamp (color: amber) – is lit when the main lamp has failed. The backup lamp is on. – blinks when the backup lamp has failed. 15 Indicator lamp (color: green) is lit when the relevant light source has been switched on.
  • Page 101 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 101...

  • Page 102: Identical Components Of The Suspension Systems

    Device overview S88 / OPMI Lumera T Identical components of the suspension systems Suspension arm 1 Lock of the cable duct – For opening, turn a quarter turn clockwise or counterclockwise. – For closing, press down and turn a quarter turn clockwise or counterclockwise.
  • Page 103 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 103...

  • Page 104: Display And Control Panel

    Device overview S88 / OPMI Lumera T Display and control panel The display and control panel is integrated in the control unit. Basic mode The surgical microscope on the suspension system can be controlled either Halogen manually or electronically. The control software required for electronic control is installed in the electronics box of the suspension system.
  • Page 105 S88 / OPMI Lumera T Device overview Key row Three keys and an LED are provided below the display fields. Use the "MODE", "STORE" and "MANUAL" keys to select the different control functions (modes). "MODE" key and "STORE" key The "MODE" and "STORE" keys permit you to access the different modes of the user interface.

  • Page 106: Floor Stand S88

    Floor stand S88 Properties The floor stand is a suspension system for ZEISS surgical microscopes. It is used to power and control the motorized functions of the surgical microscope. The hallmarks of the floor stand are its superb mobility and easy operation.

  • Page 107: Description Of Components

    S88 / OPMI Lumera T Device overview Description of components The S88 floor stand comprises the articulated arm, the stand column and the stand base. The articulated arm comprises a carrier arm and a suspension arm. The carrier arm contains the control panel with all electrical supply systems required for the control of a motorized surgical microscope.

  • Page 108: Set-Up

    Device overview S88 / OPMI Lumera T Set-up 1 Control unit 2 Support arm 3 Light source, see page 82 4 Suspension arm 5 Stand base Version 8.0 Page 108 G-30-1682-en...
  • Page 109 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 109...

  • Page 110: Stand Base With Column

    Device overview S88 / OPMI Lumera T Stand base with column 1 Handgrip for moving the floor stand. 2 Mount for hanging up the foot control panel during transport. 3 Cable support (2x) for winding up the power cord and the cable of the foot control panel.
  • Page 111 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 111...

  • Page 112: Connector Panel

    A second remote socket is necessary for the electrical communication between an ocular fundus image system (for example RESIGHT 700) and the OPMI Lumera T; this second remote socket is included in the "Accessory Connection Retrofit Kit". Depending on the details of the order, the OPMI Lumera T is already equipped with the "Accessory...
  • Page 113 S88 / OPMI Lumera T Device overview 6 Power output socket for medical devices with the following power consumption: In 115 V: max. 400 VA In 230 V: max. 800 VA 7 Power inlet socket 8 Power switch S2 For switching the system on and off. When the system has been switched on, the green lamp in the switch is lit.

  • Page 114: Instrument Tray (Option)

    The instrument tray (1) can carry a maximum of 13 kg. It is designed to accommodate ZEISS devices such as the MediLive™ Trio Eye. CAUTION Risk of injury caused by accessories falling down! •...
  • Page 115 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 115...

  • Page 116: Video Monitor (Optional)

    Do not use video images for diagnostic purposes as the video camera is not calibrated for these purposes. The LCD display's backlight has a limited lifespan. If the screen becomes darker, or begins to flicker, contact your local ZEISS dealer. Signs on the monitor support arm •...
  • Page 117 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 117...
  • Page 118 Device overview S88 / OPMI Lumera T Components The principal component of the TFT monitor is the 15" screen which delivers flawless, sharp images even at low frame rates of 50 Hz. The connectors and controls are located under cable cover (2) on the back of the TFT monitor.
  • Page 119 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 119...
  • Page 120 Device overview S88 / OPMI Lumera T Connector panel CAUTION Risk of injury from incorrect auxiliary equipment! • Operate the device only with the power cable included in the delivery package! 2 Power supply for power and voltage supply of the device.
  • Page 121 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 121...
  • Page 122 Device overview S88 / OPMI Lumera T Powering on the TFT monitor To facilitate the operation of the TFT monitor, it is automatically activated when the suspension system is switched on. While the system is booted up, the TFT monitor executes a power-on sequence that verifies the signals of all ports (DVI, VGA, S-Video, Composite and Component).
  • Page 123 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 123...

  • Page 124: Opmi Lumera T With Integrated Assistant's Microscope On The S88 Floor Stand

    OPMI Lumera T with integrated assistant's microscope on the S88 floor stand Properties OPMI Lumera T has been designed for the magnified visualization of the field of view during surgical procedures in ophthalmology. The system is intended for use in offices, hospitals or other human medicine institutions.
  • Page 125 S88 / OPMI Lumera T Device overview Version 8.0 G-30-1682-en Page 125...
  • Page 126 Device overview S88 / OPMI Lumera T Foot control panel The foot control panel permits you to control various functions of the suspension system and surgical microscope. The assignment of the functions to the buttons on the foot control panel is shown on the following page.
  • Page 127 Joystick K is used to control the XY coupling. Rocker switches The default settings (focus/zoom) of the rocker switches are pre-configured horizontally or vertically for each country. However, ZEISS Service can change the settings at any time. The horizontal factory settings are: –...
  • Page 128 – TIOL data (angle, target axis) – Video recording (On/Off) – Assistant functions (Incision/LRI, Rhexis, ZALIGN) You will find additional explanations on EDIS in the ZEISS Instructions for Use "EDIS, External Data Injection System" G-30-1913. Components 1 EDIS module (projection unit with integrated data injection and HD camera)
  • Page 129 S88 / OPMI Lumera T Device overview 1Chip HD camera (option) 1 1Chip HD camera (option) flanged to a beam splitter 2 CCU (Camera Control Unit) Control unit for the 1Chip HD camera Version 8.0 G-30-1682-en Page 129...
  • Page 130 Device overview S88 / OPMI Lumera T Version 8.0 Page 130 G-30-1682-en...
  • Page 131 S88 / OPMI Lumera T Preparations for use Preparations for use Attaching the equipment ..............132 Tube, eyepieces and objective lens, mounting ........132 Microscope accessories, changing ............136 Connections, establishing ............. 138 Surgical microscope, connecting .............138 Connect the light guide................140 Strain relief device on S88 floor stand .............144 S88 floor stand, connection ..............146...

  • Page 132: Attaching The Equipment

    S88 / OPMI Lumera T Attaching the equipment The OPMI Lumera T with the XY coupling is permanently mounted on the suspension arm, i.e. it is not intended that the user should remove the OPMI Lumera T including the XY coupling from the suspension system. If required, ZEISS Service can undertake work in this region.
  • Page 133 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 133...
  • Page 134 Preparations for use S88 / OPMI Lumera T • Place the assistant's Invertertube (13) or 45° inclined tube (11) on the inte- grated assistant's microscope and firmly tighten the securing screw (8). • You can install further accessories between the assistant's Invertertube (13) or 45°...
  • Page 135 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 135...

  • Page 136: Microscope Accessories, Changing

    Preparations for use S88 / OPMI Lumera T Microscope accessories, changing You can change the microscope accessories in reverse order to that described before. NOTE Risk of injury! The swivel arm may move downward when auxiliary equipment is changed. •...
  • Page 137 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 137...

  • Page 138: Connections, Establishing

    CAUTION Danger! Electrical voltage! • Only connect accessories and medical devices designated by ZEISS for use with this system to the power outlet sockets on the suspension system's connector panel (see "System extension"). When connecting other devices, the operator must ensure that safety is guaranteed with regard to permissible touch and earth leakage currents in accordance with IEC 60601-1.
  • Page 139 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 139...

  • Page 140: Connect The Light Guide

    Preparations for use S88 / OPMI Lumera T Connect the light guide. CAUTION Risk of phototoxic injury to the patient's eye. • Only operate the VISULUX fiber slit lamp with the Superlux Eye light source if the light guide sleeve contains a UV filter. You can recognize an...
  • Page 141 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 141...
  • Page 142 Preparations for use S88 / OPMI Lumera T CAUTION Risk of injury caused by open second light guide! It may happen that no second lamp module such as the VISULUX™ fiber slit lamp is used on the microscope. The respective light guide (3) may drop on the patient, causing injury due to its phototoxic effect and burns due to the emitted radiant heat.
  • Page 143 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 143...

  • Page 144: Strain Relief Device On S88 Floor Stand

    Preparations for use S88 / OPMI Lumera T Strain relief device on S88 floor stand Use the strain relief device to prevent the connected cables from being pulled out inadvertently. • Form a loop with the cable (2). • Open flap (3).
  • Page 145 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 145...

  • Page 146: S88 Floor Stand, Connection

    Preparations for use S88 / OPMI Lumera T S88 floor stand, connection NOTE Tripping hazards! Incorrectly positioned cables can become tripping hazards on the floor. • Always route cables in a manner such that they do not obstruct your work.
  • Page 147 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 147...

  • Page 148: 1Chip Hd Camera Option

    Preparations for use S88 / OPMI Lumera T 1Chip HD camera option Installing the 1Chip HD camera Please observe the "1Chip HD camera" Instructions for Use (G-30-1946). These Instructions for Use are included automatically in systems with the "1Chip HD camera" option. They contain all the additional explanations for the "1Chip HD camera"...

  • Page 149: Cable Connections For The 1Chip Hd Camera

    S88 / OPMI Lumera T Preparations for use Cable connections for the 1Chip HD camera CAUTION Risk of electric shock caused by unapproved or defective accessories! Unapproved or defective accessories can cause increased leakage current. The user and patient may suffer an electric shock if the signal interfaces or R506 video outputs are touched.

  • Page 150: Relocating The Unit

    Preparations for use S88 / OPMI Lumera T Relocating the unit CAUTION Risk of crushing - mind your fingers! Fingers may be crushed in the areas marked with the "Risk of crushing" label. • Do not touch these areas while the system is being moved or brought in its working / transport position.
  • Page 151 The system may be transported over long distances (e.g. during relocation, return for repair, etc.) only in its original packaging or in special return packaging. • Please contact your dealer or ZEISS Service for this purpose. Version 8.0 G-30-1682-en Page 151...

  • Page 152: Configuring The Stand

    Preparations for use S88 / OPMI Lumera T Configuring the stand Setting the suspension arm weight compensation CAUTION Risk of crushing - mind your fingers! Fingers may be crushed in the areas marked with the "Risk of crushing" label. •...
  • Page 153 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 153...

  • Page 154: Adjusting The Downward Travel Limit

    Preparations for use S88 / OPMI Lumera T Adjusting the downward travel limit CAUTION Risk of injury caused by lowering of the surgical microscope! • Do not adjust the suspension arm when it is positioned above the patient. • Limit the stroke of the suspension arm to prevent any contact with the patient should the surgical microscope be lowered accidentally.
  • Page 155 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 155...

  • Page 156: Settings On The Control And Display Panel

    • Adjust the light intensity to the illumination setting and the exposure time. You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. • Set the values required for –...

  • Page 157: Optimizing The Red Reflex

    S88 / OPMI Lumera T Preparations for use Optimizing the red reflex Optimization on the OPMI For optimum visualization of the red reflex on the OPMI, please check that: • the objective lenses are free from contamination, • the light guide is undamaged and correctly connected, •...

  • Page 158: Tilt Adjustment Motion

    Preparations for use S88 / OPMI Lumera T Tilt adjustment motion CAUTION Risk of injury when tilting the surgical microscope! If you have mounted the RESIGHT fundus viewing system on the underside of the microscope and steeply tilt the microscope, the RESIGHT fundus viewing system may unintentionally move in and injure the patient.
  • Page 159 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 159...

  • Page 160: Adjusting The Surgical Microscope

    Preparations for use S88 / OPMI Lumera T Adjusting the surgical microscope Notes on adjustment – To permit fast setup of the microscope, it is advisable to store the pupillary distances and prescriptions of the different users so that they can be easily preset during system preparation.
  • Page 161 S88 / OPMI Lumera T Preparations for use The microscope is now adjusted so that a constantly sharp image is produced throughout the entire magnification range without your having to refocus after changing the magnification value. If this is not the case, repeat the procedure.

  • Page 162: Preparing The Device For Sterile Use

    Fit asepsis caps The device can be equipped with resterilizable products for sterile use. The included ZEISS Asepsis Sets contain Asepsis Caps and handles which can be sterilized in autoclaves. For more detailed information about sterilization, please refer to the enclosed "Preparation of resterilizable products" manual for each Asepsis Set.
  • Page 163 S88 / OPMI Lumera T Preparations for use Version 8.0 G-30-1682-en Page 163...

  • Page 164: Attaching The Drapes

    Preparations for use S88 / OPMI Lumera T Attaching the drapes You can also use disposable sterile drapes to cover the system. When draping the system, make sure there is enough slack in the drapes to allow for movement of the microscope carrier and surgical microscope.
  • Page 165 S88 / OPMI Lumera T Operation Operation Function test before use ...............166 Checking the suspension system .............167 Check monitor arm (option) ..............169 Check foot control panel ................169 When using a fundus viewing system (e.g. RESIGHT) ......170 Positioning the S88 floor stand ............172 Display and control panel handling ..........174...

  • Page 166: Function Test Before Use

    Operation S88 / OPMI Lumera T Function test before use CAUTION Risk of injury! Incorrect configuration settings may lead to unexpected behavior of the device and may cause injury to the patient. • Always check the settings of the selected user profile before using the system.

  • Page 167: Checking The Suspension System

    S88 / OPMI Lumera T Operation Eyepieces / binocular tube Check that the surgical microscope and the tube are in a position convenient for you. Check that the correct interocular distance has been set. Check that the eyecups have been adjusted in such a way that you can see the full field of view.
  • Page 168 Operation S88 / OPMI Lumera T Halogen light source The halogen light source is on and the green indicator lamp is lit. The halogen lamps including the backup lamps are intact, i.e. the indicator lamp (color: amber) is not lit.

  • Page 169: Check Monitor Arm (Option)

    S88 / OPMI Lumera T Operation Checking accessories • Using their respective Instructions for Use, check all other pieces of the device equipment (surgical microscope, co-observation equipment, video system, etc.) to make sure they are functioning properly. Check monitor arm (option)

  • Page 170: When Using A Fundus Viewing System (E.g. Resight)

    • When using a fundus viewing system (e.g. RESIGHT 500 or RESIGHT 700 by ZEISS), which is usually placed between the surgical microscope and the patient, make sure that the patient is neither put at risk nor injured by the motorized focusing system or the movement of the suspension system arm.
  • Page 171 S88 / OPMI Lumera T Operation Version 8.0 G-30-1682-en Page 171...

  • Page 172: Positioning The S88 Floor Stand

    Operation S88 / OPMI Lumera T Positioning the S88 floor stand Please also read the chapter: "Relocating the instrument" (See page 150). • Unlock the activated locking tabs (2). NOTE Unintentional movement of the system! • Position the suspension system in such a way that you can slide it away from the patient at any time.
  • Page 173 S88 / OPMI Lumera T Operation Version 8.0 G-30-1682-en Page 173...

  • Page 174: Display And Control Panel Handling

    Operation S88 / OPMI Lumera T Display and control panel handling General functions Basic mode Operating keys "∇" and "Δ" Halogen The keys "∇" and "Δ" are always assigned to the display field on their left. Every time you press the "∇" key, the displayed value is decremented in predefined steps down to a certain minimum.
  • Page 175 S88 / OPMI Lumera T Operation "MANUAL" key The "MANUAL" button permits you to switch to manual operation. The motorized functions of the surgical microscope are deactivated. The lamp brightness is automatically adjusted to a default setting. This lamp brightness value is displayed in the first display field.
  • Page 176 Operation S88 / OPMI Lumera T Basic mode Basic mode The basic mode is always displayed in the normal operating status. Halogen In the basic mode, the following settings are displayed, depending on the installed surgical microscope: In the upper display field...
  • Page 177 S88 / OPMI Lumera T Operation (option), the lamps are numbered as follows: Lamp 1: xenon Lamp 2: halogen Acoustic signals Three successive – Error message during the software check after beeps power-on of the suspension system. – Error message for an internal system error.

  • Page 178: Operating The Opmi® On The Suspension System

    Operation S88 / OPMI Lumera T ® Operating the OPMI on the suspension system ® Overview: user interface for the OPMI Basic mode Basic mode Speed mode FOCUS SPEED: USER Configuration ZOOM SPEED: mode 1 STORE MANUAL MODE SPEED: FOOT...
  • Page 179 S88 / OPMI Lumera T Operation ® Control functions for the OPMI ® The control functions for the OPMI have been combined in 4 modes: Basic mode Speed mode – Setting the lamp brightness – Setting the speed for focusing –...
  • Page 180 • Adjust the light intensity to the illumination setting and the exposure time. You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. Signal tones on the Superlux Eye light source –...
  • Page 181 S88 / OPMI Lumera T Operation Saving the settings As soon as you have made a setting, the setting is accepted and saved under Speed mode the current user number. Exception: the brightness setting cannot be saved. It is reset to level 0.5 at the next restart of the system.
  • Page 182 Operation S88 / OPMI Lumera T If you have already set a high adjustment speed for focusing and the X-Y coupling here in the speed mode, dynamic speed control may possibly not be effective across the entire zoom range, as the maximum adjustment speed is reached beforehand.
  • Page 183 S88 / OPMI Lumera T Operation Assigning functions to buttons C and D of the foot control panel Buttons C and D of the foot control panel can be configured as required. In configuration mode 1, the upper and middle display fields enable you to...
  • Page 184 Operation S88 / OPMI Lumera T Roll-over procedure Use the "Roll-over procedure" to select the required function in the default sequence of the above table. Every time you press the relevant button "∇" you move clockwise Every time you press the relevant button "Δ" you move counterclockwise.
  • Page 185 S88 / OPMI Lumera T Operation The optical system of the Stereo Diagonal Inverter (SDI) 2E from Oculus is moved into and out of the beam path of the surgical microscope. Movement control of the VISULUX™ fiber slit illuminator. FOC-MEM Press the appropriately configured button for more than 2 seconds to save a new focus position.
  • Page 186 Operation S88 / OPMI Lumera T Setting the adjustment speeds of focus and X-Y coupling as a function of the zoom setting Configuration Dynamic speed control can be set here for focus and XY coupling. mode 1 The depth of field of the optical system changes according to the zoom setting: –...
  • Page 187 S88 / OPMI Lumera T Operation Path: Every time you switch on the system, the basic mode is automatically displayed. To get from basic mode to configuration mode 1, press the "MODE" and "STORE" buttons simultaneously. Roll-over procedure Use the "Roll-over procedure" to select the required function in the default sequence of the above table.
  • Page 188 Operation S88 / OPMI Lumera T Selecting the magnetic brakes to be unlocked You can define which magnetic brakes of the suspension system are to be unlocked by turning the left and/or right handgrips (1) and (2) (turning function). In configuration mode 2, the upper display and key field (SELECT BRAKES)
  • Page 189 S88 / OPMI Lumera T Operation CAUTION Modification of user settings! • Be extremely careful when changing the settings. Make any changes only under your own user ID. Inform all other users about these changes, or make sure that all users only work under their own respective user ID.

  • Page 190: Operating Procedure

    • Adjust the light intensity to the illumination setting and the exposure time. You'll find the values recommended by ZEISS in the table "Maximum radiation exposure times" on page 22. • Use the retina protection filter (blue barrier filter). It protects the patient's retina against unnecessary (blue) radiation and increases the recommended exposure time by factor 3.
  • Page 191 S88 / OPMI Lumera T Operation CAUTION Risk of injury! Long radiation exposure times while the device is unattended may lead to retinal damage in the patient's eye. • Never leave a device unattended with the light source still switched on.
  • Page 192 Operation S88 / OPMI Lumera T Version 8.0 Page 192 G-30-1682-en...
  • Page 193 S88 / OPMI Lumera T What to do in the event of malfunctions What to do in the event of malfunctions Failure of main functions ..............194 Lamp failure of the halogen light source ..........194 Lamp failure in the Superlux Eye light source ..........196 Failure of lamp control system ..............200...

  • Page 194: Failure Of Main Functions

    What to do in the event of malfunctions S88 / OPMI Lumera T Failure of main functions NOTE Failure of primary functions! In the event that one of the major functions fails (XY movement, focus, zoom, light control), leading to the impairment of further functions, you can switch to the manual mode to complete an already started surgical procedure.
  • Page 195 S88 / OPMI Lumera T What to do in the event of malfunctions Version 8.0 G-30-1682-en Page 195...

  • Page 196: Lamp Failure In The Superlux Eye Light Source

    What to do in the event of malfunctions S88 / OPMI Lumera T Lamp failure in the Superlux Eye light source CAUTION Risk of injury caused by lamp rupture! Lamp rupture (audible as a loud bang) may lead to jamming of the lamp module and/or failure of the electronics modules.
  • Page 197 S88 / OPMI Lumera T What to do in the event of malfunctions Version 8.0 G-30-1682-en Page 197...
  • Page 198 What to do in the event of malfunctions S88 / OPMI Lumera T Switching to the backup lamp • Turn off the suspension system at the power switch before switching to the backup lamp. The lamp module contains two xenon lamps. The second lamp is used as a backup lamp which can be swung into the illumination beam path when the first lamp fails.
  • Page 199 S88 / OPMI Lumera T What to do in the event of malfunctions Version 8.0 G-30-1682-en Page 199...

  • Page 200: Failure Of Lamp Control System

    What to do in the event of malfunctions S88 / OPMI Lumera T Failure of lamp control system In the event that the lamps can no longer be controlled via the control panel, adjust the brightness manually at the suspension system.
  • Page 201 S88 / OPMI Lumera T What to do in the event of malfunctions Version 8.0 G-30-1682-en Page 201...

  • Page 202: Failure Of Magnetic Brakes

    What to do in the event of malfunctions S88 / OPMI Lumera T Failure of magnetic brakes In the event of magnetic brake failure (magnetic brakes are closed), you can manually position the articulated arm with the microscope by overriding the locking effect of the brakes.

  • Page 203: Failure Of The Zoom Function

    S88 / OPMI Lumera T What to do in the event of malfunctions Failure of the zoom function Failure of the zoom function In the event that the zoom function can no longer be controlled via the foot control panel, adjust the zoom factor manually at the microscope.

  • Page 204: Causes Of Malfunctions And Remedies

    What to do in the event of malfunctions S88 / OPMI Lumera T Causes of malfunctions and remedies For your safety This instrument is a high-grade technological product. To ensure optimum performance and safe working order, we recommend having it checked by our service representative as part of regular scheduled maintenance.
  • Page 205 S88 / OPMI Lumera T What to do in the event of malfunctions Fault Possible reason Remedy Cross reference Motorized focusing and Manual mode is activated. Switch off manual mode. zoom functions of surgical (LED above the button is lit.) microscope are inoperative.

  • Page 206: Malfunctions In The Video Monitor

    What to do in the event of malfunctions S88 / OPMI Lumera T Malfunctions in the video monitor Fault Possible reason Corrective measure Cross reference No image display. Main switch is switched off. Switch the main switch on. Power cable not correctly Plug in the power cable.

  • Page 207: Malfunctions In The Halogen Light Source

    S88 / OPMI Lumera T What to do in the event of malfunctions Malfunctions in the halogen light source Fault Possible reason Remedy Cross reference Surgical field illumination on Thermal cut-out activated. Remove the cause of microscope not working. overheating. For example, drapes could be covering the screen.
  • Page 208 What to do in the event of malfunctions S88 / OPMI Lumera T Fault Possible reason Remedy Cross reference Indicator lamp (color: amber) Defective main and backup Change lamp or insert Page 218 in display field blinks. lamps. backup lamp module.

  • Page 209: Malfunctions In Superlux Eye Light Source

    S88 / OPMI Lumera T What to do in the event of malfunctions Malfunctions in Superlux Eye light source Fault Possible reason Remedy Cross reference Surgical field illumination on Thermal cut-out activated. Remove the cause of microscope not working. overheating. For example, drapes could be covering the screen.
  • Page 210 What to do in the event of malfunctions S88 / OPMI Lumera T Fault Possible reason Remedy Cross reference Insufficient surgical field Brightness level set too low. Adjust brightness on illumination. suspension system's display field or using foot control panel.
  • Page 211 S88 / OPMI Lumera T Care and Maintenance Care and Maintenance Care of the device ................. 212 Cleaning ....................212 Sterilization ....................213 Disinfection ....................215 Device maintenance ..............216 Maintenance intervals ................216 Safety check ...................217 Changing the halogen lamp ..............218 Changing the Superlux Eye xenon lamp module ........220 Counterbalancing the monitor support arm ..........222...

  • Page 212: Care Of The Device

    To keep the objective lenses from fogging, we recommend using an anti-fogging agent. Anti-fogging agents provided by eyecare professionals for use with eyeglass lenses are also suitable for ZEISS objective lenses. • Observe the Instructions for Use pertaining to the anti-fogging agent concerned.

  • Page 213: Sterilization

    Asepsis Sets The included ZEISS Asepsis Sets contain Asepsis Caps and resterilizable handles which can be sterilized in an autoclave. For more detailed information about sterilization, please refer to the enclosed "Preparation of resterilizable products"...
  • Page 214 Care and Maintenance S88 / OPMI Lumera T • Do not cover the ventilation slots in order to ensure that the lamps are able to cool sufficiently and to avoid any loss in lamp functionality. • Loosely fasten the drape using the adhesive strips.

  • Page 215: Disinfection

    S88 / OPMI Lumera T Care and Maintenance Disinfection NOTE This could damage the paint on the device. • Use a disinfectant based on aldehyde or alcohol. The addition of quaternary compounds is acceptable. To avoid damaging the surfaces, do not use any disinfecting components other than those specified below.

  • Page 216: Device Maintenance

    All maintenance work requires specific technical expertise. It is frequently necessary to open the system for this work. Please contact your local ZEISS Service organization in due time for the performance of these maintenance activities. You will find the contact authorized for your country on the following website: www.meditec.zeiss.com...

  • Page 217: Safety Check

    S88 / OPMI Lumera T Care and Maintenance Safety check CAUTION Risk of injury! Cables and plug connections may come loose and parts of the housing may become live. • Make sure that the regular technical safety checks required for this system in accordance with the applicable national regulations are performed on schedule and to the stipulated extent.

  • Page 218: Changing The Halogen Lamp

    Care and Maintenance S88 / OPMI Lumera T Changing the halogen lamp "CAUTION" warning label Warning of a potential hazard • Follow the instructions to change the lamp. NOTE 10 Risk of burns caused by hot lamp! If you replace the lamp shortly after it has failed, the lamp will still be very hot.
  • Page 219 S88 / OPMI Lumera T Care and Maintenance To use the service life of your halogen lamps as economically as possible, we recommend that you proceed as follows: If main lamp (4) has failed, remove it and replace it by backup lamp (5). Install the new halogen lamp instead of the backup lamp.

  • Page 220: Changing The Superlux Eye Xenon Lamp Module

    Care and Maintenance S88 / OPMI Lumera T Changing the Superlux Eye xenon lamp module CAUTION Risk of injury caused by lamp rupture! Lamp rupture (audible as a loud bang) may lead to jamming of the lamp module and/or failure of the electronics modules.
  • Page 221 – Pack the old lamp module (5) in the transport packaging of the new lamp module. Fill in the enclosed return card and send the old lamp module to the nearest ZEISS service representative. – Use only the original transport packaging (2), as it also provides explosion protection should xenon lamps be defective.

  • Page 222: Counterbalancing The Monitor Support Arm

    If the suspension arm continues to move downward with the monitor attached, the gas spring is defective. • If this is the case, contact ZEISS Service. Adjusting monitor mobility • Tighten the fastening screw (7) on the monitor mount clockwise until the monitor remains in the desired position.
  • Page 223 S88 / OPMI Lumera T Care and Maintenance Fig. 2: Video monitor weight compensation Version 8.0 G-30-1682-en Page 223...

  • Page 224: Disposal

    Care and Maintenance S88 / OPMI Lumera T Disposal User information on the disposal of electrical and electronic devices This symbol means that electric and/or electronic products must not be disposed of as normal domestic waste. The correct disposal of electrical or...
  • Page 225 S88 / OPMI Lumera T Device data Device data Specifications ................226 Essential performance features S88 / OPMI Lumera T ......226 Lumera T surgical microscope with integrated assistant's microscope .....................227 Stands/mounts ..................230 Ordering data ................236 Compliance ................... 242 Environmental conditions ............. 243 Guidelines and manufacturer's declaration concerning electromagnetic compatibility ............

  • Page 226: Specifications

    S88 / OPMI Lumera T Specifications Essential performance features S88 / OPMI Lumera T S88 / OPMI Lumera T does not have any essential performance features as defined in IEC 60601-1. In lieu of testing the device's essential performance features, certain device functions defined by the manufacturer were tested.

  • Page 227: Lumera T Surgical Microscope With Integrated Assistant's Microscope

    S88 / OPMI Lumera T Device data Lumera T surgical microscope with integrated assistant's microscope Optics Component Properties Magnification Main microscope 3.5x - 21.0x at working distance of 200 mm and with 10x eyepieces motorized zoom system with apochromatic optics, 1:6 zoom ratio, magnification factor γ...
  • Page 228 Device data S88 / OPMI Lumera T Mechanics Component Properties Microscope tilt With self-locking control gear, manually adjustable mechanism via rotary knob. Tilt angle ±90° X-Y coupling Adjustment range: max. 40 mm x 40 mm Automatic centering at the push of a button Weight with Approx.
  • Page 229 S88 / OPMI Lumera T Device data Version 8.0 G-30-1682-en Page 229...

  • Page 230: Stands/Mounts

    Device data S88 / OPMI Lumera T Stands/mounts Floor stand S88 Mechanics Component Properties Support arm Length: 450 mm Swivel angle: 320° Suspension arm Length: 850 mm Swivel angle: 320° Vertical lift:± 360 mm coupling Swivel angle: 270° Stand height...
  • Page 231 S88 / OPMI Lumera T Device data Version 8.0 G-30-1682-en Page 231...
  • Page 232 Device data S88 / OPMI Lumera T Electrical data for S88 floor stand Power supply Only connect the suspension system to wall outlets which are provided with a properly connected protective ground conductor. Rated Voltage (115 V): 100 V - 125 V...
  • Page 233 S88 / OPMI Lumera T Device data Halogen light source Fiber-optic Lamp housing with 2 halogen reflector lamps illumination system (1 backup lamp) with 12 V 100 W in quick-change modules for one light guide, with blue barrier filter (retina protection filter) and...
  • Page 234 Device data S88 / OPMI Lumera T S-Video mode, Composite mode Clarity Refresh rate (Hz) Description 640 x 480 640 x 480 NTSC 720 x 576 720 x 576 DVI mode,VGA mode, Component mode Clarity Refresh rate (Hz) Description 640 x 480...
  • Page 235 S88 / OPMI Lumera T Device data Video monitor carrier arm Component Properties Suspension arm Length: 380 mm Swivel angle: 360° Stroke: ± 41° Support arm Length: 180 mm Swivel angle: ± 90° Carrier arm 9.0 kg max permissible weight load Total weight Approx.

  • Page 236: Ordering Data

    S88 / OPMI Lumera T Ordering data Operate the device using only accessories that were included in the scope of supply and have been recommended by ZEISS. Your country-specific contact persons for orders are listed on the internet at the following website: www.zeiss.com/med For authorized ZEISS partners, the contractual product configurations, accessories and spare parts apply.
  • Page 237 S88 / OPMI Lumera T Device data Ordering information for country-specific cables for the floor stand Description Order no. Europe 000000-0301-997 000000-0147-000 000000-0400-264 Switzerland 309850-9011-000 Argentina 000000-0434-527 China 000000-0475-507 Brazil 000000-0527-730 Tubes for main surgeon Description Order no. Invertertube incl. asepsis 303797-9120-000 Invertertube E incl.
  • Page 238 Assistant's microscope 0°, f = 225 mm 302952-0000-000 Adapter for 0° assistant's microscope 302980-0000-000 ZEISS 3-step magnification changer 303429-9903-000 Ordering data for 1Chip HD camera option for OPMI Lumera T Description Order no. 1Chip HD camera: – 1Chip HD camera for OPMI Lumera T 301900-8500-000 –...
  • Page 239 Beam splitter for the 1Chip HD camera: – Splitter 20 (beam splitter 20) 301503-9901-000 With the "1Chip HD Camera" option for OPMI Lumera T, you automatically receive the "1Chip HD Camera" Instructions for Use (G-30-1946). Video accessories For external video accessories for this surgical microscope, please refer to the separate user manual G-30-1888.
  • Page 240 Device data S88 / OPMI Lumera T Foot control panels Description Order no. Wireless foot control panel, 14-function (FCP WL) 304970-9060-000 Wired foot control panel, 14-function (FCP) 304970-9055-000 Cable for foot control panel (FCP and FCP WL), 304970-8730-000 3 m cable length...
  • Page 241 S88 / OPMI Lumera T Device data Description Order no. Detachable FC angular illumination 303371-9004-000 Instrument tray for S88 floor stand 000000-1352-729 Replacement lamps: Halogen lamp, 12 V, 100 W 380079-9040-000 Xenon lamp module with 2 xenon lamps in 304977-9036-000...

  • Page 242: Compliance

    Device data S88 / OPMI Lumera T Compliance Directives and standards with which the device is compliant: – The device complies with Medical Device Directive 93/42/EEC: Class I It is labeled with: – This device satisfies the US American and Canadian safety regulations for medical electrical devices/systems.

  • Page 243: Environmental Conditions

    S88 / OPMI Lumera T Device data Environmental conditions For operation Feature Admissible range Temperature + 10°C ... + 40°C Rel. humidity 30 % ... 75 % Air pressure 700 hPa - 1060 hPa For transport and storage Feature Admissible range...

  • Page 244: Guidelines And Manufacturer's Declaration Concerning Electromagnetic Compatibility

    WARNING Functional deterioration! Do not install or operate the S88 / OPMI Lumera T in direct proximity to other devices (with the exception of the combination of the devices described in these Instructions for Use) as this can impair the function of the S88 / OPMI Lumera T.
  • Page 245 CISPR. • Do not use the S88 / OPMI Lumera T when it is located next to, or stacked on top of, other devices. •...

  • Page 246: Emc - Electromagnetic Compatibility Iec 60601-1-2: 2014 (4Th Edition)

    (4th edition) Electromagnetic interference emissions The S88 / OPMI Lumera T is intended for operation in an electromagnetic environment as specified below. The customer or the user of the S88 / OPMI Lumera T is responsible for ensuring that the device is operated in such an environment.

  • Page 247: Electromagnetic Immunity For All Me Equipment And Systems

    The S88 / OPMI Lumera T is intended for operation in the electromagnetic environment specified below. The customer or the user of the device S88 / OPMI Lumera T is responsible for ensuring that it is operated in such an environment.

  • Page 248: Electromagnetic Immunity For Me Equipment And Systems That Are Not Life-Sustaining

    Electromagnetic immunity for ME equipment and systems that are not life-sustaining The S88 / OPMI Lumera T is intended for operation in the electromagnetic environment specified below. The customer or the user of the S88 / OPMI Lumera T is responsible for ensuring that the device is operated in such an environment.

  • Page 249: System Combinations

    S88 / OPMI Lumera T Device data System combinations The device S88 / OPMI Lumera T can be extended with the accessories offered by ZEISS (see ordering data/accessories) to form an already tested system. This device combination has been approved by ZEISS.
  • Page 250 Device data S88 / OPMI Lumera T Version 8.0 Page 250 G-30-1682-en...
  • Page 251 S88 / OPMI Lumera T Keyword index Keyword index Symbols + 90°-position ..................158 Numerics 180° tiltable tube ..................76 1Chip HD camera, mounting ..............148 45° inclined tube ..................76 Accessory equipment ................114 Additional integrated halogen light source ..........96 Adjusting the balance of the tilt motion ..........158 Adjusting the interpupillary distance ............160...
  • Page 252 Keyword index S88 / OPMI Lumera T Cable and light guide clip ................68 Cable connections ..................149 Cable connections for the 1Chip HD camera ...........149 CALLISTO eye on roll stand ..............128 Care ......................211 Carrier arm with tilt device ................68 Carrier arm, back ..................104 CCU camera control unit .................128...
  • Page 253 S88 / OPMI Lumera T Keyword index EDIS .......................128 EDIS box ....................128 EDIS data injection system ..............128 EDIS module on surgical microscope ............128 Electrical safety ..................11 Electrical standard ..................232 EMC – Electromagnetic compatibility ............246 Emergency backup power supply .............10 Environmental conditions ...............243 Establishing connections .................138...
  • Page 254 Keyword index S88 / OPMI Lumera T Illumination intensity .................19 Illumination settings as per DIN EN ISO 15004-2 ........22 Illumination systems, lamp 1 and lamp 2 ..........180 Illumination, characteristics ...............19 Inclined tube .....................76 Indicator lamp (color: amber) ..........30 Indicator lamp (color: green) ............86 Indicator, backup lamp is in use ............30...
  • Page 255 S88 / OPMI Lumera T Keyword index Manual mode ................30 Manual switching to the backup lamp ........84 Manufacturer’s address ................2 Manufacturer’s information ................2 Medical electrical systems ...............249 MediLive Trio Eye ...................114 MODE key ....................174 Motor speed, value range ...............156 NO SIGNAL .....................206 Normal use ....................9...
  • Page 256 Keyword index S88 / OPMI Lumera T Requirements for operation ..............14 Reset button ..................68 S88 floor stand, connection ..............146 Safety check ...................217 Safety measures ..................5 SDI switchover ..................183 Selector ..................86 Service display ..................177 Setting the lamp brightness ..............180 Setting the suspension arm weight compensation ........152 SIP label ....................44...
  • Page 257 S88 / OPMI Lumera T Keyword index User interface ..................178 Value range, lamp brightness ..............156 Value range, motor speed ..............156 Ventilation grid ...................84 VGA port ....................120 What to do in the event of malfunctions ..........193 Wide-angle observation system ..............170 Widefield eyepieces with magnetic coupling ..........80 Wrench symbol ..................177...
  • Page 258 Keyword index S88 / OPMI Lumera T Version 8.0 Page 258 G-30-1682-en...
  • Page 259 S88 / OPMI Lumera T (Blank page for your notes . . .) Version 8.0 G-30-1682-en Page 259...
  • Page 260 Carl Zeiss Meditec AG Fax: + 49 (0)7364 - 20 4823 Goeschwitzer Strasse 51-52 Email: info.meditec@zeiss.com 07745 Jena Website: www.meditec.zeiss.com Germany...

This manual is also suitable for:

S88

Table of Contents
