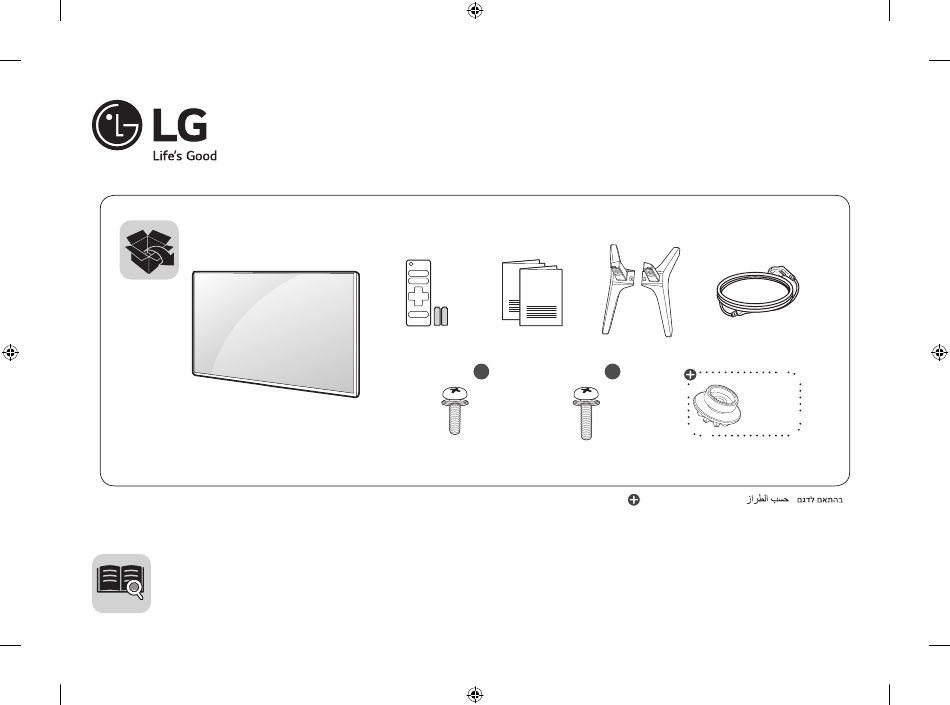

- Page 1 LED TV LJ54** UJ62** 43UJ62** (M4 x L14) (M5 x L17) 49LJ54** 43UJ62** 65UJ62** 49UJ62** 49LJ54** 49UJ62** 55LJ54** 55UJ62** : Depending on model / P/No: MFL69715344 (1709-REV01) www.lg.com...
- Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
- Page 5 AUDIO OUT/ H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
- Page 6 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 43UJ620V-TA 241.4 95.9 43UJ620Y-TA 49LJ540V-TA 49LJ540Y-TA 1104 251.1 91.4 11.3 49UJ620V-TA 49UJ620Y-TA Power requirement /...
- Page 9 55LJ540V-TA 55LJ540Y-TA 1243 251.1 91.1 13.7 55UJ620V-TA 55UJ620Y-TA 1467 301.3 91.4 22.2 21.4 65UJ620Y-TA Power requirement /...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69715245* P/NO: MFL69715245 (1708-REV01) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if CAUTION not secured completely into socket, fire ignition may break out.
- Page 15 • Only use an authorized AC adapter and power cord approved by or wire into the product, or inflammable objects such as paper LG Electronics. Otherwise, this may result in fire, electric shock, and matches. Children must pay particular attention. Electrical malfunction or product deformation.
- Page 16 • Signal from Remote Control can be interrupted due to external/ • Avoid touching the screen or holding your finger(s) against it for internal lighting eg Sunlight, fluorescent lighting. If this occurs turn long periods of time. Doing so may produce some temporary or off lighting or darken viewing area.
-
Page 17: Separate Purchase
Preparing • Do not use any unapproved items to ensure the safety and product life span. • If the TV is turned on for the first time after it was shipped from • Any damage or injuries caused by using unapproved the factory, initialization of the TV may take a few minutes. -
Page 18: Lifting And Moving The Tv
Lifting and moving the TV Using the button Please note the following advice to prevent the TV from being scratched You can simply operate the TV functions, using the button. or damaged and for safe transportation regardless of its type and size. •... -
Page 19: Mounting On A Table
Mounting on a table Securing the TV to a wall (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 20: Mounting On A Wall
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to • When attaching the LG wall mount bracket to the TV, do not use the floor. When you attach the TV to other building materials, please wall mount spacers provided with the LG wall mount bracket. -
Page 21: Connections (Notifications)
Connections (notifications) Satellite dish connection (Only satellite models) Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s Connect the TV to a satellite dish to a satellite socket with a satellite RF connection, refer to the manual provided with each device. -
Page 22: Remote Control
Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (SEARCH) Search for content such as TV programmes, movies (Some buttons and services may not be provided depending on models and other videos, or perform a web search by entering text in the or regions.) search bar. -
Page 23: Troubleshooting
• Check if the Auto Power Off is activated in the General LG Electronics will also provide open source code to you on CD-ROM Mode settings. (Depending on model) for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to •... -
Page 24: Specifications
Specifications Abnormal Display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with Wireless module specification product. • As band channels can vary per country, the user cannot change or •... - Page 25 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % 1 Only Satellite models.
- Page 26 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. •...
- Page 28 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 30: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 32: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 33: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 34: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 37 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 38 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 40 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
