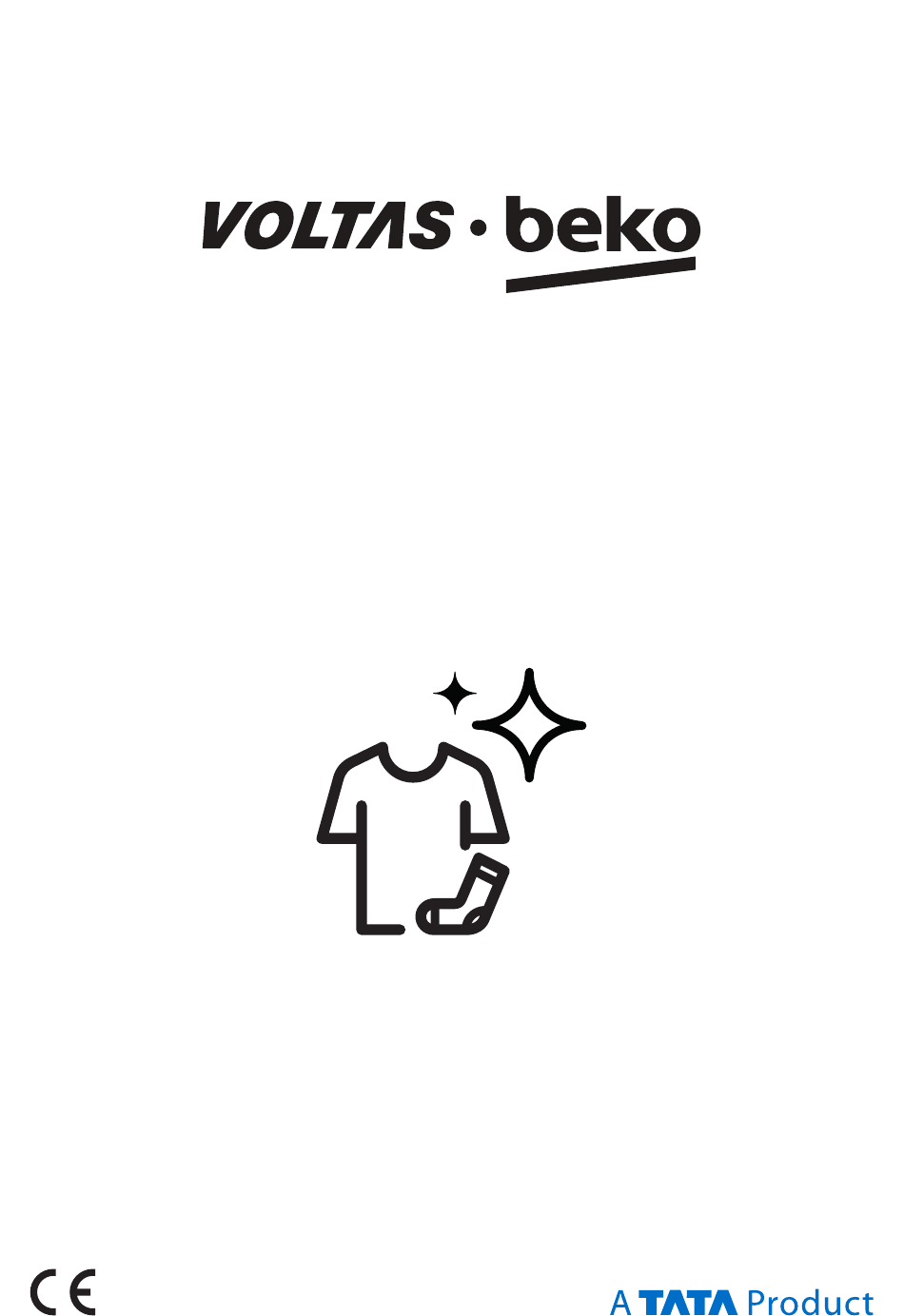

- Page 1 Washing Machine User Manual WFL6510VPWS 2820528425_EN / 17-04-20.(18:20) Document Number :...
-
Page 3: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 4: Electrical Safety
Packaging materials may be dangerous for the children. Keep packaging materials in a safe place away from reach of the children. Electrical products are dangerous for the children. Keep the children away from the product when it is in use. Do not allow them to play with the product. -
Page 5: Intended Use
Important instructions for environment 2.1 Compliance With GSR 1349(E) &E-Waste(Management) Amendment Rules, INDIA - MOEF. / WEEE Directive This product complies with : India Gezztte : G.SR.261(E) 22/3/2018 / G.S.R.1349(E)30/11/2017 - E Waste regulations And wide Environment protection act 1986/29 This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 6: Technical Specifications
Technical specifications Supplier name or trademark VoltasBeko Model name WFL6510VPWS Rated capacity (kg) Maximum spin speed (rpm) 1000 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) 230 V / 50Hz Total current (A) Total power (W) -
Page 7: Appropriate Installation Location
4.1 Installation • Apply to the nearest authorised service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 8: Connecting Water Supply
4.1.4 Connecting water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher. -
Page 9: Adjusting The Feet
• If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak. -
Page 10: Sorting The Laundry
4.2 Preparation 4.2.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. -
Page 11: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –... -
Page 12: Using Liquid Detergents
Using liquid detergents If the product contains a liquid detergent cup: • Put the liquid detergent container into the compartment no “2”. • If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container. If the product is equipped with a liquid detergent part: •... - Page 13 4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature range based temperature range temperature range temperature range based on soiling level: cold -40 based on soiling based on soiling on soiling level: 40-90 o C) level: cold -40 o C)
-
Page 14: Preparing The Machine
4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection Knob (Uppermost 6 - Auxiliary Function Button 3 position On / Off) 7 - Auxiliary Function Button 2 2 - Display 8 - Auxiliary Function Button 1 3 - End Time Adjustment Button 9 - Spin Speed Adjustment Button 4 - Programme Follow-up Indicator 10 - Temperature Adjustment Button... -
Page 15: Programme And Consumption Table
4.3.4 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C 2,30 • • • • 1000 Cold - 90 1,70 • • • • Cottons 1000 Cold - 90 0,95 • • • • 1000 Cold - 90 0,585 1000 Cottons Eco 60**... -
Page 16: Main Programmes
4.3.5 Main programmes Depending on the type of fabric, use the following main programmes. • Cottons You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When the heavy function is selected, programme duration becomes notably longer to ensure superior washing and rinsing performance. - Page 17 • Dark Care Use this programme to preserve the colour of your dark-coloured clothes and jeans. This programme provides high efficiency in washing, thanks to a special drum movement, even at low temperatures. It is recommended to use liquid detergent or woolen shampoo for dark coloured laundry. Do not wash your delicate clothes that contain wool etc.
- Page 18 • Down Wear Use this programme to wash down coats, vests, jackets etc. that bear a “machine-washable” tag. Thanks to special spin profiles, it is ensured that water reaches the air gaps between feathers. • Monsoon Use this programme to wash your cotton or cotton/synthetic mix laundry. This programme cleans dust, sand etc.
-
Page 19: Auxiliary Function Selection
4.3.10 Auxiliary function selection Select the desired auxiliary functions before starting the programme. You can also select or cancel auxiliary functions suitable for the running programme without pressing the Start/Pause button while the machine is operating. To do this, the machine must be in a step before the auxiliary function you are going to select or cancel. -
Page 20: Anti-Crease
To enable Child Lock: Press and hold the Auxiliary Function button 2 for 3 seconds. While you’re holding the button pressed for 3 seconds, C03, C02 and C01 will be displayed respectively.Then, “Con” will be displayed to warn the user that child lock is enabled.If you press any button or turn the Programme Selection knob while the Child Lock is enabled, the same warning will be displayed. - Page 21 Cancelling the delayed end function If you want to cancel the delayed end time countdown and start the programme immediately: 1. Set the Programme Selection knob to any programme. This way, the Delayed End time will be cancelled. The End/Cancel light will flash continuously. 2.
-
Page 22: Cancelling The Programme
Adding and removing laundry 1. Press the “Start/Pause” button to pause the machine. The programme follow-up light of the relevant step during which the machine was switched into the pause mode will flash. 2. Wait until the Loading Door can be opened. 3. -
Page 23: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 24: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. -
Page 25: Troubleshooting
Troubleshooting Problem Reason Solution Program does not start after Start / Pause / Cancel button was not pressed. • *Press the Start / Pause / Cancel button. closing the door. It may be difficult to close the loading door in case •... - Page 26 Problem Reason Solution Programme time does not Timer may stop during water intake. • Timer indicator will not countdown until the countdown. (On models with machine takes in adequate amount of water. display) (*) The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water.
- Page 27 Problem Reason Solution It does not rinse well. The amount, brand and storage conditions of the • Use a detergent appropriate for the washing detergent used are inappropriate. machine and your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 28 Problem Reason Solution Foam is overflowing from the Too much detergent is used. • Mix 1 tablespoonful softener and ½ l water detergent drawer. and pour into the main wash compartment of the detergent drawer. • Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”.
-
Page 29: Warranty
Dear Customer, Your Voltas.Beko Washing machine is covered for a comprehensive warranty of 3 year from date of purchase as well as an additional 9 year warranty on Motor (3 Year Standard + 9 Year extended only on the Motor) irrespective of whether product is in use or not. - Page 30 In case the warranty obligation could not be met due to any condition beyond our control, commercial settlement will be done considering the depreciation value of the product, based on the purchase date. The Company’s decision in this regard shall be final and conclusive. This Warranty becomes void if there is any unauthorized repair, tampering, alteration, modification, misuse or damage to the Product.
- Page 31 Customers are advised to register the product with the Company by Voltas Beko Customer Care Number : 981899 4444 / 1860 599 4444 SMS <VB> 56677 Customer Care Mail ID : wecare@voltasbeko.com Website : www.voltasbeko.com...
- Page 32 Voltas Beko Customer Care Number : 981899 4444 / 1860 599 4444 SMS <VB> 56677 Customer Care Mail ID : wecare@voltasbeko.com Website : www.voltasbeko.com Facebook: Voltasbeko Twitter : Voltasbeko Registered office : Voltbek Home Appliances Private Limited Voltas House ‘A’, Dr. Babasaheb Ambedkar Road, Chinckpokli, Mumbai – 400 033...
