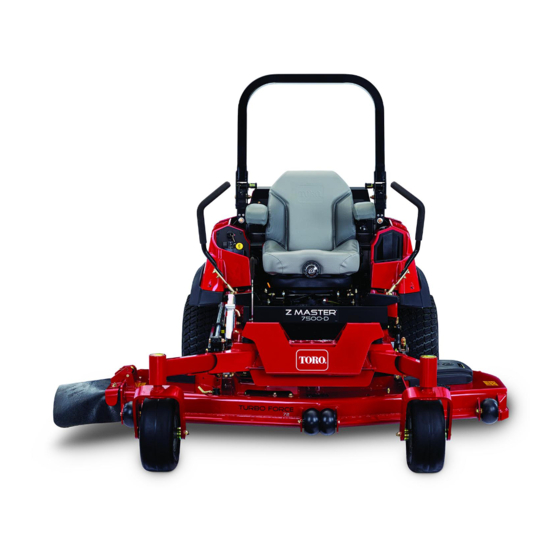

Z Master
With 60in or 72in TURBO FORCE
Model No. 72027—Serial No. 400000000 and Up
Model No. 72030—Serial No. 400000000 and Up
Model No. 72076—Serial No. 409800000 and Up
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
5
6
7
8
9
10
© 2021—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Professional 7500-D Series Riding Mower
Description
No parts required
No parts required
No parts required
No parts required
No parts required
No parts required
J-bolt
Wing nut
Hold-down clamp
No parts required
No parts required
Operator's Manual
Engine owner's manual
Registration card
Operator training material
Key
Register at www.Toro.com.
Form No. 3448-442 Rev A
®
Side Discharge Mower
Qty.
–
Add fuel to the machine.
–
Check the engine-oil level.
–
Check the tire pressure.
–
Check the hydraulic-fluid level.
–
Check the deck gearbox-fluid level.
–
Check the wheel lug nut torque.
2
2
Install the battery.
1
Raise the rollover protection system
–
(ROPS).
Check the machine before delivery to
–
the customer (All machines).
1
1
1
Delivering the machine to the customer.
1
2
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Setup Instructions
Use
*3448-442*

Advertisement

loading

Related Manuals for Toro 72076

Summary of Contents for Toro 72076

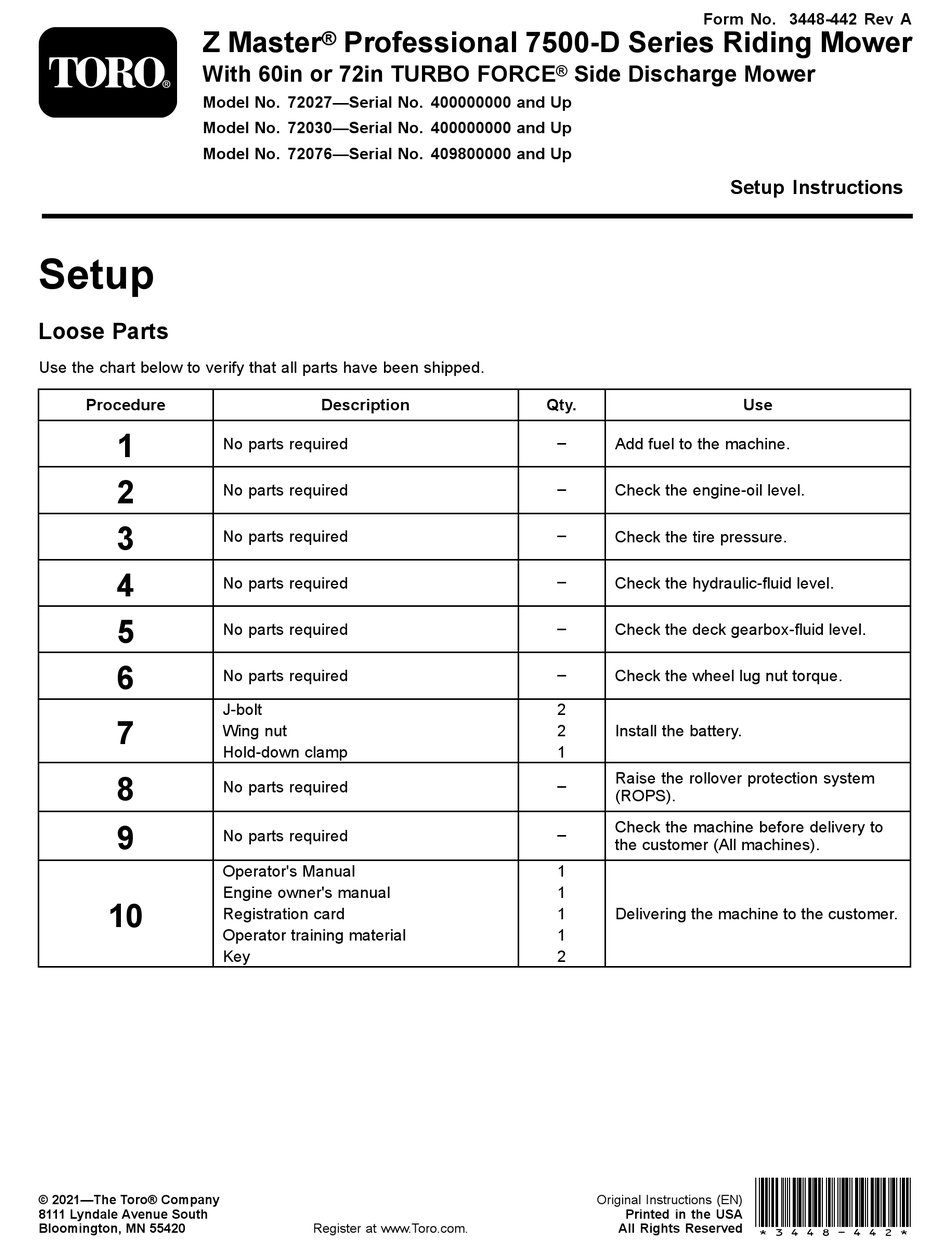

  • Page 1 ® Side Discharge Mower Model No. 72027—Serial No. 400000000 and Up Model No. 72030—Serial No. 400000000 and Up Model No. 72076—Serial No. 409800000 and Up Setup Instructions Setup Loose Parts Use the chart below to verify that all parts have been shipped.

  • Page 2: Checking The Engine Oil Level

    Adding Fuel to the Machine Checking the Hydraulic-Fluid Level No Parts Required No Parts Required Procedure Procedure Add fuel to the machine before starting it. Refer to your Operator’s Manual for the correct fuel and Park the machine on a level surface, disengage procedure.
  • Page 3 g228816 Figure 2 1. Full line 2. Add line g231764 Figure 3 Replace the dipstick and thread the fill cap 1. Dipstick/fill plug finger-tight onto the filler neck. Check all hoses and fittings for leaks. If the fluid level is low, add fluid until the level is between the marks on the dipstick.

  • Page 4: Installing The Battery

    Installing the Battery Raising the Rollover Protection System (ROPS) Parts needed for this procedure: J-bolt No Parts Required Wing nut Procedure Hold-down clamp Pull the knob and rotate 90° to the unlatched position (Figure Procedure Raise the roll bar to the operate position, and Important: This procedure only applies to rotate the knobs so that they move partially into...
  • Page 5 g008619 Figure 5 1. Engaged position 2. Partially engaged—do not operate the machine with the roll back in this position.
  • Page 6 Checking the Machine Before Delivery to the Customer (All Machines) No Parts Required Procedure Before delivering the machine to the customer, ensure that you perform or have performed the procedures listed in the following table and initial each when finished. Refer to the Operator's Manual for instructions on performing these procedures.
  • Page 7 Delivering the Machine to the Customer Parts needed for this procedure: Operator's Manual Engine owner's manual Registration card Operator training material Procedure At delivery, fill in the model and serial number, complete the items listed in the following table, and initial each when finished.
  • Page 8 Ensure that the customer receives the Operator's Manual, engine owner’s manual, Setup Instructions, and operator training material. Ensure that the customer knows the Parts Catalog is available at www.Toro.com. Assist the customer in loading the machine using a full-width trailer ramp.
