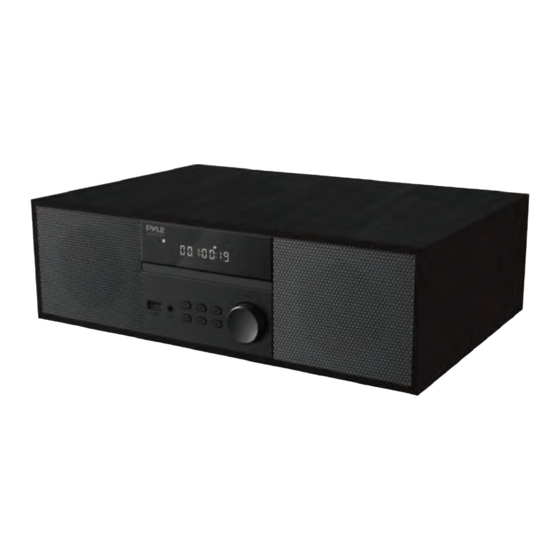

Summary of Contents for Pyle PHCD26
-
Page 2: Table Of Contents
Contents Welcome Safety information Features and Technical Speci cations Remote Control Setting up your Home DVD Stereo System Using your Home DVD Stereo System Troubleshooting Maintaining your Home DVD Stereo System Legal Notices Welcome Your Home DVD Stereo System is designed for reliable and trouble free performance, we wish you great satisfaction in using it. - Page 3 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this manual. The Home DVD Stereo System uses a Class 1 laser to read Compact Discs. Your Home DVD Stereo System is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated.
-
Page 4: Features And Technical Speci Cations
Ventilation Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your Home Stereo System on a bed, sofa, rug, or other similar surface. - Page 5 Compatible with all of Todays Latest BT Devices (Smartphones, Tablets, Laptops, Computers, etc.) • BT Version: 5.0V • BT Network Name: 'Pyle USA' • Wireless BT Range: Up to 30.0' ft What's in the Box: • Home DVD Stereo System •...
-
Page 6: Remote Control
Remote Control Function Keys Note: Use 2 x 'AAA' batteries (not included). Keep away from children. 1. Standby/Power ON/OFF switch: Press to open/close the unit power. In this mode, the unit is still consuming a small amount of power. OPEN/CLOSE: Open/Close the disc tray. - Page 7 OSD: Press OSD on the remote control to display single elapsed time, single remaining time, total elapsed time, total remaining time and other information about the disc. L/R: Press to set: Stereo, Mono L, Mono R, Auto L, Auto R in SVCD VCD or CD format. 5.
- Page 8 7. FM-/FM+ (PREV/FWD) In FM mode Short press to next/previous channel. Press and hold to manual search (Unit will stop to current scanning channel automatically). In DVD/USB mode Forward/Backward (x2, x4, x8, x20) Line in/BT: Do not work PLAY/PAUSE/SCAN Play or pause track Auto scaning the stations in FM mode STOP: Stop playback CH-/CH+ (PREV/NEXT)
- Page 9 1. Remote Sensor: Remote control receiver 2. USB port: Connect a USB fash drive to this port to play les on the device. 3. Headphone jack: Connect headphones to this jack to listen to radio/playback through your headphones. 4. Standby/ON button: Press to turn on your Home Stereo System. Press again to return your Home Stereo System to standby mode.
-
Page 10: Setting Up Your Home Dvd Stereo System
BACK PANEL 1. HD OUTPUT: Connect an external HDMI device to this jack. 2. AUDIO OUT: Connect an external L/R device to this jack. 3. VIDEO OUT: Connect an external VIDEO device to this jack. 4. AUX IN: Connect an external audio device to this jack. 5. -
Page 11: Using Your Home Dvd Stereo System
USING YOUR HOME STEREO SYSTEM Playing the Radio 1. Press Standby to turn on the Home Stereo System. 2. Press MODE button repeatedly to select RADIO mode. 3. Press SCAN button to automatically scan stations from low to high, the searched stations are automatically saved as presets. - Page 12 Notes: • If a CD is inserted incorrectly, is dirty, or is damaged, or is not present at all, NO appears on the display. • To prevent damage to the CD, never open the CD door while the CD is rotating and never touch the lens.
- Page 13 For additional information on pairing your device, see your device’s documentation. 3. On your Bluetooth device, select “Pyle USA” from the device list. Repeat steps 1-2 if “Pyle USA” is not displayed. 4. If a PIN code is requested, enter “0000”.
- Page 14 Select “Pyle USA” on your Bluetooth device. Change your Home Stereo Change the Home Stereo System System input source input source back to Bluetooth. Note: If a device does not automatically reconnect, you may need to reselect “Pyle USA” on your Bluetooth device. www.PyleUSA.com...
-
Page 15: Troubleshooting
Connecting to a di erent device 1. On your Bluetooth device, turn OFF the Bluetooth function or unpair the Home Stereo System in your Bluetooth device list. The Home Stereo System can now be connected to another Bluetooth device. 2. Follow the section Pairing your devices on page 13 to connect a new device. Receiving a phone call while playing music •... - Page 16 • Make sure that your Home Stereo System and Bluetooth device are both in pairing mode. • Make sure that your Bluetooth device is not paired to any other device. • Make sure that you have selected “Pyle USA” on your Bluetooth device. www.PyleUSA.com...
-
Page 17: Maintaining Your Home Dvd Stereo System
Bluetooth range. • Put your Home Stereo System into pairing mode, then refresh your list of Bluetooth devices. “Pyle USA” does not appear For more information, see the documentation on my Bluetooth device that came with your Bluetooth device. - Page 18 Cleaning Discs Fingerprints and dust on the disc can cause poor sound quality and distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
-
Page 19: Legal Notices
LEGAL NOTICES FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
