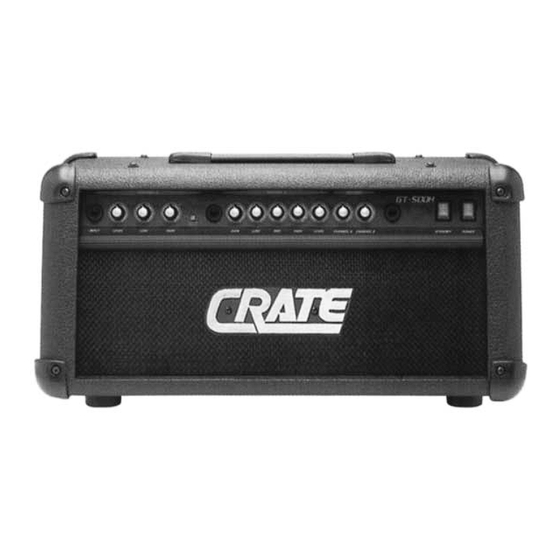

GT-500H
GUITAR AMPLIFIER
OWNER'S MANUAL

Advertisement

loading

Related Manuals for Crate GT-500H

Summary of Contents for Crate GT-500H

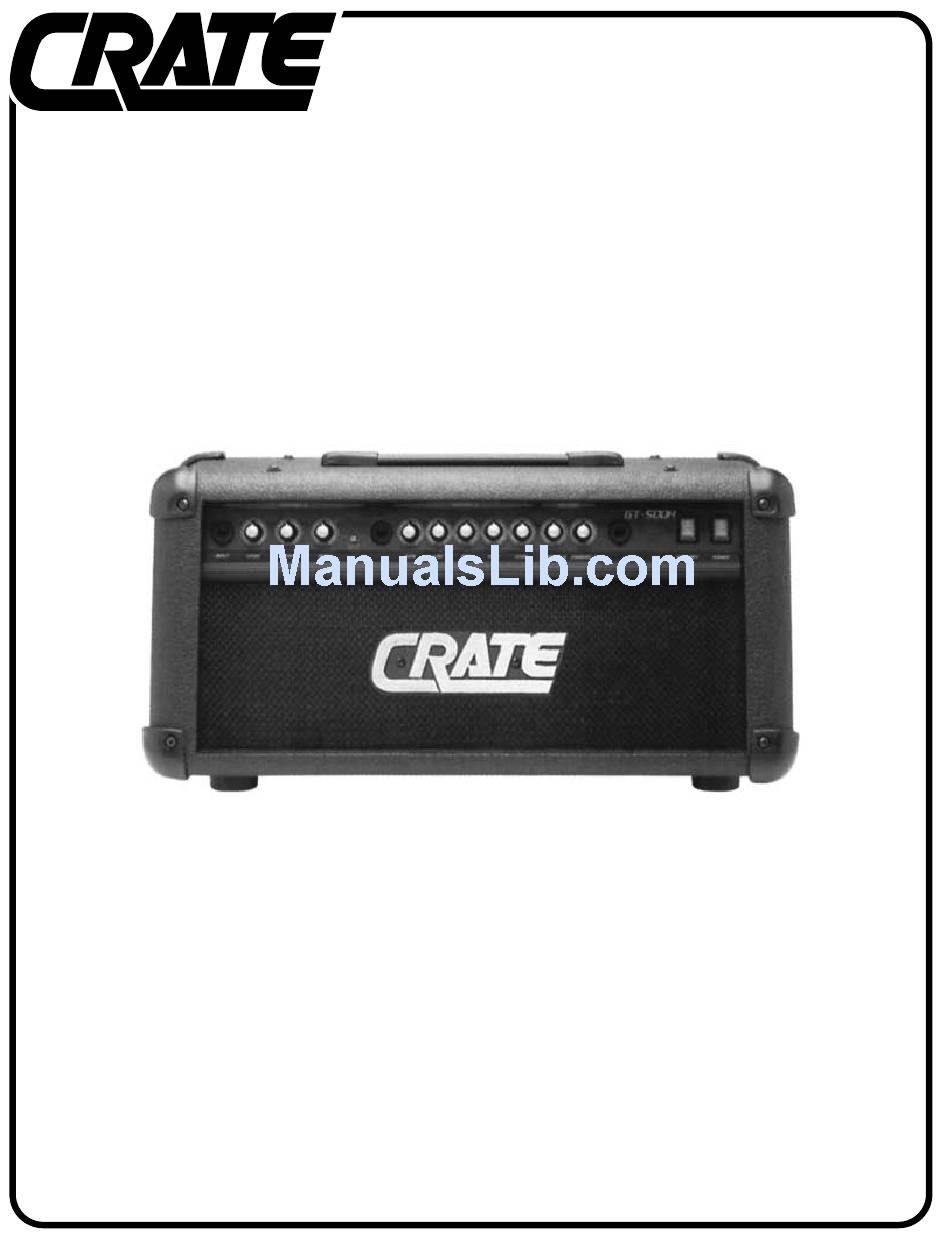

  • Page 1 GT-500H GUITAR AMPLIFIER OWNER’S MANUAL...
  • Page 2 You are now the proud owner of one of the newest and most versatile tube amplifiers available for the guitar, the GT-500H. This remarkable amplifier offers tremendous flexibil- ity and power with two separate channels and silent switching for a uniquely rich palette of tonal variety and simplicity of control over your sound.

  • Page 3: Table Of Contents

    GT-500H Amplifier TABLE OF CONTENTS: Features ........3 The Front Panel Controls and Their Use .

  • Page 4: The Front Panel Controls And Their Use

    Amplifier GT-500H The Front Panel Controls and Their Use: 1. INPUT: This jack accepts a high impedance signal from a guitar, bass, keyboard, etc. 2. CHANNEL A VOLUME: This control sets the level of Channel A. The sound is brighter at lower settings, and can be cranked up for a crunchy rhythm sound.

  • Page 5: The Rear Panel

    EXTENSION jack if using more than one cabinet. Connecting to the Insert Jack: effects into the GT-500H just prior to its power amp stage. When using Crate’s CYC6MS stereo-to-mono Y-cord, connect its 1/4” stereo plug into the amp’s Insert jack, its “send” plug Made in the U.S.A.

  • Page 6: Some Suggested Settings

    GT-500H Amplifier Some Suggested Settings: SPARKLING CLEAN WARM & CLEAN BLUESY DIRT CRUNCH RHYTHM BLUESY GRIND "DRIVE 'EM MAD" SHRED TRY THESE AT MIDNIGHT!

  • Page 7: System Block Diagram

    Amplifier GT-500H System Block Diagram: CHANNEL A: FIRST GAIN INPUT CHANNEL B: SECOND GAIN FOOTSWITCH INSERT CHANNEL A TONES & VOLUME VOL. TREB. BASS TONE PRE- EMPHASIS GAIN THIRD FOURTH GAIN & FIFTH GAIN STAGE REVERB PHASE POWER SPLITTER SECOND...

  • Page 8: Technical Specifications

    Power Requirements Size and Weight The GT-500H is covered with a durable black Tolex wipe it clean with a damp lint-free cloth to remove dirt and road film. Never spray cleaning agents directly onto the cabinet, and stay away from abrasive cleansers which could damage the finish.
