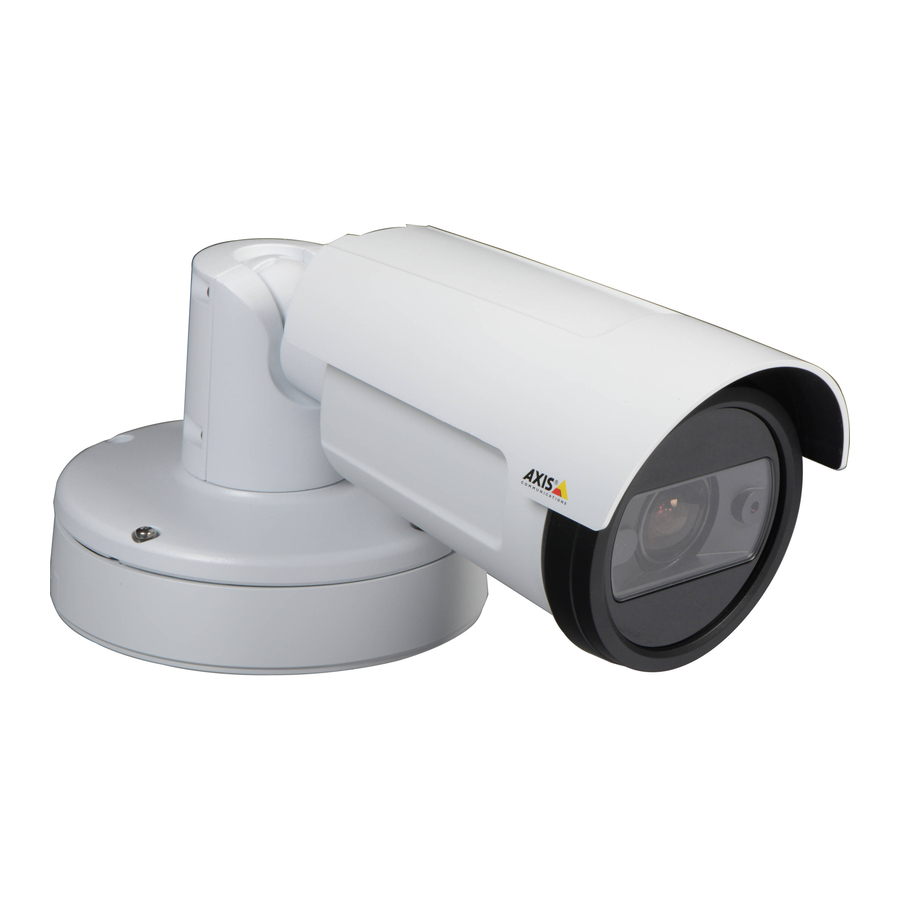

- Page 1 AXIS P14 Network Camera Series AXIS P1405-LE Mk II Network Camera AXIS P1425-LE Mk II Network Camera AXIS P1435-LE Network Camera AXIS P1435-E Network Camera User Manual...
-
Page 2: Table Of Contents
AXIS P14 Network Camera Series Table of Contents About this manual ......... . -
Page 3: About This Manual
AXIS P14 Network Camera Series About this manual About this manual This User Manual provides information on the product regarding: • Access • Main use cases • Troubleshooting • Specifications Note The User Manual may include more than one product. Part of the content, e.g. some use cases or specifications, may only apply to some of them. -
Page 4: Solution Overview
AXIS P14 Network Camera Series Solution overview Solution overview... -
Page 5: Product Overview
AXIS P14 Network Camera Series Product overview Product overview AXIS P1405-LE Mk II Network Camera microSD card slot Control button Network connector Status LED indicator Part number (P/N) & Serial number (S/N) AXIS P1425-LE Mk II and AXIS P1435-LE Network Cameras microSD card slot... - Page 6 AXIS P14 Network Camera Series Product overview I/O connector Control button Network connector Status LED indicator Part number (P/N) & Serial number (S/N)
-
Page 7: Find The Device On The Network
Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support For more information about how to find and assign IP addresses, see the document How to assign an IP address and access your device on the device page at axis.com... -
Page 8: Setup
Capture modes Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. If using a capture mode with a smaller resolution than the maximum resolution, the angle of view is reduced. The capture mode also affects light sensitivity. A capture mode with a high maximum frame rate has reduced light sensitivity and vice versa. - Page 9 AXIS P14 Network Camera Series Setup • For environments with certain artificial lighting, for example fluorescent lighting, select Flicker-free. • For environments with certain artificial light and bright light, for example outdoors with fluorescent lighting at night and sun during daytime, select Flicker-reduced.
- Page 10 AXIS P14 Network Camera Series Setup Left: no zoom. Right: remote zoom applied. Improve facial recognition To better recognize the face of a person passing by the camera, you can set the optimal pixel resolution with the camera’s pixel counter.
- Page 11 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
- Page 12 Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr Benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day. As the available light diminishes, you can set the camera to automatically shift to night mode, in which the camera uses both visible light and near-infrared light to deliver black-and-white images.
-
Page 13: Overlays
This example explains how to display the text “Motion detected” when the device detects motion: Make sure the AXIS Video Motion Detection application is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. -
Page 14: Streaming And Storage
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 15: Events
8. In the list of storage options, select SD card. 9. Click Save. Record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •... -
Page 16: Applications
Applications Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com Note •... - Page 17 The counter is embedded in the camera which means you do not need a dedicated computer to run the application. AXIS People Counter is intended for retail environments, like stores or shopping malls, or other environments where you want to...
-
Page 18: Troubleshooting
AXIS P14 Network Camera Series Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values. -
Page 19: Technical Issues, Clues And Solutions
Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the... -
Page 20: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. -
Page 21: Specifications
AXIS P14 Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED Indicators Status LED Indication Unlit Connection and normal operation. Green Steady green for 10 seconds for normal operation after startup completed. -
Page 22: Connection Diagrams
Digital output - For connecting external devices such as relays and LEDs. Connected devices can be activated by the VAPIX® Application Programming Interface or from the product’s webpage. 4-pin terminal block Connection Diagrams I/O Connector Note Valid for AXIS P1435-LE Network Camera 0 V DC (-) DC output 12 V, max 25 mA Digital input Digital output... - Page 23 User Manual Ver. M3.3 AXIS P14 Network Camera Series Date: April 2019 © Axis Communications AB, 2017 - 2019 Part No. T10106752...
