Delta Addison 3592 Series Manual

Delta Addison 3592 Series Manual

Two handle widespread lavatory faucets
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
®
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Model/Modelo/Modèle
3592 Series/Series/Seria
Addison™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
L
for easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER toDAS las instrucciones completamente
antes de empezar.
• LEER toDoS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE toUtES les instructions avant de débuter;
• LIRE toUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
61300
you may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
L
61300
1

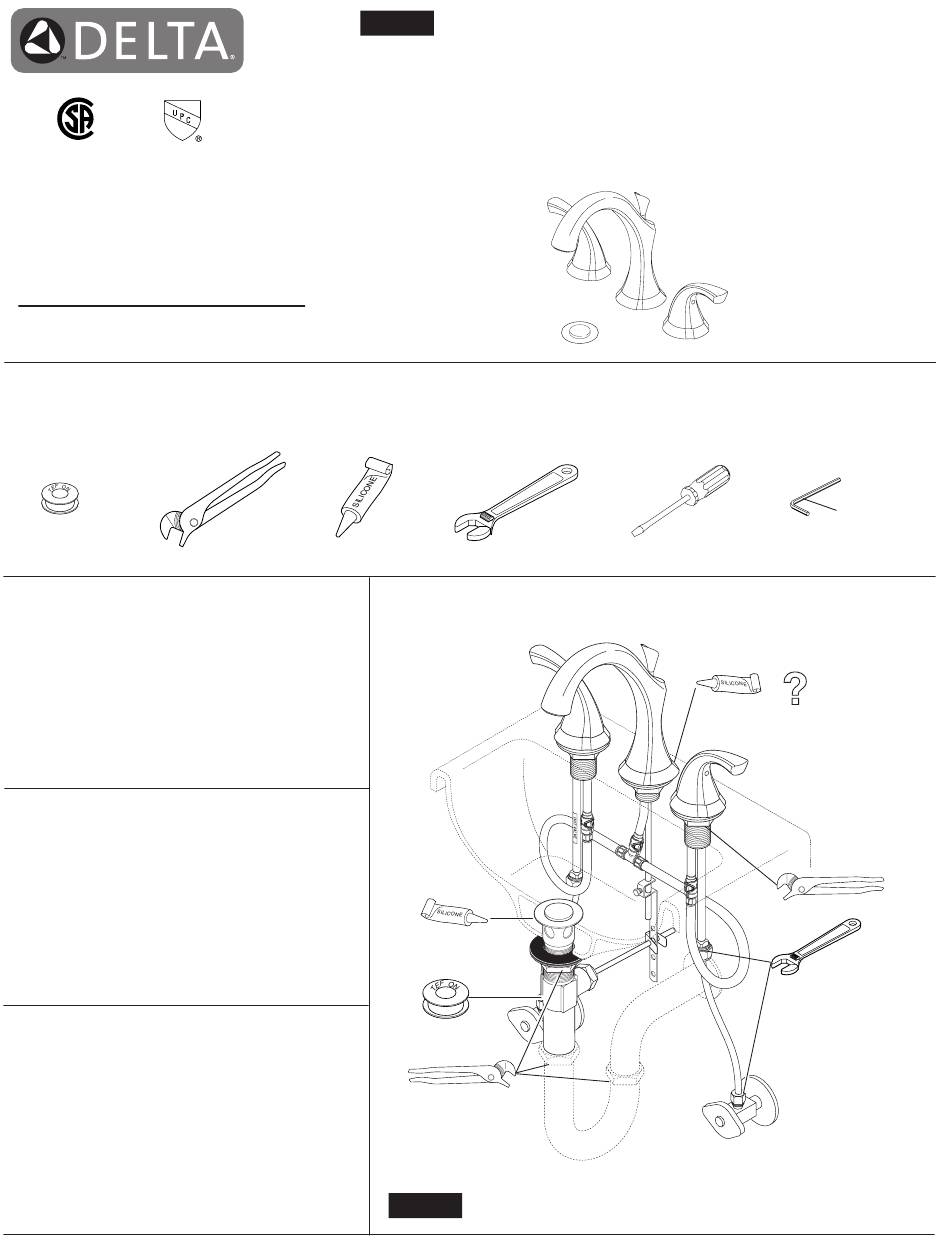

tWo hANDLE WIDESPREAD
LAvAtoRy fAUCEtS
LLAvES DE LAvAMANoS
EXtENDIDAS DE DoS MANIJAS
RobINEtS à ENtRAXE LoNG à
DEUX PoIGNéES PoUR LAvAbo
T E FLO N
3/32" (2.38mm)
?
12/7/09
Rev. C

Advertisement

loading

Related Manuals for Delta Addison 3592 Series

Summary of Contents for Delta Addison 3592 Series

  • Page 1 • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER toDAS las instrucciones completamente antes de empezar. • LEER toDoS los avisos, cuidados, e información de mantenimiento.
  • Page 2 Slide hot (1) and cold (2) end valves with gaskets (3) or gaskets (4) Install the spout (1) and gasket (2) or gasket (3). Secure with washer and nut through sink. Note: hot side end valve is labeled (5). Secure end (4).
  • Page 3 Step 3b Step 3e Remove pivot nut (1). Install horizontal rod (2) and Metal Pop-up Apply silicone to underside of flange (1). Step 3c stopper (3) as removable (4) or non-removable (5). Insert body (2) into sink. Screw flange (1) Remove stopper (1) and flange (2).
  • Page 4 1/2" (13 mm) IPS Make Connections to water lines: Remove aerator (1) using supplied wrench (2) and turn faucet handles (3) all the way on. Turn on hot and cold water supplies (4) Choose hook-ups for 1/2" I.P.S. connections: and flush water lines for one minute. (1) Ball nose riser (3/8"...

  • Page 5: Maintenance

    RP61286▲ RP61287▲ Lift Rod & Finial Handle Assembly Barra de alzar y Pomo Ensamble de la manija RP61288▲ Tige de Manoeuvre et Grain Manette Handle Button (2) & de la Tirette Set Screw (2) Botón de la manija (2) y Tornillo de Ajuste (2) Vis de calage (2) et RP51345...

  • Page 6: Cleaning And Care

    MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement This warranty excludes all industrial, commercial &...
