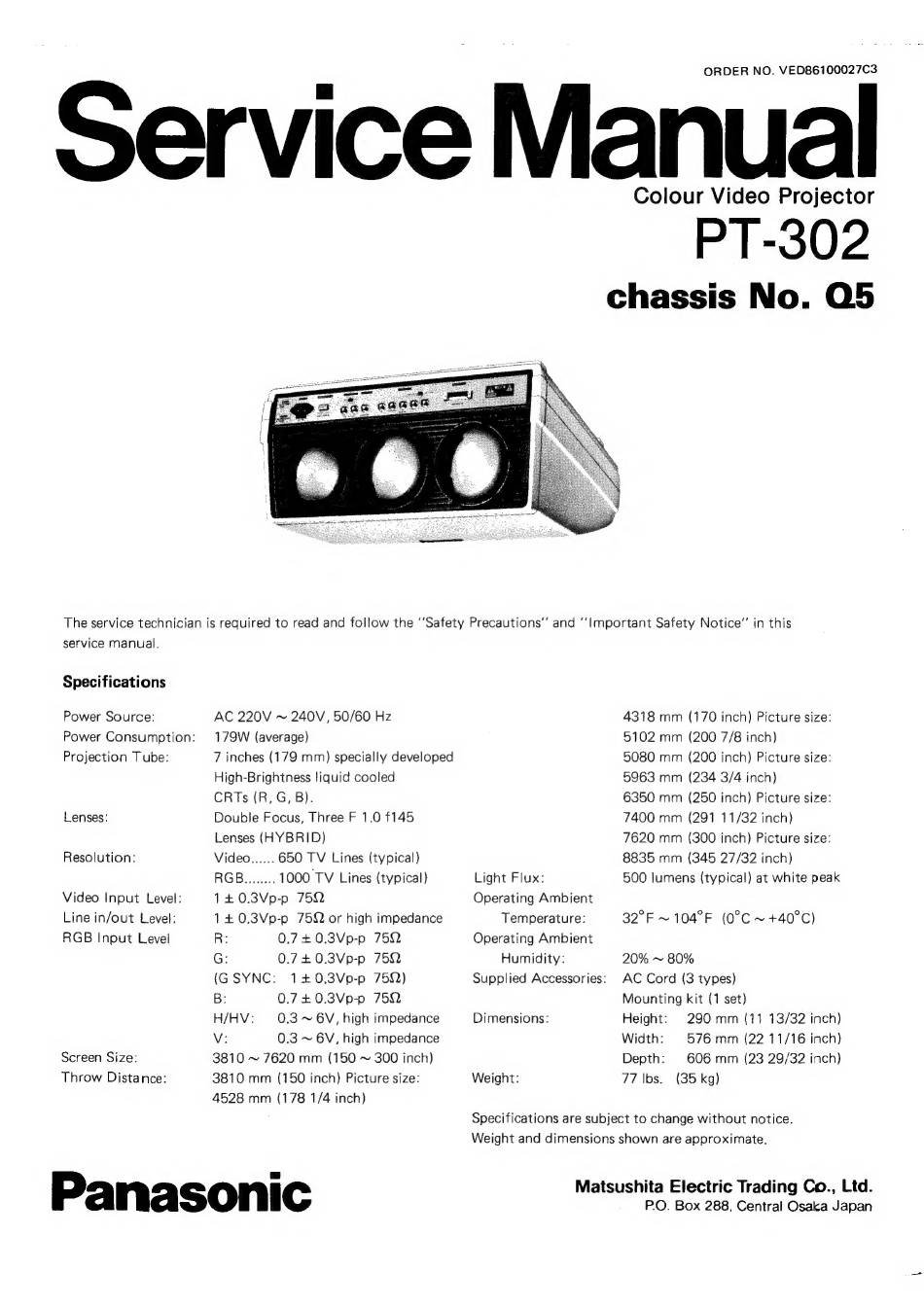

ORDER NO. VED86100027C3
ervice Manual
Colour Video Projector
PT-302
chassis No. Q5
The service technician is required to read and follow the ''Safety Precautions' and ''Important Safety Notice" in this
service manual.
Specifications
Power Source:
AC 220V ~ 240V, 50/60 Hz
4318 mm (170 inch) Picture size:
Power Consumption:
179W (average)
5102 mm (200 7/8 inch)
Projection T ube:
7 inches (179 mm) specially developed
5080 mm
(200 inch) Picture size:
High-Brightness liquid cooled
5963 mm (234 3/4 inch)
CRTs (R, G, B).
6350 mm
(250 inch) Picture size:
Lenses:
Double Focus, Three F 1.0 145
7400 mm
(291 11/32 inch)
Lenses (HYBRID)
7620 mm
(300 inch) Picture size:
Resolution:
Video...... 650 TV Lines (typical)
8835 mm (345 27/32 inch)
RGB........ 1000 TV Lines (typical)
Light Flux:
500 lumens (typical) at white peak
Video Input Level:
140.3Vp-p
75Q
Operating Ambient
Line in/out Level:
1+0,3Vp-p 75Q or high impedance
Temperature:
32°F ~ 104°F (0°C ~ +40°C)
RGB Input Level
R:
0.74+0.3Vp-p
752
Operating Ambient
G:
0.7+0.3Vp-p
75Q
Humidity:
20% ~ 80%
(GSYNC:
140.3Vp-p
75Q)
Supplied Accessories:
AC Cord (3 types)
B:
0.7+0.3Vp-p
75
Mounting kit (1 set)
H/HV:
0.3 ~ 6V, high impedance
Dimensions:
Height:
290 mm
(11 13/32 inch)
V:
0.3 ~ 6V, high impedance
Width:
576mm
(22 11/16 inch}
Screen Size:
3810 ~ 7620 mm (150 ~ 300 inch)
Depth:
606 mm (23 29/32 inch)
Throw Distance:
3810 mm (150 inch) Picture size:
Weight:
77 \|bs.
(35 kg)
4528 mm (178 1/4 inch)
;
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
