Model No.
Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully, and save this manual for future use.
J
Before using your projector, be sure to read "Read this first!" (
J
The information of these instructions are shared use with multiple models of EZ570 series, EW630 series,
EW530 series, EX600 series and EX500 series.
Lens is optional for the projectors that "L" follows in model number.
J

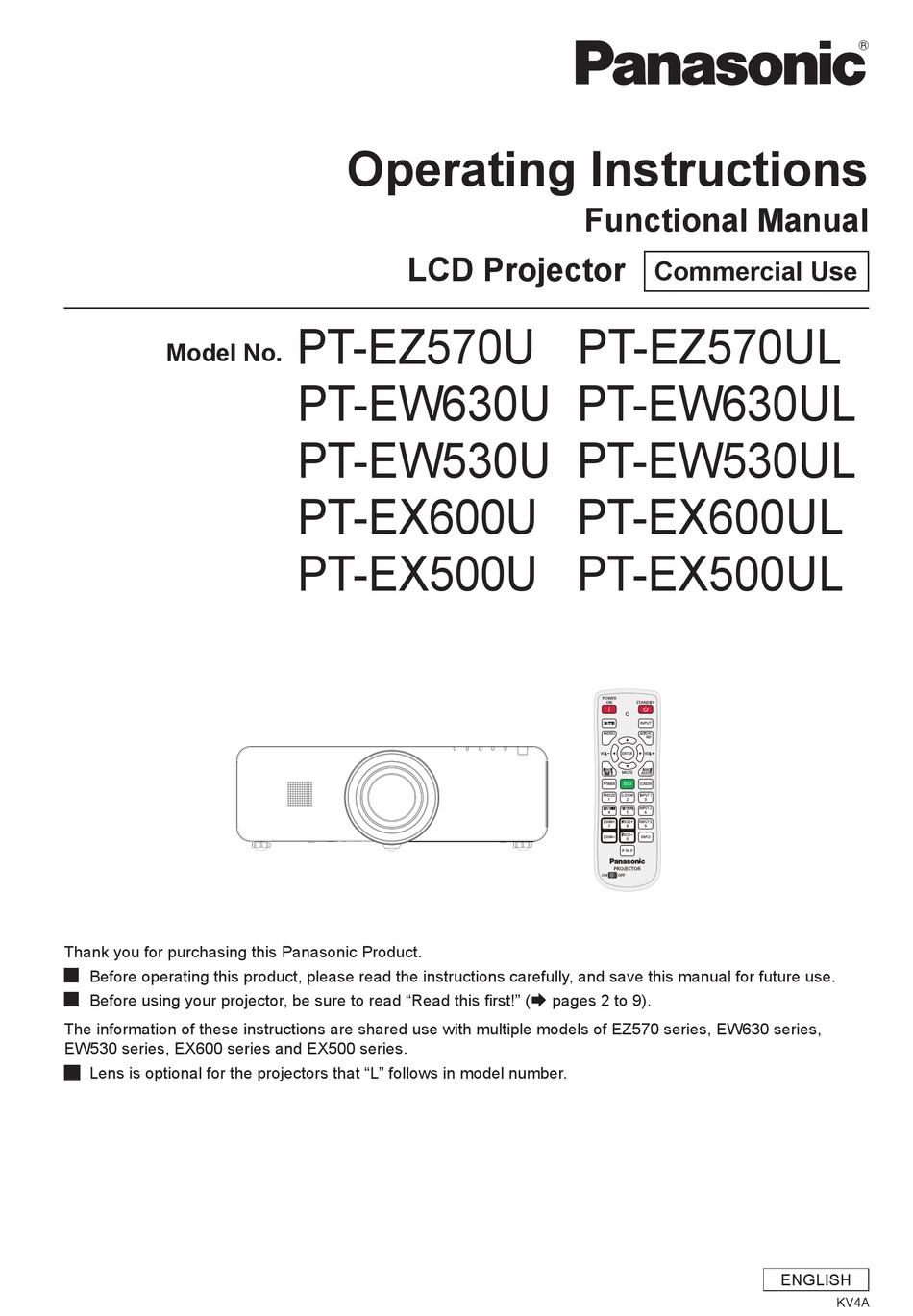

Operating Instructions
LCD Projector
PT-EZ570U PT-EZ570UL
PT-EW630U PT-EW630UL
PT-EW530U PT-EW530UL
PT-EX600U PT-EX600UL
PT-EX500U PT-EX500UL
Functional Manual
Commercial Use
Æ
pages 2 to 9).
ENGLISH
KV4A
