Swann AMI Oxytrace Quick Reference Manual

Swan AMI Oxytrace
Quick Reference Guide
Overview
Keys
Display
Swan Analytical
Australia Pacific
www.swan-analytical.com.au

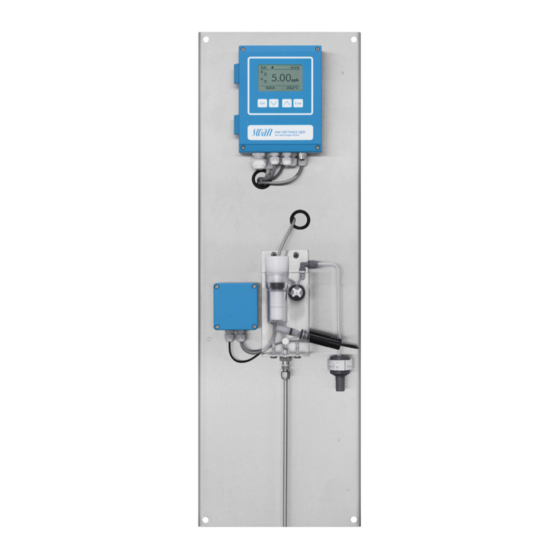

A – Panel
B – Transmitter
C – Oxygen Sensor
D – Flow sensor
E – Flow cell
F – Flow regulating valve
G – Sample outlet
H – Drain funnel
I – Sample inlet
A – to exit a menu or command (rejecting any changes) to move
back to the previous menu level
B – to move DOWN in a menu list and to decrease digits
C – to move UP in a menu list and to increase digits
D – to open a selected sub-menu to accept an entry
A – RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status of
signal outputs).
B – ERROR
Error
C – Keys locked, transmitter control via Profibus
D – Time
E – Process values
F – Sample temperature
G – Sample flow - 8 – 25 l/h
H – Relay status
Relay status, symbols
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
Fatal Error
