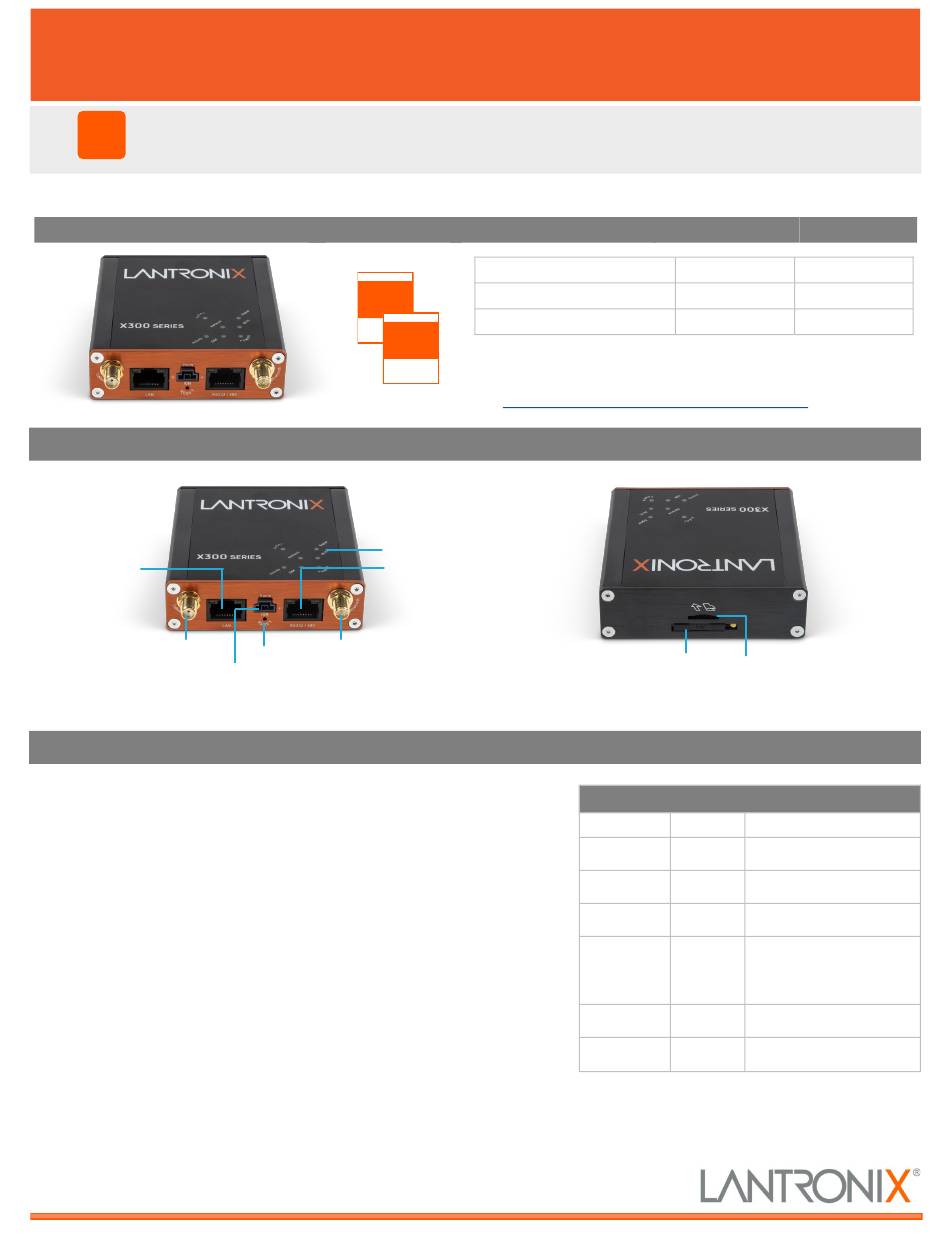

Lantronix X303 Quick Start Manual

X303 Quick Start Guide
!
Thank you for choosing Lantronix. Please register your product to receive notifications for firmware and
documentation updates at www.lantronix.com/product-registration.
X303
HARDWARE OVERVIEW
Ethernet LAN
Cellular
HARDWARE SETUP
1. Unbox and verify the contents.
2. To insert the optional SIM card, press the yellow SIM tray button (using a pen
tip or other similar object) to eject the SIM tray. Place the SIM card on the
SIM tray in the correct orientation. Gently push the SIM tray back into the
SIM slot. Note: Activate the SIM according to the vendor's instructions.
3. Attach the cellular antenna to its antenna connector and tighten it securely.
4. Attach the Wi-Fi / Bluetooth antenna to its antenna connector and tighten it
securely.
5. Connect the accessory power adapter; attach the 3-pin plug to the DC input
the device side and the other end to the power outlet.
6. Wait for the device to boot. The green POWER LED light will be on.
guides
Quick
Start
Front View
LEDs
RS-232
Reset Wi-Fi / Bluetooth
DC input
WHAT'S IN THE BOX
Accessory
Power supply
Cellular antenna
Wi-Fi / Bluetooth antenna
SIM
Insert
For additional accessories, visit
https://www.lantronix.com/products/x300-series/
1
IoT Cellular Gateway
Part number
ACC-520-0165-00
A31M0
A21H0
Back View
Optional microSD card
mini-SIM slot (not provided) slot
One embedded SIM is provided.
LEDs
ALERT Red Device alert
Activity Amber Cellular data activity
Network Amber Cellular network status
Signal Amber Cellular signal strength
- On: Embedded SIM in use
SIM Blue - Blink: External SIM in use
- Off: SIM not in use
Wi-Fi Blue Wi-Fi network status
POWER Green Power
(See X300 User Guide for details.)
quantity
1
1
1
SIM 1
