INSTALLATION MANUAL

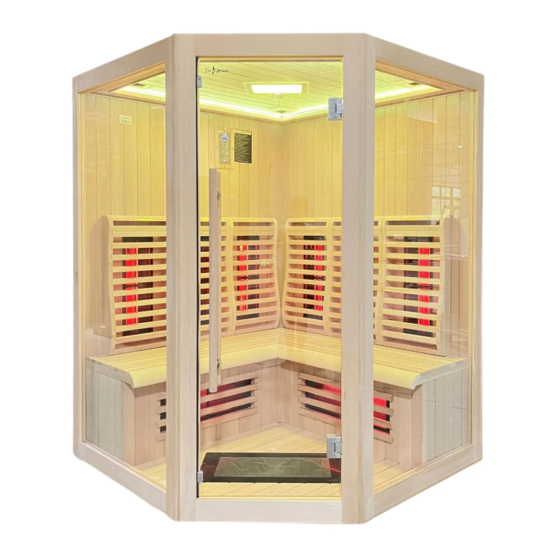

KY007 Infrared
Sauna Series
30 Day Technical Support:
Call 01908 317512 and request technical support for aiding your
installation.
Replacements Parts:
Inside of your warranty period visit:
https://www.insigniashowers.com, click support and make a
warranty claim.
Spares/Replacements Parts:
Outside of your warranty period
visit
https://www.insigniashowers.com/replacement-parts.html
ATTENTION INSTALLERS:
These instructions must be
left with the customer
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
Advertisement
Related Manuals for Insignia KY007 Series
Summary of Contents for Insignia KY007 Series
- Page 1 www.insigniashowers.com Last Modified: 03/10/2023 INSTALLATION MANUAL KY007 Infrared Sauna Series 30 Day Technical Support: Call 01908 317512 and request technical support for aiding your installation. Replacements Parts: Inside of your warranty period visit: https://www.insigniashowers.com, click support and make a warranty claim. Spares/Replacements Parts: Outside of your warranty period visit...
- Page 2 www.insigniashowers.com Last Modified: 03/10/2023 Contents Thank you for your purchase Back Rest Install Electrical & Tool requirements Door Handles Install Roof Install Box contents Connecting the Electrics Screw Pack Contents Securing the Roof Sauna Left Panel and Right Panel Install Securing the Roof Electrics Bench Heater Install Electrical Connections...
- Page 3 Last Modified: 03/10/2023 Thank you for your recent purchase of an Insignia Sauna. Please read this booklet with great care to ensure you get the best out of your build and have a Sauna that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
- Page 4 www.insigniashowers.com Last Modified: 03/10/2023 Electrical Requirements Model KY007 Tools Required Voltage Rating 220-240AC • Scissors Frequency Rating 50Hz • Knife Power Rating 3219 Watts Sauna • Spirit Level Total Amperage 13.4 amps • Tape Measure • Philips Screwdriver Indoor saunas with power consumption under 3KW have been designed for easy installation, •...
- Page 5 Bench Front Door Handle Bench Top Seat VERY IMPORTANT Have you got everything? If not please contact the Insignia directly on 01908 317 512. Remember NEVER book your tradesman until everything has arrived, been checked and is present. No replacement/missing parts can be obtained free of charge during or after the build.
- Page 6 ST 18mm Screws Wire Fixers Screw Covers VERY IMPORTANT Have you got everything? If not please contact the Insignia directly on 01908 317 512. Remember NEVER book your tradesman until everything has arrived, been checked and is present. No replacement/missing parts can be obtained free of charge during or after the build.
- Page 7 www.insigniashowers.com Last Modified: 03/10/2023 Step 1 — Installing the Left and Right Panels The panel connection brackets are shown. Lift panels and locate the interlocking connection brackets and push the panel down to secure into position. Locate both panels onto the wooden side of the base.
- Page 8 www.insigniashowers.com Last Modified: 03/10/2023 Step 2 — Installing the Bench Heater 4 x ST18mm Screws Using the ST 18mm screws found in the screw pack, connect the bench heater behind the bench frame as shown in the diagram.
- Page 9 www.insigniashowers.com Last Modified: 03/10/2023 Step 3 — Installing the Bench Front Panel Place the longer bench front into position by sliding into the groove. Next slide the shorter bench front into the groove. While holding in place, slot the side bench panels securing into the grooves of the bench fronts.
- Page 10 www.insigniashowers.com Last Modified: 03/10/2023 Step 4 — Connecting the Heater Wires 8 x ST50mm Screws Using the ST 50mm screws, secure the side bench panels in the eight corners. To connect the wires to the heaters behind the bench panel, locate the black power wire with multiple white wires attached which will connect to the left bench heater.
- Page 11 www.insigniashowers.com Last Modified: 03/10/2023 Step 5 — Installing the Glass Panels The panel connection brackets are shown. Lift panels and locate the interlocking connection brackets and push the panel down to secure into position.
- Page 12 www.insigniashowers.com Last Modified: 03/10/2023 Step 6 — Installing the Bench Seats Carefully slot the bench tops in place.
- Page 13 www.insigniashowers.com Last Modified: 03/10/2023 Step 7 — Installing the Back Rests 8 x ST70mm Screws Adjust and align all the 6 back rests in place before screwing using the ST 70mm screws. Use a drill to screw securely. Please ensure the protective film is removed from the heaters be- fore covering.
- Page 14 www.insigniashowers.com Last Modified: 03/10/2023 Step 8 — Installing the Door Handles Taking the door handle screws and nuts apart, remove the thread from the cylinder and tighten the nut within the cylinder to the wooden handle with the larger allen key.
- Page 15 www.insigniashowers.com Last Modified: 03/10/2023 Step 9 — Installing the Roof Carefully place the roof into the remaining space making sure it is resting on all sides of the fitted ledges.
- Page 16 www.insigniashowers.com Last Modified: 03/10/2023 Step 10 — Connecting the Electrics Connect the wires of the main power, control box, temperature control and ozone.
- Page 17 www.insigniashowers.com Last Modified: 03/10/2023 Step 11 — Securing the Roof 10 x ST 60mm Secure the roof by screwing in the ST 60mm screws.
- Page 18 www.insigniashowers.com Last Modified: 03/10/2023 Step 12 — Securing the Roof Wires 10 x ST12mm Use the rubber bands to secure the wires to the roof using the ST 12mm screws.
- Page 19 www.insigniashowers.com Last Modified: 03/10/2023 Step 12 — Electrical Connections 1. Main Power Supply 2. Group A : Connections for back and leg heater 3. Group B : Connections for front and side heater 4. Temperature Detector Wire 5. USB Input 6.
- Page 20 www.insigniashowers.com Last Modified: 03/10/2023 Control Panel Instructions Button 1/2 (Sauna Heaters) Press to activate Sauna heaters. Pressing once will put the heaters on at 100%. Twice = 90%. Three times = 80%. Four times = 70% and five times = Off. Button 3(Lights) Press to cycle through the coloured lights.
- Page 21 www.insigniashowers.com Last Modified: 03/10/2023 Audio Functions Radio Tuning: To tune the Radio hold ‘SET’ for two seconds to activate the menus. Press ‘SET’ to bring up manual tuning. Use the arrows to tune to your preferred station. To fast scroll hold the up or down arrow for two seconds. Alternatively, press ‘SET’ again to activate auto tuning then press the ‘Play/Pause’...
- Page 22 www.insigniashowers.com Last Modified: 03/10/2023 Remote Control Instructions...
- Page 23 www.insigniashowers.com Last Modified: 03/10/2023 Sauna Usage & Safety Guide Never leave children unattended in the Sauna. Regulate (if preferred) the temperature of sauna before session - Pre-heat time 15-30 minutes (from room temperature 20c) Never touch the heater panels whilst in operation, possible burning may occur. Recommended time of use is a maximum of 15 mins initially.
- Page 24 (EEE) have to fulfil certain obligations. Under the WEEE directive Insignia is considered the producer of certain products we supply and in line with the demands of the legislation we are pleased to offer the op- portunity to return these products to us for treatment and recycling.
- Page 25 www.insigniashowers.com Last Modified: 03/10/2023...
