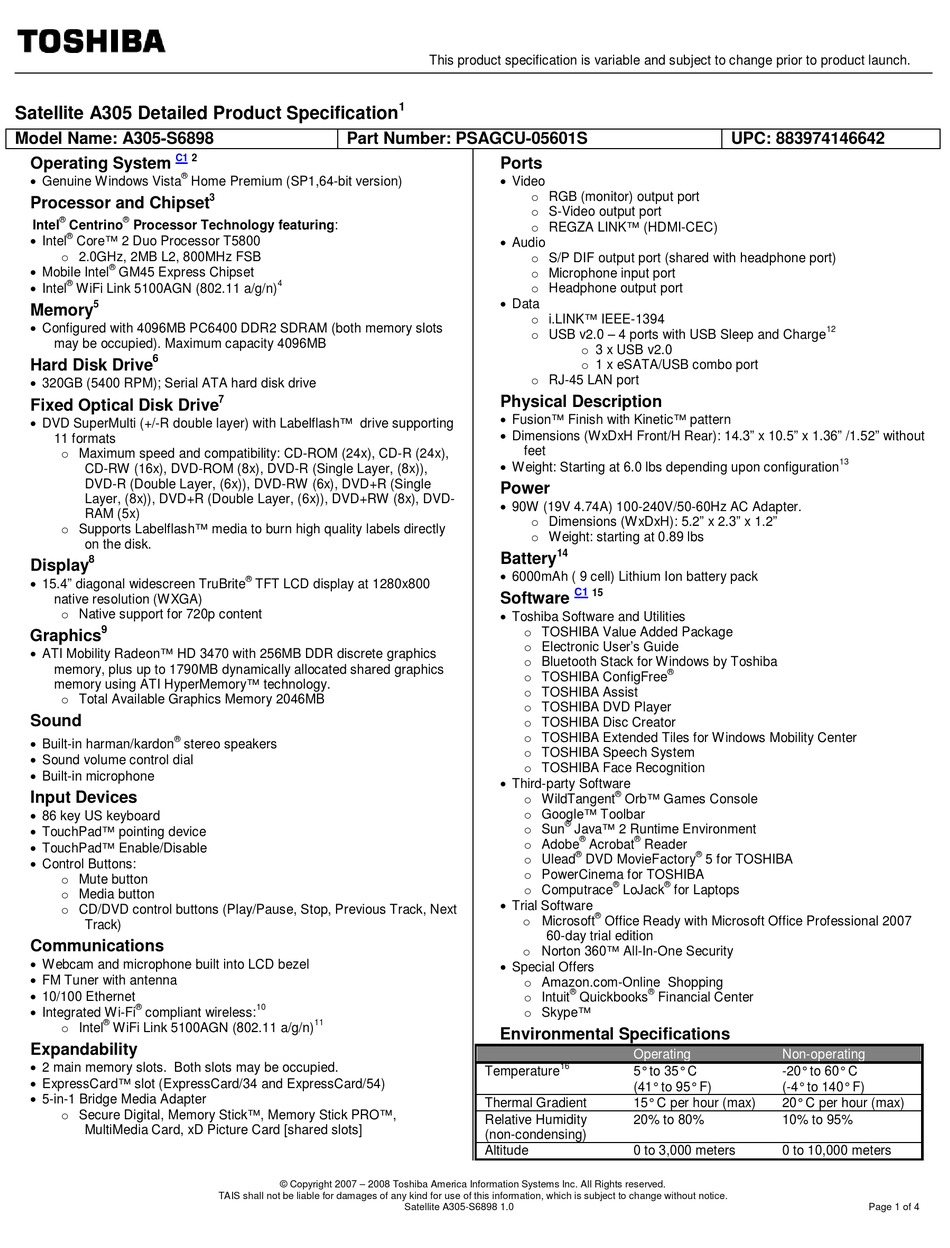

Toshiba Satellite A305-S6898 Specifications

Satellite A305 Detailed Product Specification
Model Name: A305-S6898
C1 2
Operating System
®
 Genuine Windows Vista Home Premium (SP1,64-bit version)
Processor and Chipset
® ®
Intel Centrino Processor Technology featuring:
®
 Intel Core™ 2 Duo Processor T5800
o 2.0GHz, 2MB L2, 800MHz FSB
®
 Mobile Intel GM45 Express Chipset
®
 Intel WiFi Link 5100AGN (802.11 a/g/n)
5
Memory
 Configured with 4096MB PC6400 DDR2 SDRAM (both memory slots
may be occupied). Maximum capacity 4096MB
6
Hard Disk Drive
 320GB (5400 RPM); Serial ATA hard disk drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) with Labelflash™ drive supporting
11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (16x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
o Supports Labelflash™ media to burn high quality labels directly
on the disk.
8
Display
 15.4" diagonal widescreen TruBrite
native resolution (WXGA)
o Native support for 720p content
9
Graphics
 ATI Mobility Radeon™ HD 3470 with 256MB DDR discrete graphics
memory, plus up to 1790MB dynamically allocated shared graphics
memory using ATI HyperMemory™ technology.
o Total Available Graphics Memory 2046MB
Sound
®
 Built-in harman/kardon stereo speakers
 Sound volume control dial
 Built-in microphone
Input Devices
 86 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Mute button
o Media button
o CD/DVD control buttons (Play/Pause, Stop, Previous Track, Next
Track)
Communications
 Webcam and microphone built into LCD bezel
 FM Tuner with antenna
 10/100 Ethernet
®
 Integrated Wi-Fi compliant wireless:
®
o Intel WiFi Link 5100AGN (802.11 a/g/n)
Expandability
 2 main memory slots. Both slots may be occupied.
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 5-in-1 Bridge Media Adapter
o Secure Digital, Memory Stick™, Memory Stick PRO™,
MultiMedia Card, xD Picture Card [shared slots]
Part Number: PSAGCU-05601S
3
4
7
®
TFT LCD display at 1280x800
10
11
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
Ports
 Video
o RGB (monitor) output port
o S-Video output port
o REGZA LINK™ (HDMI-CEC)
 Audio
o S/P DIF output port (shared with headphone port)
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
o USB v2.0 – 4 ports with USB Sleep and Charge
o RJ-45 LAN port
Physical Description
 Fusion™ Finish with Kinetic™ pattern
 Dimensions (WxDxH Front/H Rear): 14.3" x 10.5" x 1.36" /1.52" without
feet
 Weight: Starting at 6.0 lbs depending upon configuration
Power
 90W (19V 4.74A) 100-240V/50-60Hz AC Adapter.
o Dimensions (WxDxH): 5.2" x 2.3" x 1.2"
o Weight: starting at 0.89 lbs
14
Battery
 6000mAh ( 9 cell) Lithium Ion battery pack
C1
Software
 Toshiba Software and Utilities
o TOSHIBA Value Added Package
o Electronic User's Guide
o Bluetooth Stack for Windows by Toshiba
o TOSHIBA ConfigFree
o TOSHIBA Assist
o TOSHIBA DVD Player
o TOSHIBA Disc Creator
o TOSHIBA Extended Tiles for Windows Mobility Center
o TOSHIBA Speech System
o TOSHIBA Face Recognition
 Third-party Software
o WildTangent
o Google™ Toolbar
®
o Sun Java™ 2 Runtime Environment
o Adobe
®
o Ulead
o PowerCinema for TOSHIBA
o Computrace
 Trial Software
o Microsoft
60-day trial edition
o Norton 360™ All-In-One Security
 Special Offers
o Amazon.com-Online Shopping
®
o Intuit
o Skype™
Environmental Specifications
16
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
Satellite A305-S6898 1.0
UPC: 883974146642
o 3 x USB v2.0
o 1 x eSATA/USB combo port
15
®
®
Orb™ Games Console
® ®
Acrobat Reader
®
DVD MovieFactory 5 for TOSHIBA
® ®
LoJack for Laptops
®
Office Ready with Microsoft Office Professional 2007
®
Quickbooks Financial Center
Operating
5° to 35° C
(41° to 95° F)
15° C per hour (max)
20% to 80%
0 to 3,000 meters
12
13
Non-operating
-20° to 60° C
(-4° to 140° F)
20° C per hour (max)
10% to 95%
0 to 10,000 meters
Page 1 of 4
