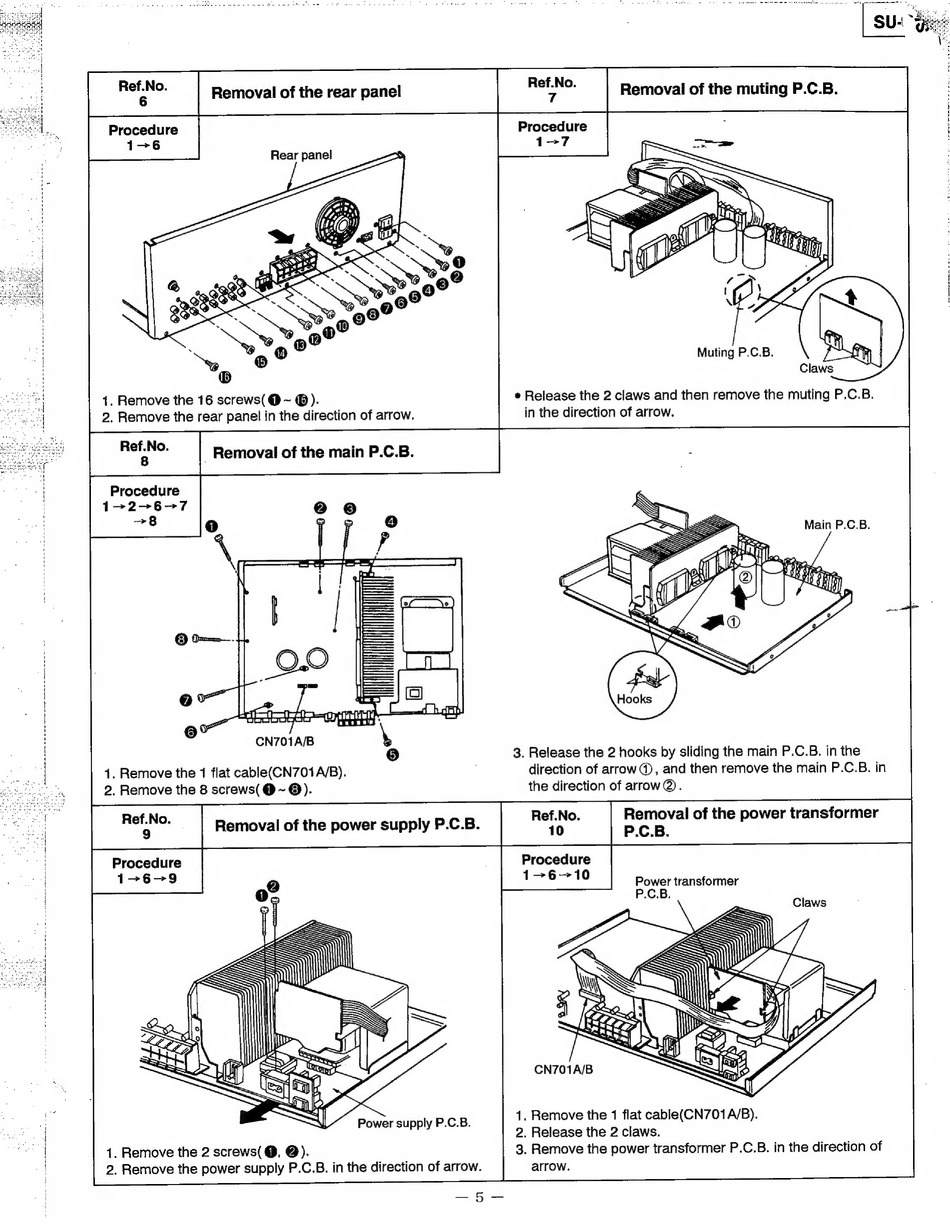

Ref.No.
6
Procedure
1-6
Muting P.C.B.
e Release the 2 claws and then remove the muting P.C.B.
1. Remove the 16 screws(@~ @).
2. Remove the rear panel in the direction of arrow.
in the direction of arrow.
CN701A/B
8
3. Release the 2 hooks by sliding the main P.C.B. in the
direction of arrow @, and then remove the main P.C.B. in
1. Remove the 1 flat cable(CN701A/B).
2. Remove the 8 screws( @~ @).
the direction of arrow@.
CN701A/B
1. Remove the 2 screws(@, @).
2. Remove the power supply P.C.B. in the direction of arrow.
arrow.
