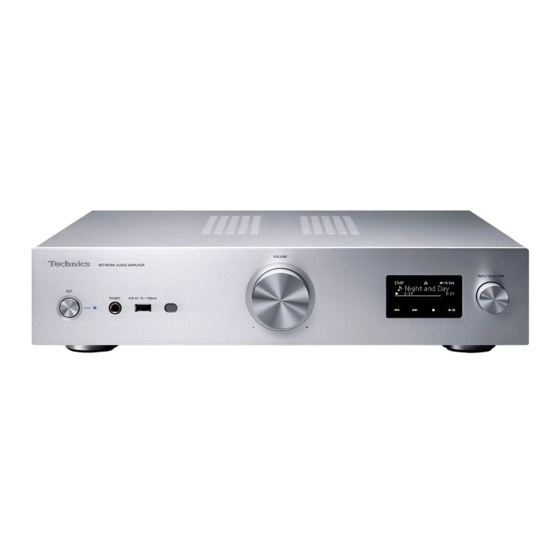

Technics SU-GX70 Owner's Manual
Network audio amplifier
Hide thumbs
Also See for SU-GX70:
- User manual ,
- Operating instructions manual (134 pages) ,
- Basic operation instructions (24 pages)
Related Manuals for Technics SU-GX70
Summary of Contents for Technics SU-GX70
-
Page 1: Fm Indoor Antenna

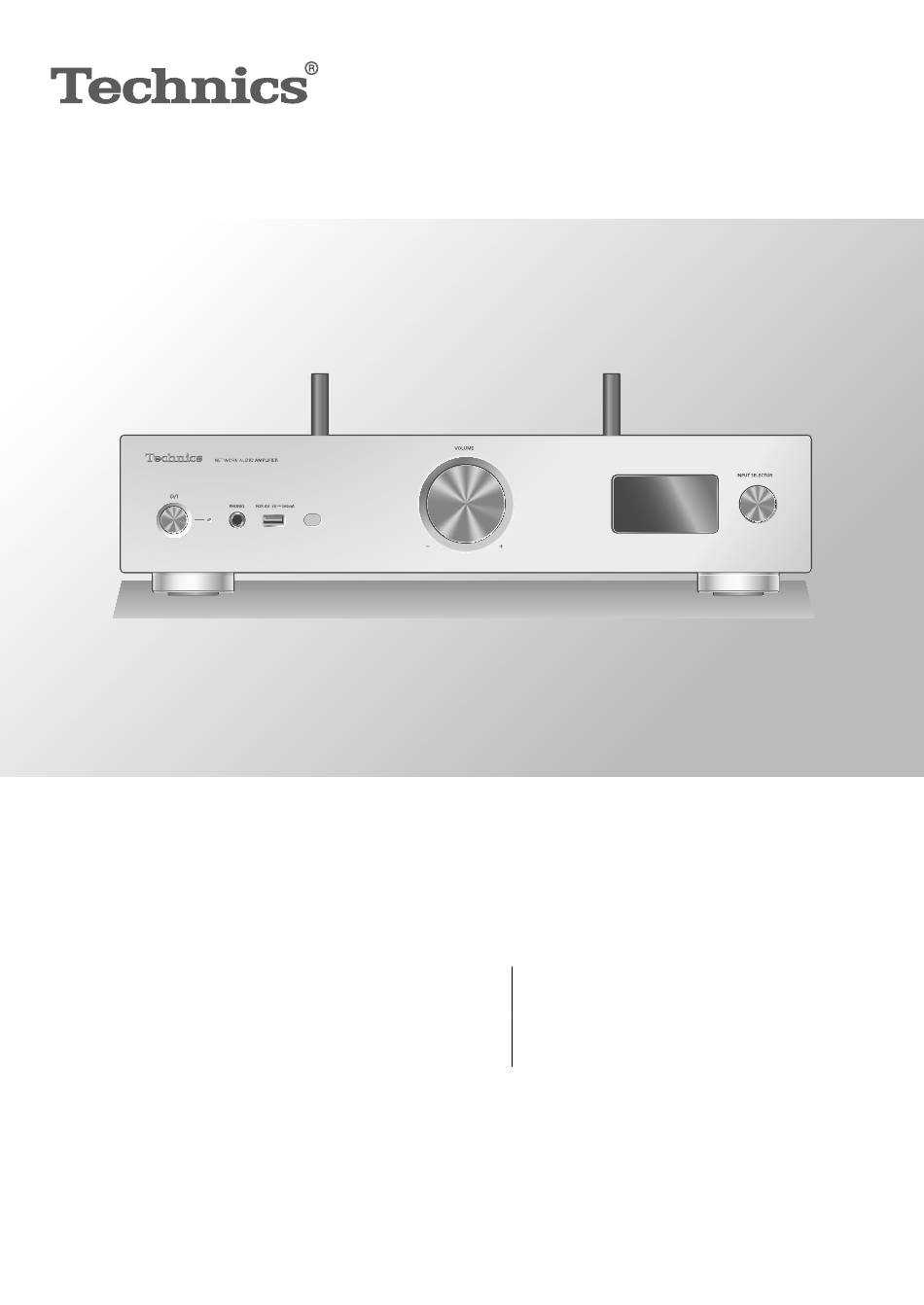

SU-GX70 Network Audio Amplifier Owner’s Manual Amplificateur réseau audio Manuel d’utilisation... -
Page 2: K2Cg3Yy00219 Rsax0002 N2Qaya000239 Control
Music is borderless and timeless, touching people’s hearts across cultures and generations. Each day the discovery of a truly emotive experience from an unencountered sound awaits. Let us take you on your journey to rediscover music. Sans frontières, la musique est aussi intemporelle, touchant le coeur des gens en traversant les cultures et les générations. - Page 3 Delivering the Ultimate Emotive Musical Experience to All At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music. We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them.
-
Page 4: Table Of Contents
• A more detailed operating instruction is available in “Operating Instructions” (PDF format). To read it, download it from the website. www.technics.com/support/downloads/oi/SU-GX70.html • You will need Adobe Reader to browse or print “Operating Instructions” (PDF format). You can download and install a version of Adobe Reader that you can use with your OS from the following website. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before AC power supply cord using the unit. Follow the safety instructions on the • The power plug is the disconnecting device. unit and the applicable safety instructions listed below. I nstall this unit so that the power plug can be Keep these operating instructions handy for future unplugged from the socket outlet immediately. - Page 6 (2) this device Supplier’s Declaration of Conformity must accept any interference received, including Trade Name: Technics interference that may cause undesired operation. Model No.: SU-GX70 FCC ID: ACJ-SU-GX70 Responsible Party: I C: 216A-SUGX70 Panasonic Corporation of North America Two...
-
Page 7: Installation
Using “Technics Audio Center” If you install the dedicated app “Technics Network services Audio Center” (free of charge) on your tablet/ smartphone, you can stream music files from... -
Page 8: Control Reference Guide
• You can connect a USB device to the unit and play back music stored on the USB device. • You can connect the USB flash memory with new firmware and update the firmware for this unit. For details, refer to the following website. www.technics.com/support/firmware/... - Page 9 This unit (rear) 01 Analogue audio input terminals (PHONO) 08 Optical digital input terminal You can connect the turntable with PHONO (OPT1/OPT2) cable (not supplied) to this unit and play back You can connect a digital audio output music. device, etc. with optical digital audio cable (not supplied) and play back music.
- Page 10 Control reference guide (Continued) Remote control 01 [ ]: Standby/on switch • Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 02 [USB]/[RADIO]/[ -PAIRING]: Select the device to be operated (...
-
Page 11: Connections
Connections Basic Connecting HDMI equipment FM antenna connection with ARC function Adhesive tape (not supplied) FM ANT terminal HDMI cable (not supplied) Insert the antenna plug to be connected all the way in. FM indoor antenna (supplied) • Tape the antenna to a wall or column at the TV, etc. - Page 12 Note PHONO cable • This unit is not displayed as the output (not supplied) speakers on “Technics Audio Center” app, etc. after setting. • Playback of the online music streaming services, music files from network devices, etc. cannot be available while “Pure Amplification”...
- Page 13 Basic Speaker connection AC mains lead connection Connect only after all other connections are completed. AC IN terminal AC mains lead (supplied) To a household mains socket Speaker cable Speaker cable (not supplied) (not supplied) • Use only the supplied AC mains lead. •...
-
Page 14: Network Settings
• In order to fully enjoy all the features the SU-GX70 has to offer, it has been designed to work with the Google Home app which (Using Apple Home app) integrates with your Google account. 1 Install Apple Home app on your •... - Page 15 LAN cable must be connected or disconnected. Note • Use category 7 or above straight LAN cables • This unit will be displayed as “Technics-SU- (STP) when connecting to peripheral devices. GX70- ” if the device name is not set.
- Page 16 Network settings (Continued) Basic ■ Using the WPS PIN code Setting the network from the setup “WPS PIN” menu (When not using apps with If your wireless router supports WPS, you can this unit) set up a connection by entering the WPS PIN code.
- Page 17 Not all music streaming services are available Note in all countries/regions. Registration/ subscription may be required, or fees may • This unit will be displayed as “Technics-SU- be charged to use music streaming services. GX70- ” if the device name is not set.
-
Page 18: Playback
Playback Basic Playing back music files on the Listening to FM Radio media server ■ Storing FM stations You can share music files stored in the media server (PC, Network Attached Storage, etc.) You can preset up to 30 channels. connected to your home network, and enjoy the •... - Page 19 ” stands **** **** 1 Press [MENU]. for a character that is unique to each set.) may be displayed before “Technics-SU- 2 Press [ ], [ ] repeatedly to select GX70- ” is displayed. **** “Disconnect?” and then press [OK].
-
Page 20: Licenses
Licenses FLAC Decoder Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson Redistribution and use in source and binary forms, The Wi-Fi CERTIFIED™ Logo is a certification with or without modification, are permitted mark of Wi-Fi Alliance ®... -
Page 21: Specifications
Specifications ■ GENERAL ■ TUNER SECTION AC 120 V, Frequency Modulation (FM) Power supply 60 Hz Preset memory 30 stations Power consumption 63 W 87.9 MHz to 107.9 MHz (200 kHz step) Power consumption Frequency range 87.5 MHz to 108.0 MHz in standby mode 2.0 W (100 kHz step) - Page 22 Specifications (Continued) ■ FORMAT SECTION USB-B (Rear) Type B Connector USB-A Ethernet interface USB 2.0 High-speed (100BASE-TX/10BASE-T) USB Standard USB Mass Storage class LINE IN ×2 (Pin Jack) Analogue Input PHONO (MM) (Pin Jack) USB-B Analogue Output PRE OUT (Pin Jack) USB 2.0 High-speed USB Standard USB Audio Class 2.0,...
- Page 23 Others Limited Warranty (ONLY FOR U.S.A.) Technics Products – Limited Warranty THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED Limited Warranty Coverage UNDER “LIMITED WARRANTY COVERAGE”. (For USA Only) THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR If your product does not work properly because of a defect in...
- Page 24 3 (three) years parts and labour This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
- Page 25 Panasonic Corporation of North America Panasonic Canada Inc. Two Riverfront Plaza, Newark, NJ 07102-5490 5770 Ambler Drive, http://www.panasonic.com Mississauga, Ontario, L4W 2T3 www.panasonic.com En Cf © Panasonic Corporation 2023 TQBM0839 Printed in Malaysia M0323YY0 Imprimé en Malaisie...
